5
Power Disconnect
Install a suitable means to disconnect power from
the unit for service. This disconnect should be
weather resistant and meet any and all local codes.
In the absence of local codes, the National Electrical
Code should be followed. Refer to the Use and Care
Manual for instructions in connecting the power to
the water heater.
Thermostat Wiring
A hole is provided for the Thermostat wire(s).
Route the wire through the hole and connect
the wire to the water heater according to the
instructions in the Use and Care Manual.

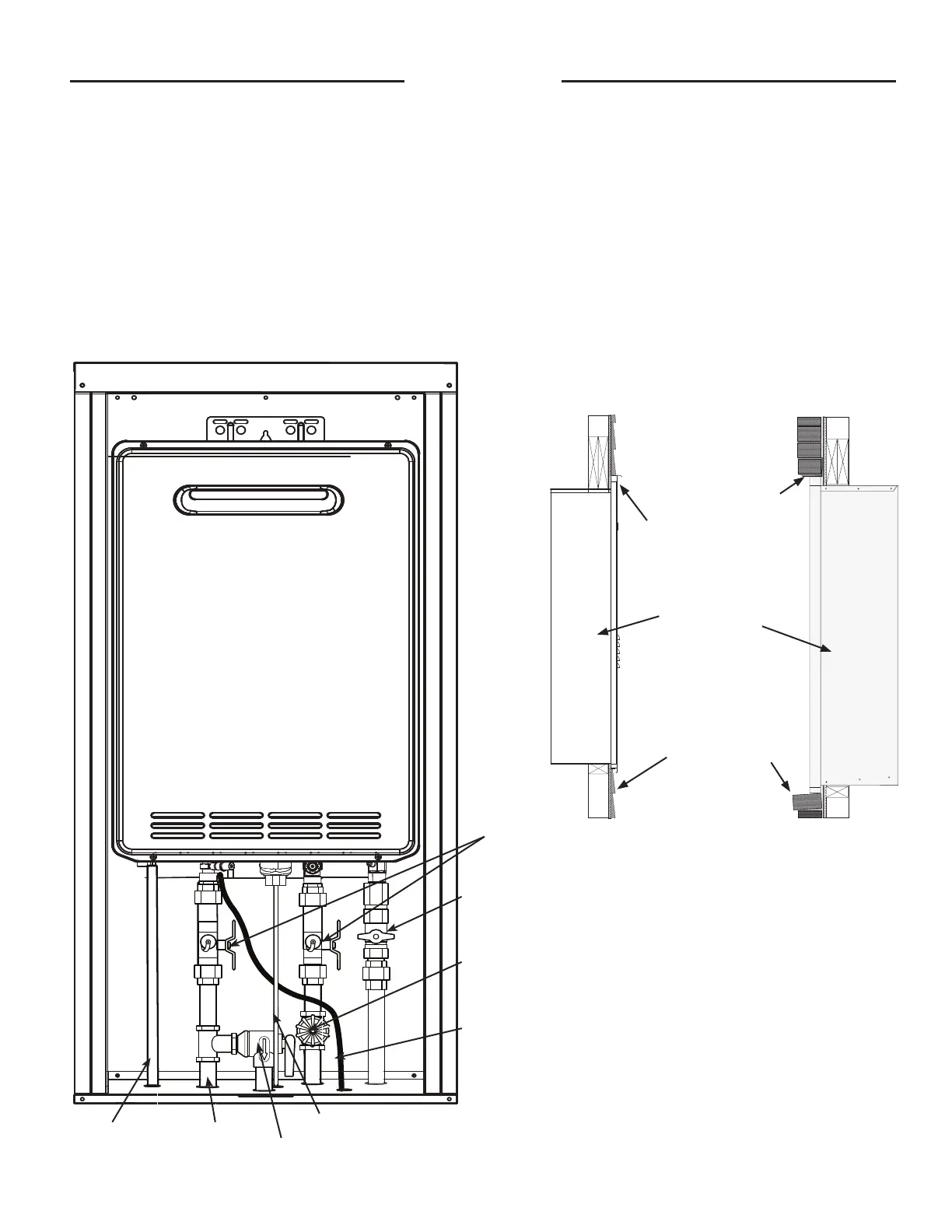

Typical Installation and Finish-
Side View
Drip Ledge
Siding or Brick
Recess Box
Side View
Brick Lintel
Lap Siding Brick Siding
Installation
Typical Installation and Finish-
Front View
Manual Gas
Shut off Valve
Cold Water
Supply Shut off
Valve
Power Supply
Remote Control Wire
Service Valve
Relief Valve
Condensate
Drain
Hot Water
Supply
