Rheem GHE80-300 - BACnet Configurations - Navigating Settings; Selecting Settings Icon for BACnet; Selecting BACnet Option on Display

BACnet Configurations
Triton Service Manual SVC1020T ; Rev 4
80 and 100 gallon chassis

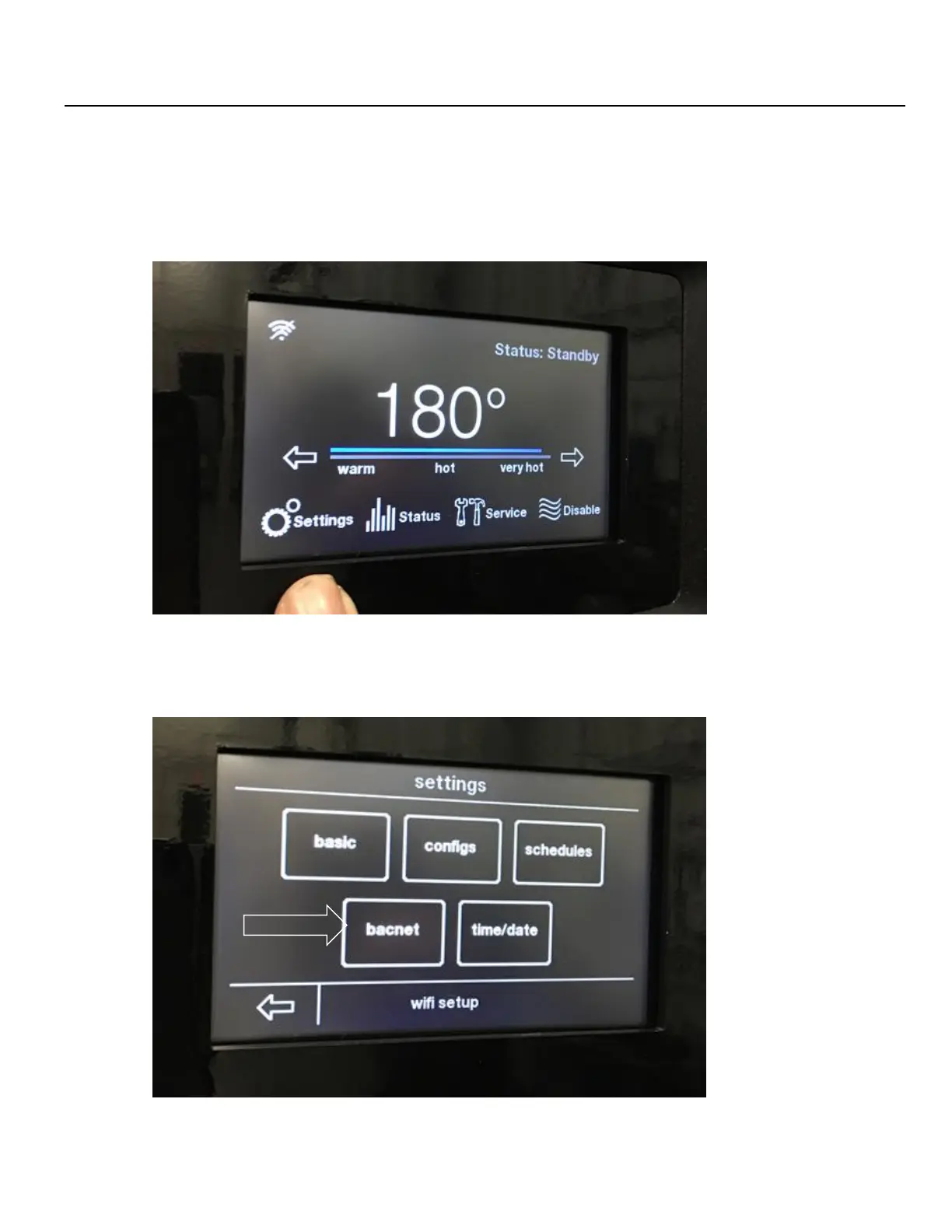

• To access the menu containing BACnet configurations, the caller will select the “settings” icon in the
bottom left of their display screen as pictured below.
• From this screen he or she will select “BACnet” on the second row of icons
56
