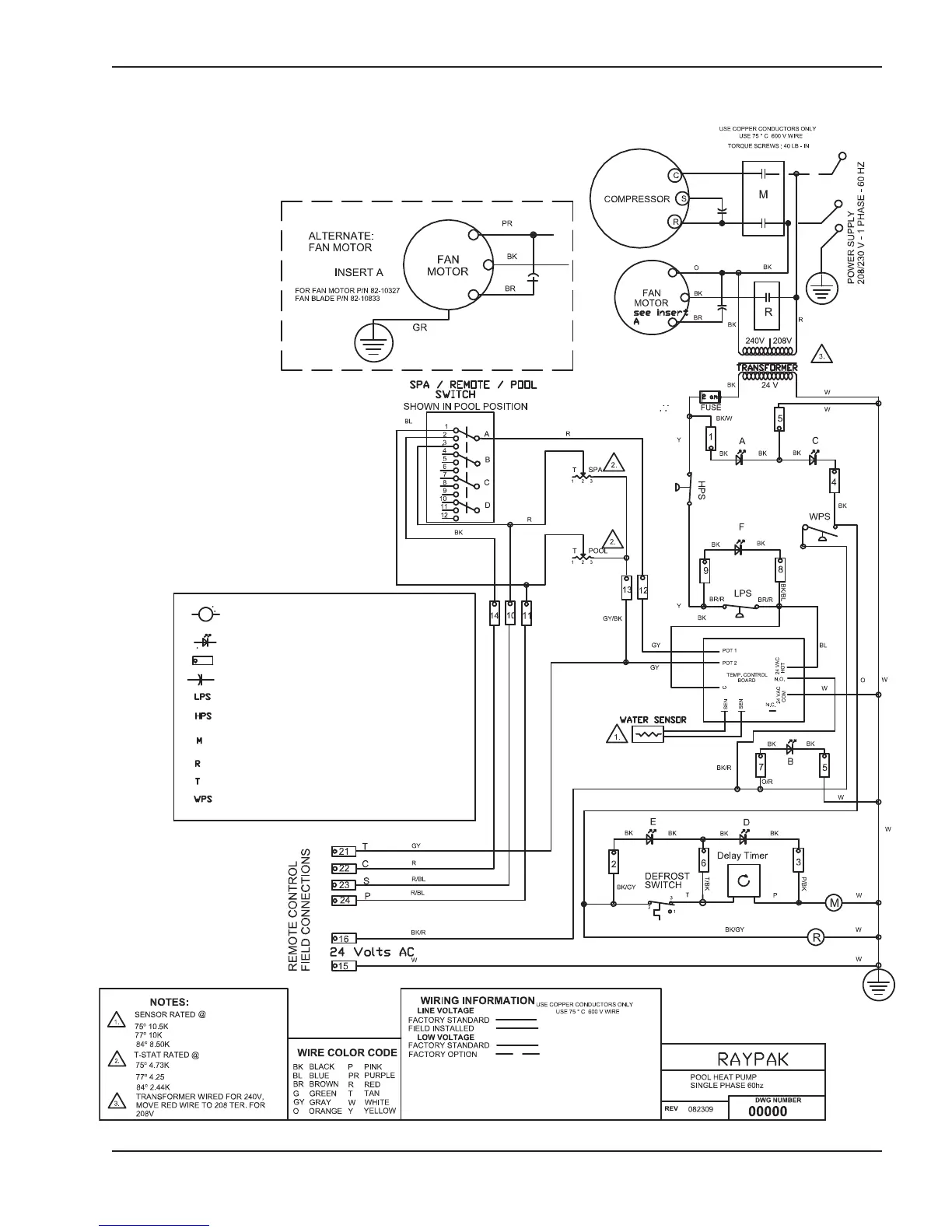

USE TERMINALS 21 & 22 TO ATTACH 2-WIRE CONTROL SYSTEMS THAT HAVE
THEIR OWN SENSORS FOR TEMPERATURE CONTROL.
USE TERMINALS 22, 23 & 24 TO ATTACH 3-WIRE CONTROL SYSTEMS THAT
UTILIZE OUR TEMPERATURE SENSOR FOR TEMPERATURE CONTROL.
TO ENGAGE AN EXTERNAL CONTROL SYSTEM, PUT THE POOL-REMOTE-SPA
SWITCH IN THE REMOTE POSITION.
C
OIL
[CONTACTOR, FAN RELAY]
LED
TER. STRIP
CAPACITOR
LOW PRESSURE SWITCH
HIGH PRESSURE SWITCH
COMPRESSOR
CONTACTOR
FAN RELAY
T-STAT
WATER PRESSURE SWITCH
A POWER AMBER
B HEAT GREEN
C WATER GREEN
D DECOMPRESSOR AMBER
E DEFROST RED
F L/P SWITCH RED
LEGEND
L E D’S
