Rheem OBF Series - OIL BURNER DATA

22

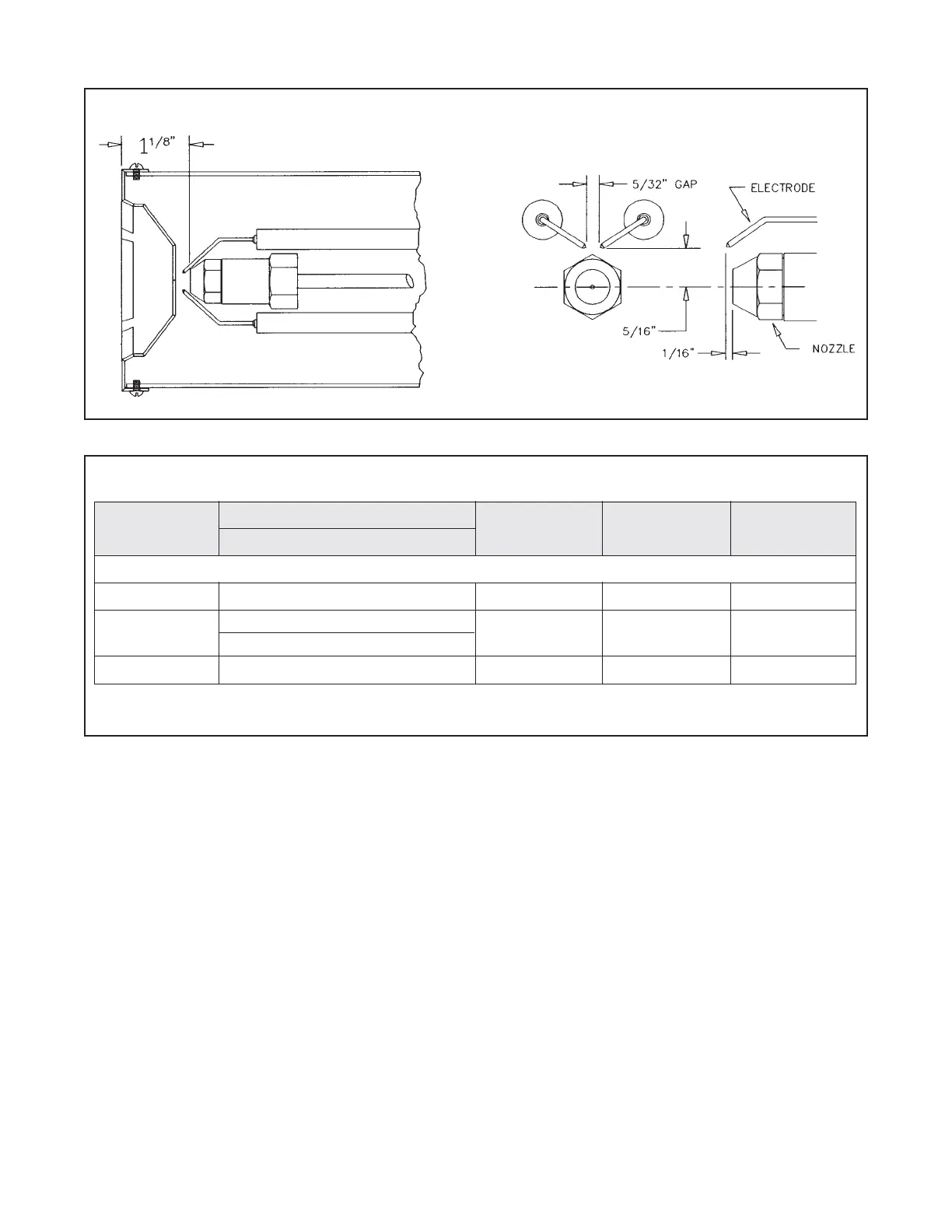

FIGURE 31
BECKETT MODEL “AFG” BURNER
OIL BURNER DATA
TABLE 9
DRAWER ASSEMBLY DATA
UNIT SIZE
NOZZLE*
G.P.H./ANGLE/PATTERN
END
CONE
STATIC DISC RATING
-067
-112
-150
*NOTE: This appliance should only be used with specified Delavan or Del-O-Flo nozzles. Use of other nozzles may result
in unsatisfactory performance.
DEL-O-FLO (.50, .65) -70°B
DELAVAN (1.0) -70°B
DEL-O-FLO (.75, .85) -70°B
DELAVAN (1.2, 1.35) -70°B
F0
F3
F6
3-3/8” SOLID
2-3/4” SOLID
3-3/8” SOLID
AF**JY
AF**XN
AF**JZ
BECKETT MODEL “AFG” BURNER
