Rheem Prestige RGFE-09EZCMS User Manual

5

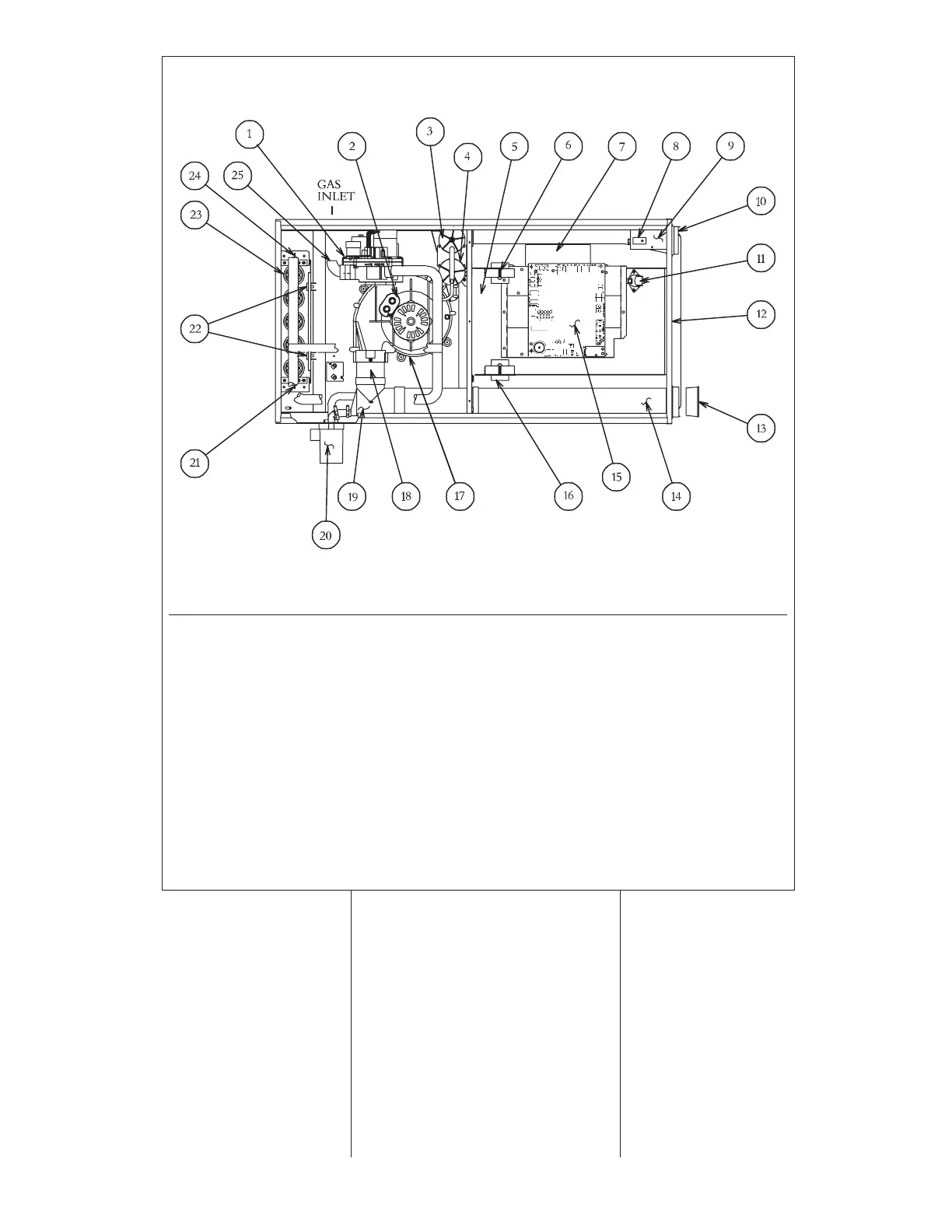

➤ FIGURE 3
H
ORIZONTAL FURNACE (-)GJD
ITEM
NO. PART NAME
1 GAS VALVE
2 CAPACITOR (FOR INDUCER)
3 LOW PRESSURE SWITCH
4 HIGH PRESSURE SWITCH
5 BLOWER HOUSING
6 POWER FACTOR CHOKE
7 BLOWER MOTOR
8 DOOR SWITCH
9 JUNCTION BOX
10 COMBUSTION AIR INLET
11 HALC
12 TOP PLATE
13 VENT CAP PLUG
ITEM
NO. PART NAME
14 OUTLET AIR PIPE
15 INTEGRATED FURNACE CONTROL
16 TRANSFORMER
17 INDUCED DRAFT BLOWER
18 CONNECTOR
19 EXHAUST TRANSITION
20 CONDENSATE TRAP
21 IGNITER
22 OVERTEMPERATURE SWITCH
23 BURNER
24 FLAME SENSOR
25 FACTORY-INSTALLED STREET ELBOW
ST-A107801.S01

Rheem Prestige RGFE-09EZCMS Specifications

General

Brand	Rheem
Model	Prestige RGFE-09EZCMS
Category	Furnace
Language	English
