26

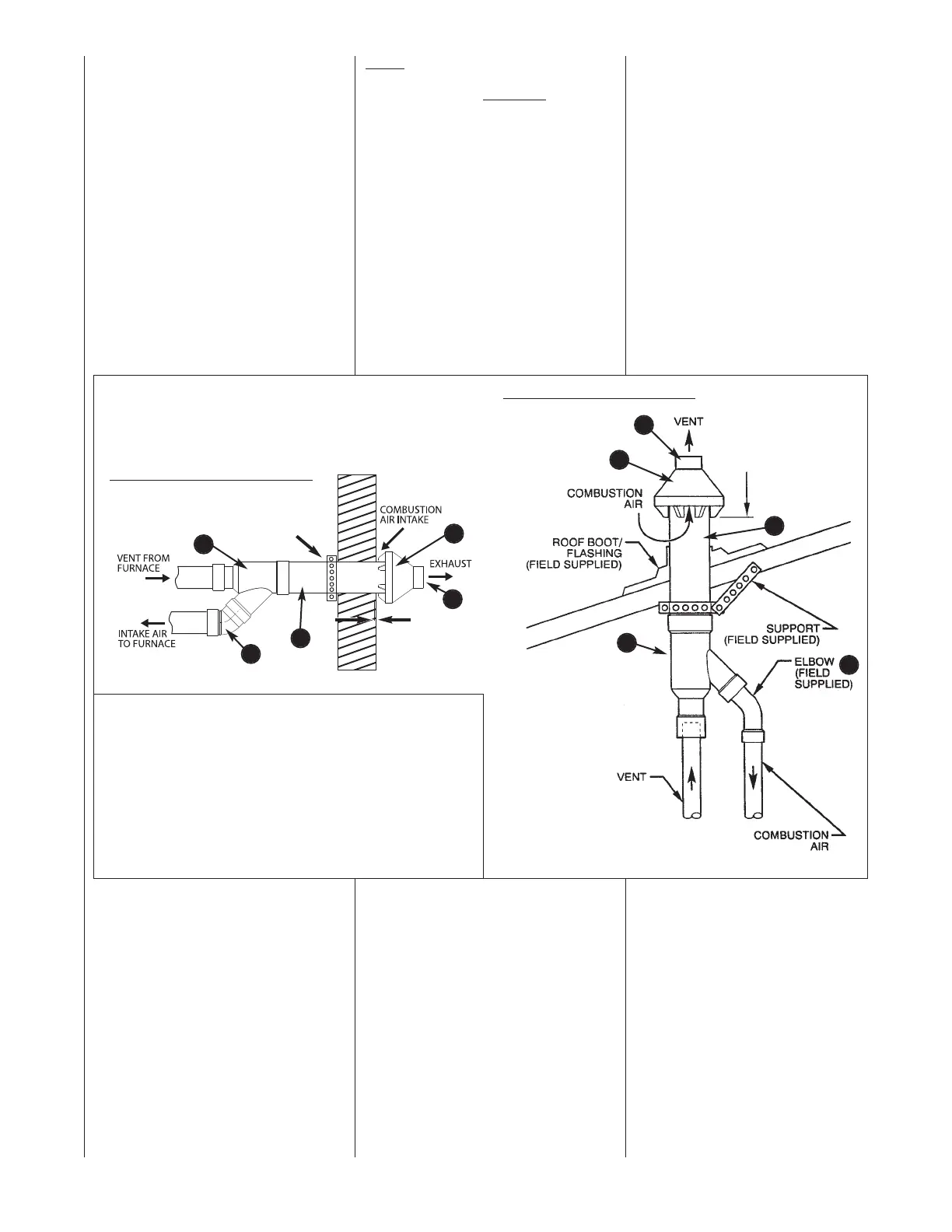

FIGURE 18
CONCENTRIC VENT KIT NO. (-)XGY-E03A
SIDEWALL ASSEMBLY
ROOF INSTALLATION
1" MAXIMUM
FIELD-SUPPLIED
STRAP
ITEM No. DESCRIPTION
A 2.5" PVC PIPE SCHEDULE 40 -- 37.125" LONG
B4" PVC PIPE SCHEDULE 40 -- 24" LONG
C3" x 3" x 4" SPECIAL CONCENTRIC FITTING
D3" x 45° STREET ELBOW (FIELD SUPPLIED)
E PVC RAINCAP
E
B
A
C
D
E
B
A
C
D
CONCENTRIC
TERMINATIONS
VERTICAL/HORIZONTAL
CONCENTRIC VENT
KIT NO. (-)XGY-E03A
This kit is for vertical/horizontal
intake air/vent runs and may be
installed through roofs or sidewalls.
One 5” diameter hole is required for
the installation. See Figure 18 for
the general layout. Complete
installation instructions are included
with the kit.
MAINTAIN 12 IN.
MINIMUM CLEARANCE
ABOVE HIGHEST
ANTICIPATED SNOW
LEVEL. MAXIMUM OF
24 IN. ABOVE ROOF.
NOTE: • Support must be field installed
to secure termination kit to structure.
• No screens may be used to cover
combustion air and exhaust.
NOTE: The following IPEX brand
concentric termination (System 636)
may be purchased in the field
and
used in place of factory supplied kits:
3” Concentric Kit – Item # 196006
