Rheem RKNL 13 SEER (3-5 TONS) SERIES - UNIT DIMENSIONS

5

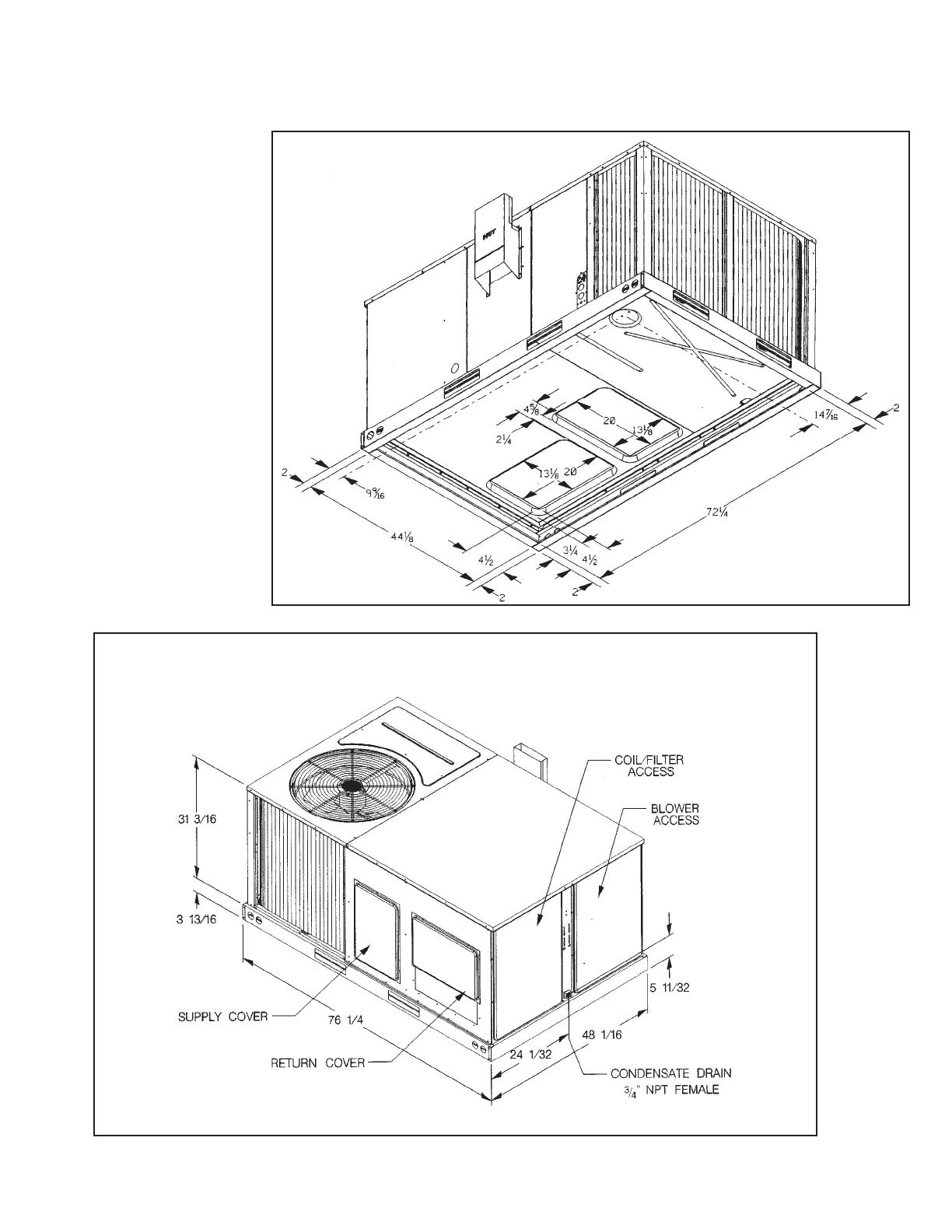

FIGURE 1
BOTTOM VIEW
FIGURE 2
CABINET DIMENSIONS AND ACCESS LOCATIONS
VI. UNIT DIMENSIONS
FOR CLEARANCES
SEE FIGURE 7.
IMPORTANT: THIS UNIT
MUST BE MOUNTED
LEVEL IN BOTH DIREC-
TIONS TO ALLOW WATER
TO DRAIN FROM THE CON-
DENSER SECTION AND
CONDENSATE PAN.
