Fig5 Then fix the appliance with nail in another hole, to make sure the whole appliance is
installed on firm.

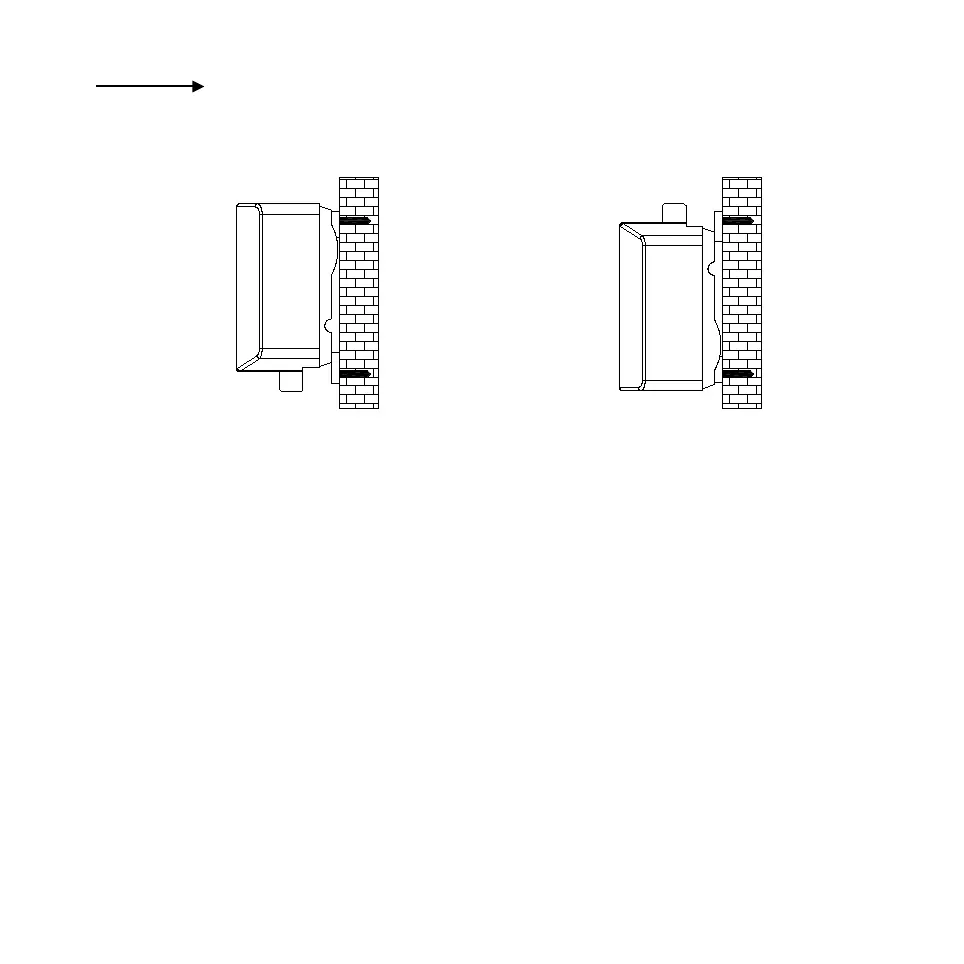

Fig 5-A: Upward Installation FIG 5-B: Upside down Installation
●Water Connections
1--- All water pipe must comply with national and applicable state and local water pipe codes.
2--- No matter install the appliance upright or handstand, Please connect the inlet connection (blue arrow
points to) to the cold water inlet pipe; connect the outlet connection (red arrow points to) to the hot water
outlet pipe .
3---The unit should be connected directly to the main water supply. Flush pipe with water to remove any
debris or loose particles. Following pics is for your reference.
4, It is required that use G1/2” water connections to fit the appliance. Please connect the inlet and outlet
pipe in perspective. Following pictures are for your reference.
5, Please remember to install rubber seal rings at the connections. When all water connections are
completed, check for leaks and take corrective action before proceeding.
