INSTALLATION – SOLAR STORAGE TANK
22

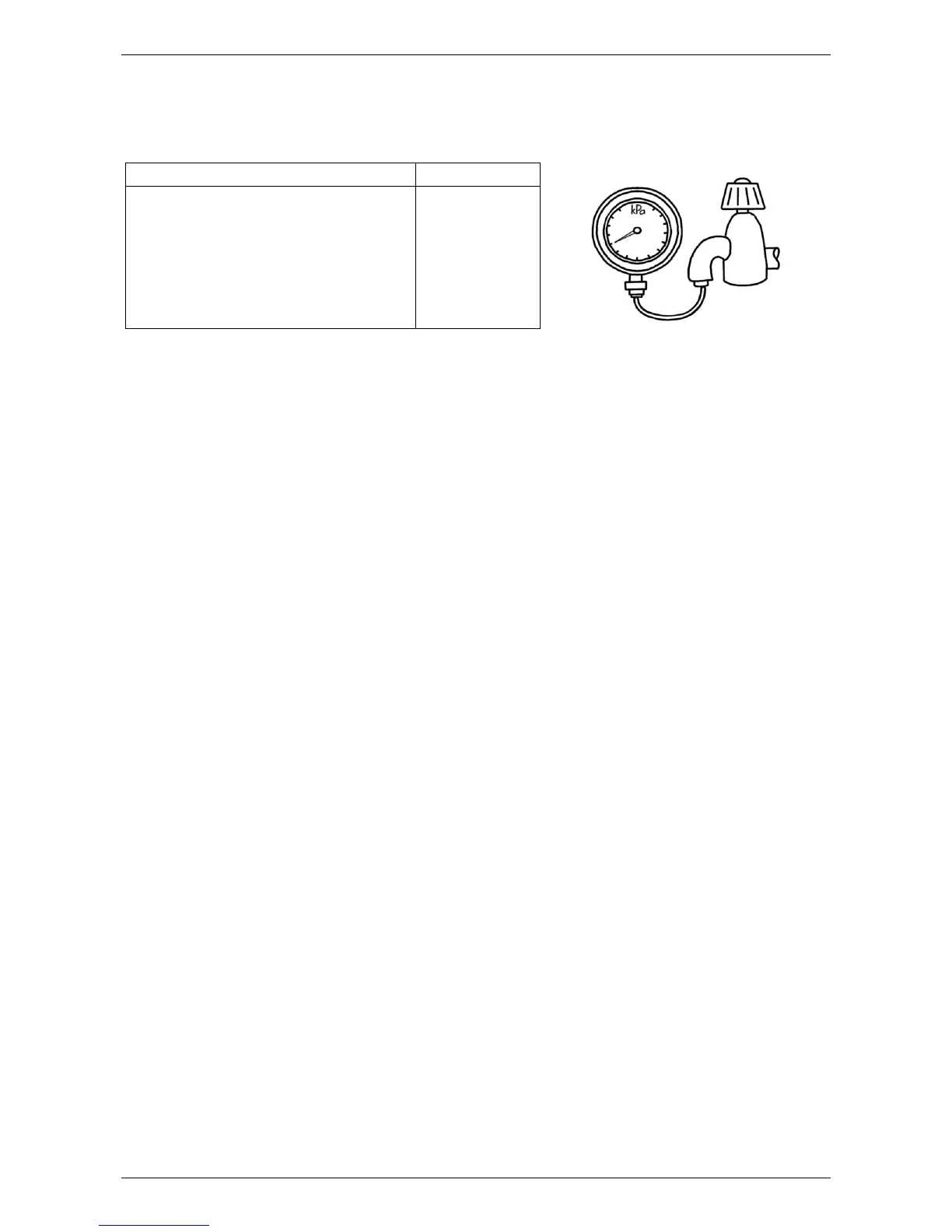

MAINS WATER SUPPLY
Where the mains water supply pressure exceeds that shown in the table, an approved pressure limiting
valve is required and should be fitted as shown in the installation diagram (refer to diagram on page 35).
Model
270, 340, 430
Relief valve setting
1000 kPa
Expansion control valve setting *
850 kPa
Max. mains supply pressure
With expansion control valve
680 kPa
Without expansion control valve
800 kPa
Min. mains supply pressure
200 kPa
* Expansion control valve not supplied with the water heater.
TANK WATER SUPPLY
If the water heater is supplied with water from a tank supply and a minimum water supply pressure of
200 kPa at the water heater cannot be achieved, then a pressure pump system must be installed to allow the
solar circuit system to operate. Care must be taken to avoid air locks. The cold water line from the supply
tank should be adequately sized and fitted with a full flow gate valve or ball valve.
