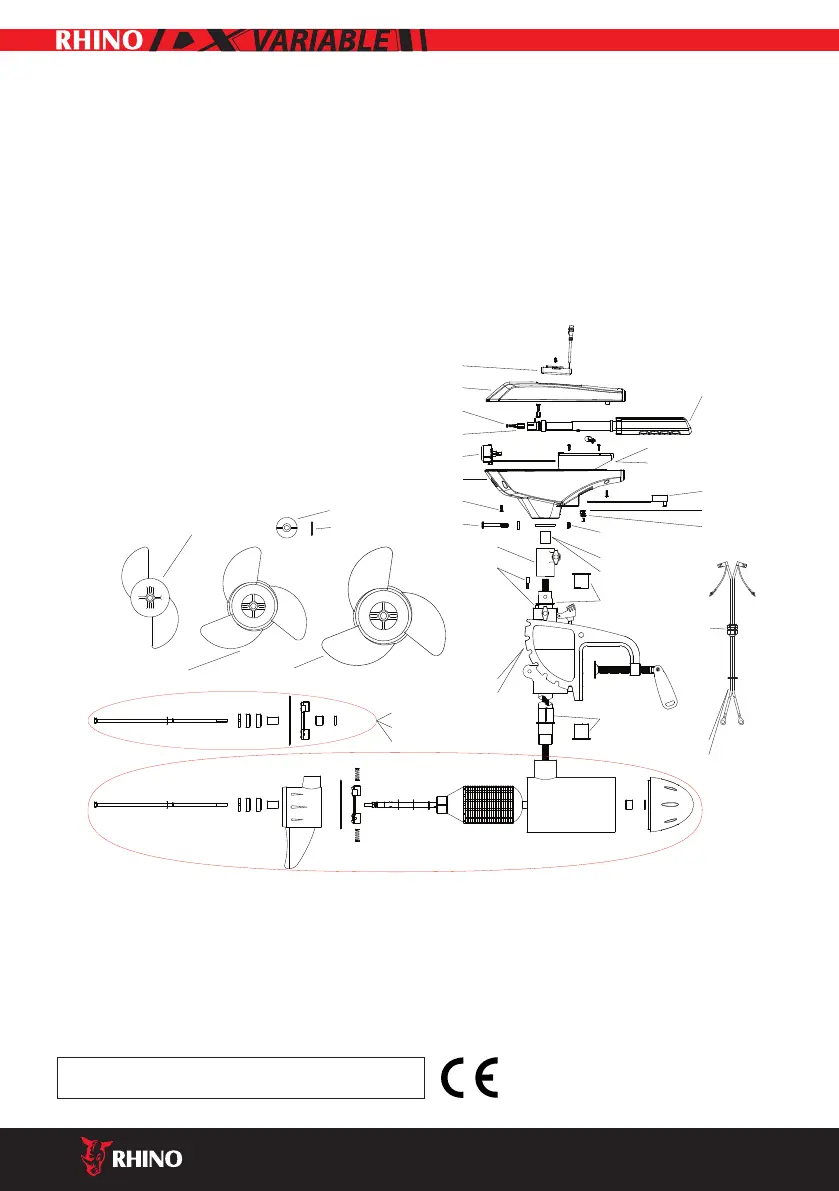

RHINO DX-V Series User Manual

56
9927 539
9925 615
9925 614
9925 616 DX-V35
DX-V55 9925 716 DX-V68 9927 816
9927 542
9927 545
9930 132
9930 111
9930 113
9927 551
9925 623
9927 552
9927 538
9930 126
9930 127
9927 533
9927 532
9930 112
9925 619
9925 611
9925 713
DX-V35 9927 525
DX-V55-68 9925 712
DX-V35 9927 930
DX-V55 9927 931
DX-V68 9927 932
DX-V35 9927 519
DX-V55 9927 619
DX-V68 9927 719
DX-V35 9927 544
DX-V55-68 9925 644
DX-V35 9927 550
DX-V55-68 9927 650
DX-V35 9927 553
DX-V55-68 9927 653
Rhino DX-V Accessories
Zebco Europe GmbH · Elsterbogen 12-14 · D-21255 Tostedt · Germany
Fax 0 41 82 / 29 43-22 · info-de@zebco-europe.com · www.zebco-europe.com
Code Voltage Max current Max Power max boat weight Shaft Length Prop
9927 035 12 V 33 A 389 W 1100 kg 0,79 m 2 Blade
9927 055 12 V 52 A 615 W 1800 kg 0,79 m 3 Blade
9927 068 12 V 43 A 520 W 2100 kg 0,79 m 3 Blade
9927 155 12 V 52 A 615 W 1800 kg 0,91 m 3 Blade
9927 168 12 V 43 A 520 W 2100 kg 0,91 m 3 Blade
The length of the motor shaft is equal to the distance between the control head and the submerged drive unit.
Code Model
9927 519 DX-V 35 Motor Unit
9927 525 DX-V 35 Motor Holder
9927 542 DX-V 35-68 Tiller Set
9927 533 DX-V 35-68 Potentiometer
9927 532 DX-V 35-68 Casing Lower Part
9927 544 DX-V 35 Control Board
9927 539 DX-V 35-68 Motor Display & Controller
9927 545 DX-V 35-68 USB Step-down Controller Assy
9927 538 DX-V 35-68 Casing Upper Part
9927 550 DX-V 35 Shaft cable lead-through
9927 551 DX-V 35-68 Plastic bushing, shaft top
9927 552 DX-V 35-68 Plastic bushing, shaft bottom
9927 553 DX-V 35 Battery Cable
9927 930 DX-V 35 Reparatur-Kit
9927 619 DX-V 55 Motor Unit
9927 644 DX-V 55/68 Control Board
9927 650 DX-V 55/68 Shaft cable lead-through
9927 653 DX-V 55/68 Battery Cable
Code Model
9927 719 DX-V 68 Motor Unit
9927 816 DX-V 68 Propeller
9927 930 DX-V 35 Repair Kit
9927 931 DX-V 55 Repair Kit
9927 932 DX-V 68 Repair Kit
9925 614 DX-V 35-68 Pin, 1 St.
9925 615 DX-V 35-68 Prop Nut
9925 616 DX-V 35 Propeller
9925 713 DX-V 35-68 Tension Block Screw
Code Model
9925 619 DX-V 35-68 Screw
9925 611 DX-V 35-68 Depth Collar Assy
9930 112 DX-V 35-68 Screw
9930 132 DX-V 35-68 Seal cover
9930 111 DX-V 35-68 Clamp
9930 113 DX-V 35-68 Locking Nut
9925 632 DX-V 35-68 Cable Pressure Plate
9930 127 DX-V 35-68 Connecting shaft
9930 126 DX-V 35-68 Spring
