Assembly Section 3-3
ASSEMBLY
FM100 02/04
© 2004 Alamo Group Inc.
ASSEMBLY
LOWER HITCH ATTACHMENT
Attach the Lower Hitches (13) to Deck with the Spacer (14), Bolt (15) and Nut (16). Place the Lower
Hitch Pins (17) thru the Lower Hitches and secure with Lynch Pins (18). FIGURE 1.
FIGURE 2

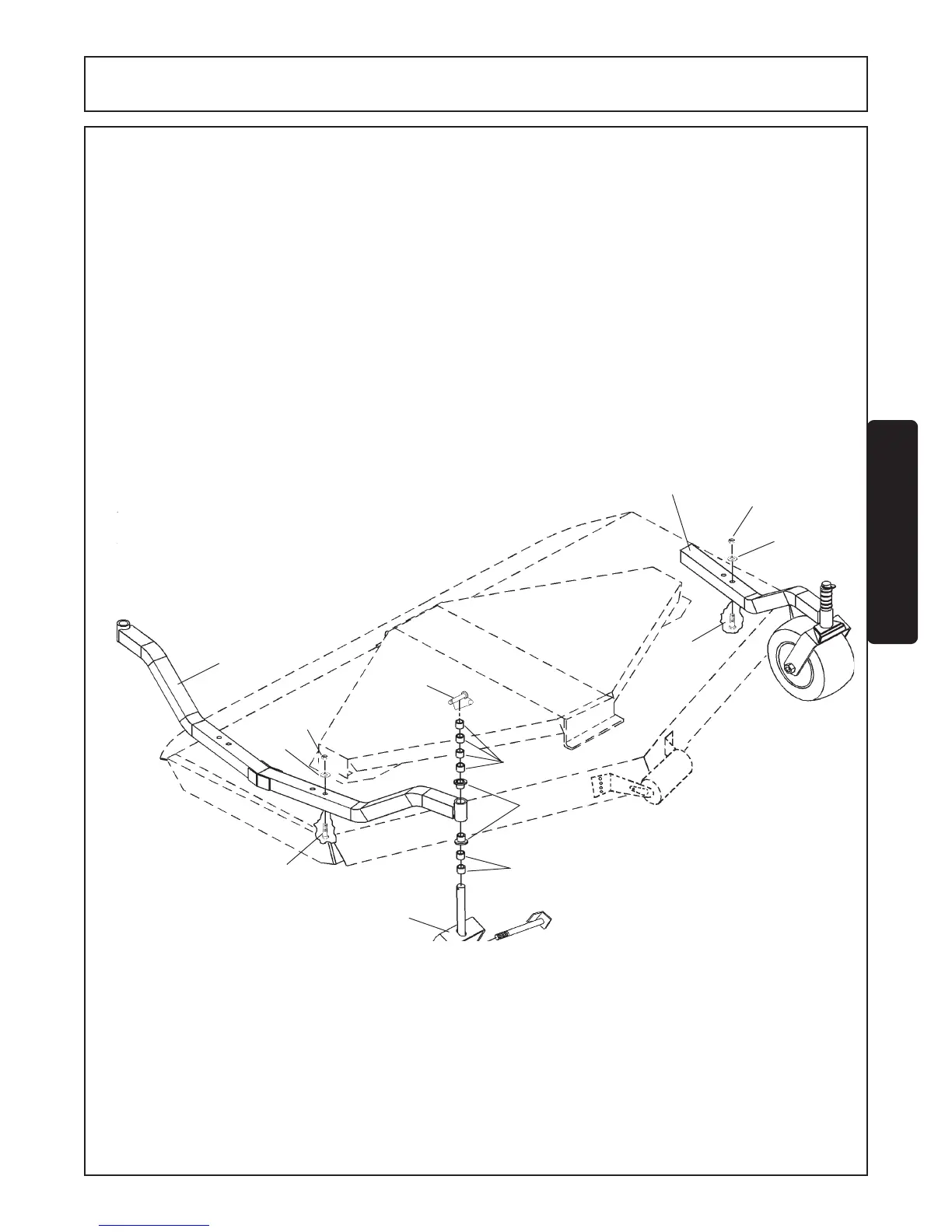

CASTER WHEEL ATTACHMENTS
Attach the right and left Axle Arm Weldment (1) to the deck with bolts (2) flatwashers (3), and locknuts (4).
Install two one inch spacer (6) and two 1/4 inch spacers (8) on each fork and wheel assembly shaft (5) , which
include Bearing (7). Insert fork shaft (5) into axle arm weldment (1). Install two additional one inch spacers
(6) on each axle shaft (5) and retain using Snapper Pin. (9) FIGURE 2.
1
2
DRIVELINE ATTACHMENT - To Gearbox
1. Insert yoke onto splined shaft. Grab and pull collar on end yoke.
2. Slide yoke (with collar depressed) onto gearbox shaft.
3. Move yoke back and forth until collar clicks forward and locks the yoke in place.
8
7
6
5
2
3
4
9
3
4
1
To Next Page
