SHELVING UNIT A SSEMBLY

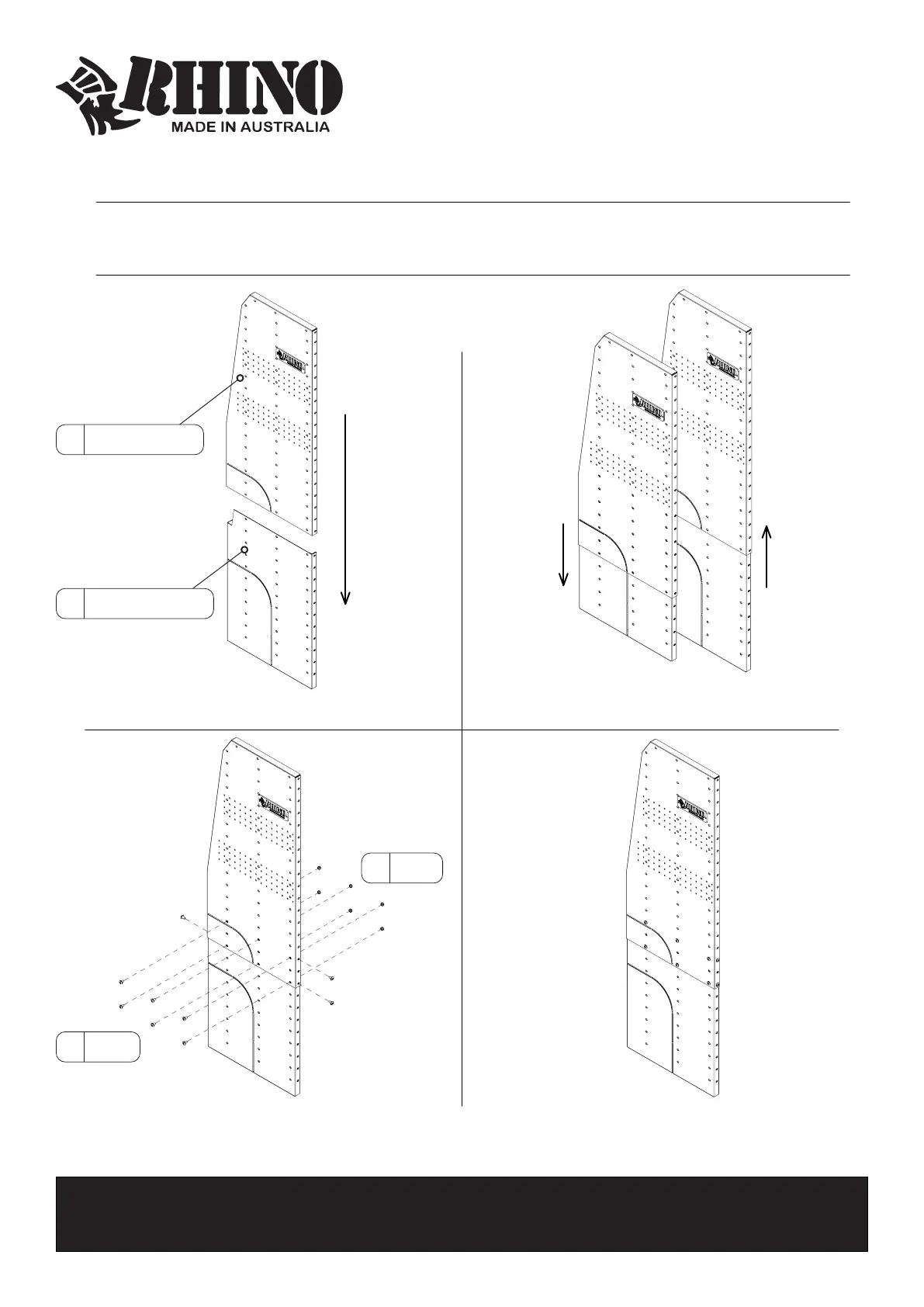

Step 1
Using an End Upper and Lower establish the optimum height of unit.
At least 3 rows of holes must be overlapping.
2: Adjust and set at correct height of
internal van measurements
4: Loosely fasten together and repeat on both sides
1: 1: Sleeve parts togetherSleeve parts together
3: 3: Overlap a minimum of three rows of holesOverlap a minimum of three rows of holes
TIPS:
- It is recommended not to tighten the hardware until all components are installed
- One or both rows of fixings can be shared with a shelf
AA
BB
END UPPER PANEL
2 total
END LOWER PANEL
2 total
VV
M6 Bolt
18 total
XX
M6 Nut
18 total
