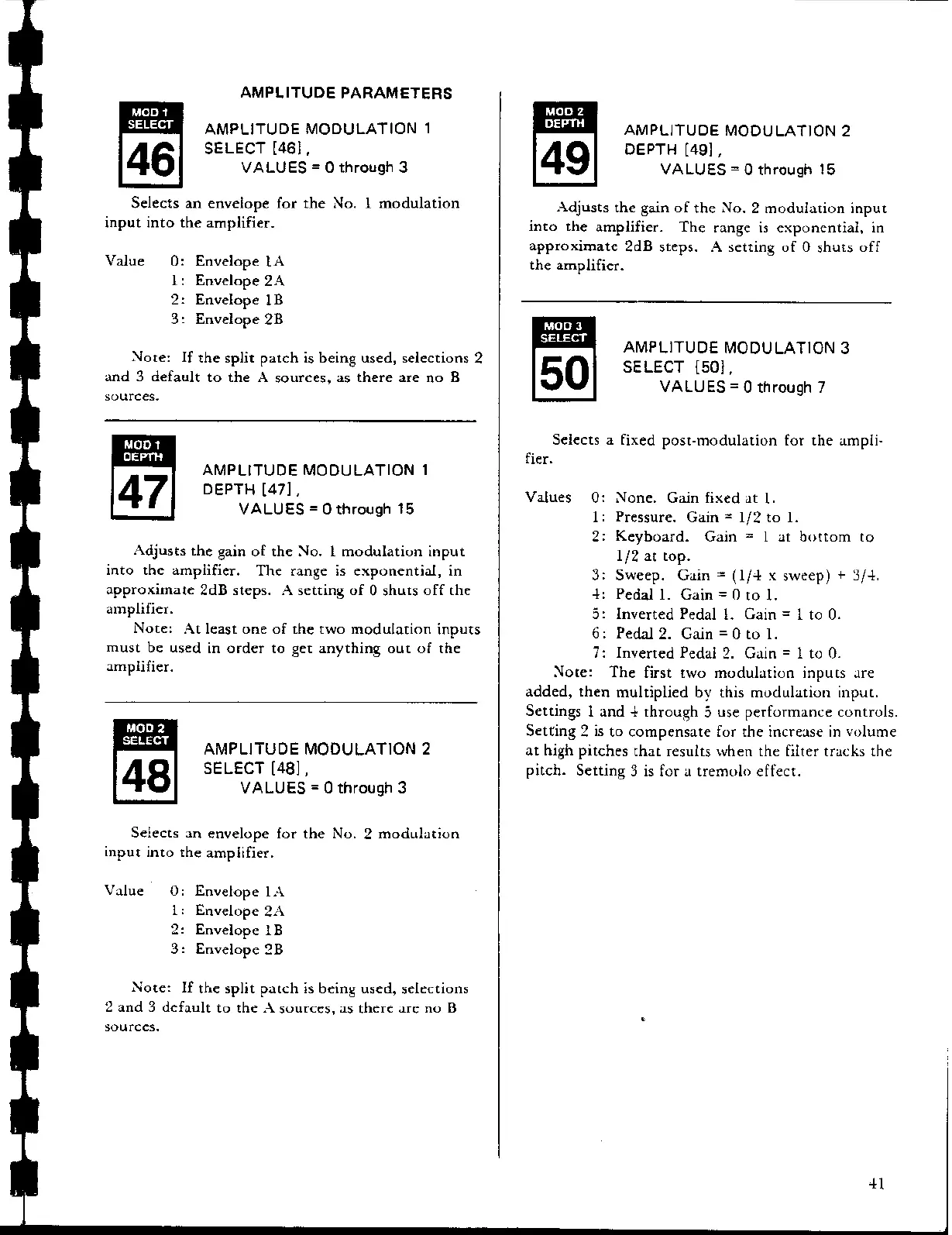

AMPLITUDE PARAMETERS
AMPLITUDE
MODULATION 1
SELECT [461.
VALUES'" 0 through 3
Selects an envelope for the ~o. l modulation
input iota the amplifier.
Value
0,
Envelope lA
"
Envelope 2.'\
2,
Envelope lB
3,
Envelope 2B
:'>lote: If the split patch is being used, selections 2
and 3 default to the A sources, as there are no B
sources.
AMPLITUDE MODULATION 1
DEPTH
[471.
VALUES'" 0 through 15
Adjusts the gain of the :"Jo. 1 modulation input
iota the amplifier. The range is exponential, in
approximate 2dB steps. A setting of 0 shuts off the
amplifier.
Note: At least one of the two modulation inputs
must be llsed in order to get anything out of the
amplifier.
AMPLITUDE MODULATION 2
SE LECT [481 .
VALUES'" a through 3
Selects an envelope for the No. 2 modulatÎon
input into the amplifier.
Value
0,
Envelope lA
L
Envelope 2A
2,
Envelope lB
3,
Envelope 28
~ote: If the split patch is being used, selections
2 and 3 default to the .-\ sources, as there J.re no B
sources.
49
AMPLITUDE MODULATION 2
DEPTH
[491.
VALUES::: 0 through 15
Adjusts the gain of the ~o. 2 modulation input
into the amplifier. The range is exponential, in
approximate 2dB steps. A setting of 0 shuts off
the amplifier.
50
AMPLITUDE MODULATION 3
SELECT [501.
VALUES::: 0 through 7
Selects a fixed
post·modulation for the ampli·
fier.
Values 0: :-.rone. Gain fixed at 1-
1: Pressure. Gain'" 1/2 to 1.
2: Keyboard. Gain::: 1 at bot tom ta
1/2 at top.
3: Sweep. Gain::: (l/-l x sweep) + 3j-l.
-l: Pedal1. Gain::: 0 ta 1.
5: lnverted Pedal 1. Gain = 1 ta O.
6: Pedal 2. Gain = 0 to l.
7: Inverted Pedal 2. Gain = 1 to O.
~ote: The first twu modulation inputs J.re
added, then multiplied by this modulation input.
Settings 1 and -l through 5 use performance controls.
Setting 2 Îs to cumpensate for the increase in volume
at high pitches that results when the filter tracks the
pitch. Setting 3 is for a tremoln effect.
