II SECTION II :: INSTALLATOR
II.1 INSTRUCTION FOR TRANSPORT
II.1.1 PACKAGING AND COMPONENTS
DANGER!
Do not open or tamper with the packaging before
installation.
Upon delivery, check that the accessory has not been damaged during
transport and that it is complete with all its parts.
If there is visible damage, immediately take note of the damage and
write this on the transport document together with the following
statement: “ACCEPTED WITH RESERVATIONS BECAUSE OF
EVIDENT DAMAGE TO THE PACKAGING”, stating the serial number if
there are several machines, since ex-works delivery implies entitlement
to compensation under the terms of the insurance, in accordance with
the provisions of Law no. 450 of 22/08/85 “limit of compensation”.
Follow these instructions to remove the packaging:
x Check for visible damage;
x Open the packaging;
x Dispose of the packaging material in accordance with current
legislation, at the appropriate waste reception or recycling site.
SAFEGUARD THE ENVIRONMENT!
Dispose of the packaging materials in compliance
with the national or local legislation in force in your
country.
DANGER!
Do not leave the packaging within reach of children.
II.1.2 STORAGE CONDITIONS
The packed accessories can be stored in a dry place protected from the
elements.
II.2 INSTALLATION INSTRUCTIONS
DANGER!
Installation must only be carried out by skilled
technicians, qualified for working on air
conditioning and refrigeration systems. Incorrect
installation can determine poor unit operation.
DANGER!
Accordingly, all staff is required to follow the local
or national standards in force at the time of
commissioning the accessory and the unit that
uses the accessory.

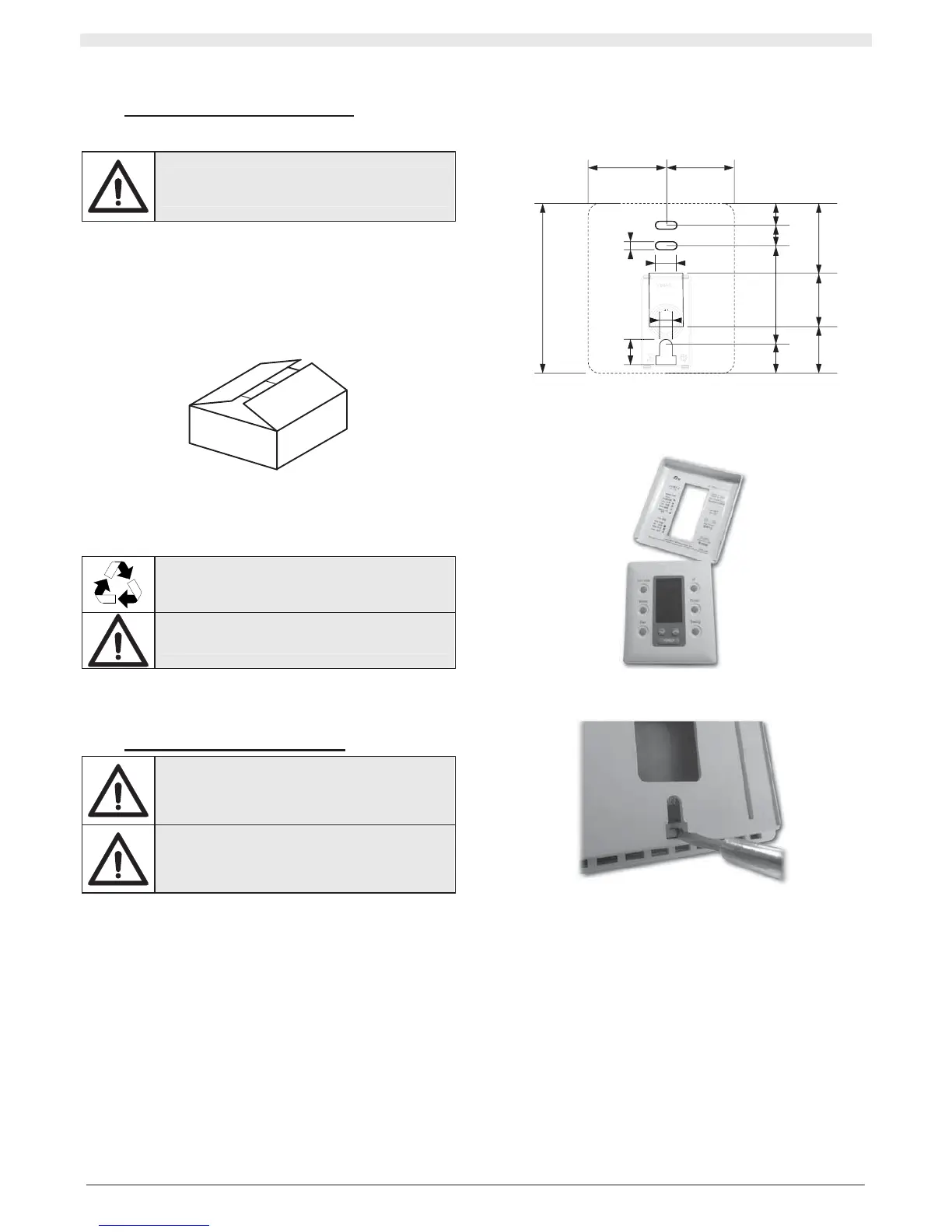

II.2.1 MOUNTING THE CONTROL PANEL
II.2.1.1 Set-ups provided to mount the control panel
The control panel (KWPCI) must be mounted at a minimum height of
1.5 m from the ground. It should not be installed near heat sources.
48,5 48,5
10
5
14 19
52,5 25,5
60
17,5
21
111,5
58,5
