5
5

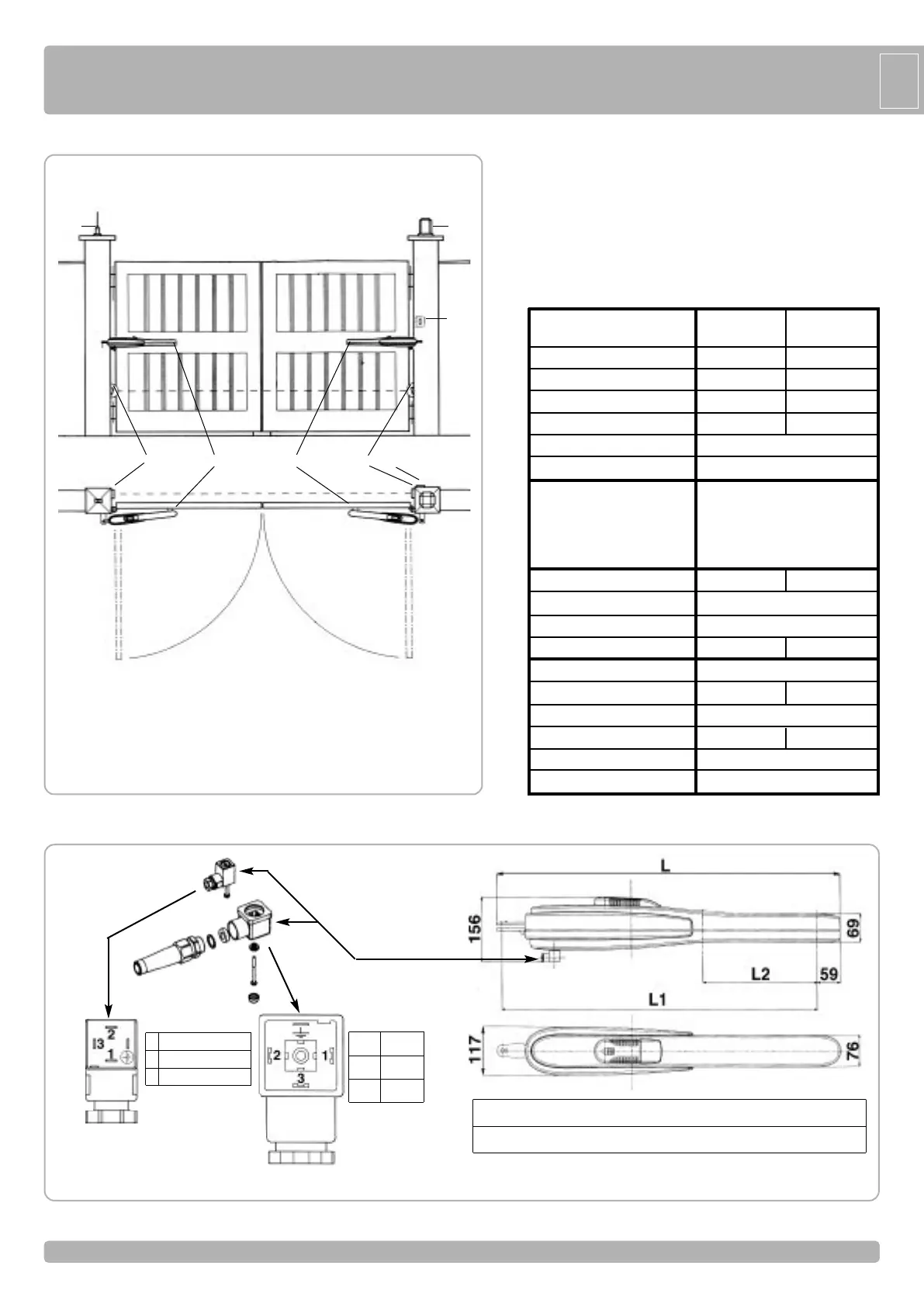

LAYOUT IMPIANTO
1 - Operatore KING
2 - Antenna radio
3 - Lampeggiatore
4 - Selettore a chiave
5 - Fotocellule esterne
CARATTERISTICHE TECNICHE
KING è una serie di operatori irreversibili, utilizzati per
movimentare cancelli a battente con ante lunghe fino a 4,5 m
(Fig. 1).
La serie KING è stata concepita per funzionare senza finecorsa
elettrici, ma solo meccanici.
Quando è arrivato in battuta il motore funziona ancora per
qualche secondo, fino a quando non interviene il timer di
funzionamento della centralina di comando (o l’ENCODER se
versione PLUS).
II
Misure in mm
KING L
L=1020
L1=945
L2=470
KING L=888 L1=815 L2=340
1 S / Encod M
2 +
3 GND
* SOLO
KING PLUS
*
1 V
2 W
3U
Encoder
CARATTERISTICHE
TECNICHE
Lunghezza max. anta
Peso max cancello
Corsa max di traino
Tempo medio di apertura
Velocità di traino
Forza max di spinta
Alimentazione e frequenza CEE
Potenza motore
Assorbimento
Condensatore
Cicli normativi
Cicli consigliati al giorno
Servizio
Cicli consecutivi garantiti
Lubrificazione a grasso
Peso motore
Rumorosità
Volume
Temperatura di lavoro
Grado di protezione
m 3,5* 4,5*
kg 400 500
mm 345** 475**
s. 14÷27 29÷38
m/s. 0,0125
N 1800
230V~ 50Hz
W 290
A 1,2
µF 10
17 - 14s/2s 10 - 33s/2s
150
60%
20/14s 15/33s
Bechem - RHUS 550
kg 10 14
db <70
m
3
0,0184 0,0211
°C -10 ÷ +55°C
IP 447
** Con fermo meccanico incorporato che interviene durante l'apertura.
Se si utilizza anche il fermo meccanico che interviene durante la
chiusura, opzionale, la corsa massima di traino si riduce di 50 mm.
KING KING L
1
