38

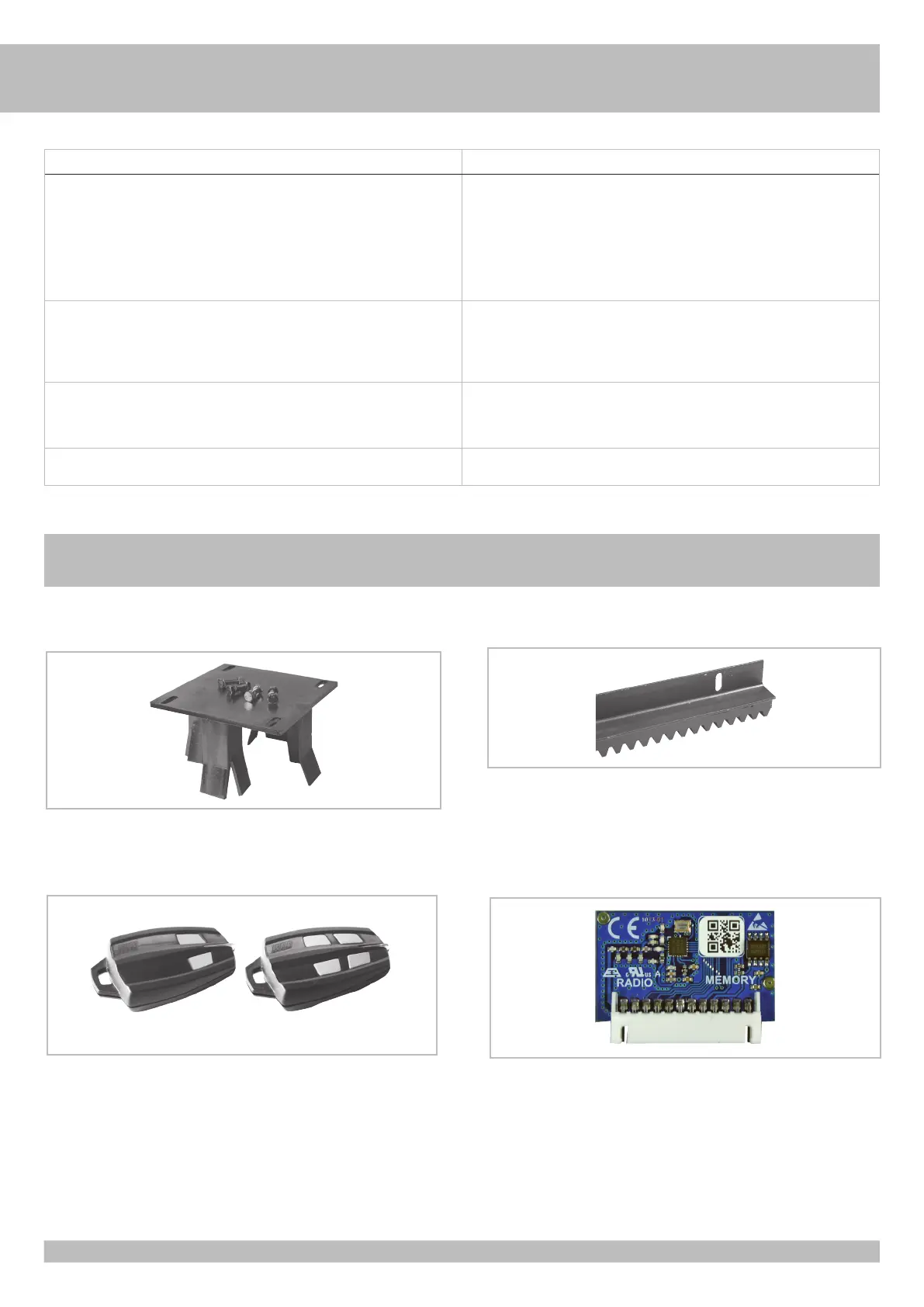

FAULT SOLUTION
After having carried out the various connections and having supplied voltage, all the LEDS
are switched off.
On the board there are resettable fuses which intervene in the event of a short circuit,
interrupting the output assigned to them.
In the event of troubleshooting, it is advisable to disconnect all the removable
connectors and insert them one at a time in order to more easily identify the cause
of the fault.
Check the integrity of fuse F1.
In case of interrupted fuse use only of adequate value
F1 = T 5A Fuse for motor protection
The gate opens but does not close after the time set. Make sure that the TCA trimmer is activated with LED DL11 ON.
B.I.O. contact always on / green led on => check the status of the clock connected to B.I.O.
input.
Photocells Auto-test failed => check the connections between the control panel and the
photocells.
The gate does not open or close by activating the various START, RADIO, OPEN and CLOSE
buttons.
Faulty safety edge contact. Faulty photocells contact with DIP 4 OFF. => Fix or replace the
faulty contact.
Photocells Auto-test failed => check the connections between the control panel and the
photocells.
By activating the START, OPEN or CLOSE button the gate does not move. START, OPEN or CLOSE command always active.
Check and replace any buttons or micro-switches of the selector switch.
RADIO TRANSMITTER SUN
RADIO MODULE 433MHz
code ACG8069
SUN 2CH cod. ACG6052 SUN 4CH cod. ACG6054
SUN CLONE 2CH cod. ACG6056 SUN CLONE 4CH cod. ACG6058
SUN-PRO 2CH cod. ACG6210 SUN-PRO 4CH cod. ACG6214
SUN-PROX 2CH cod. ACG6220 SUN-PROX 4CH cod. ACG6224
ACCESSORIES - For the connections and the technical data of the optional equipments follow the relevant handbooks.
PLATE TO BE CEMENTED
code ACG8103
MODULE 6 RACK
with CATAPHORESIS treatment, right angle in 2 m - 6,56 feet bars. code ACS9090
