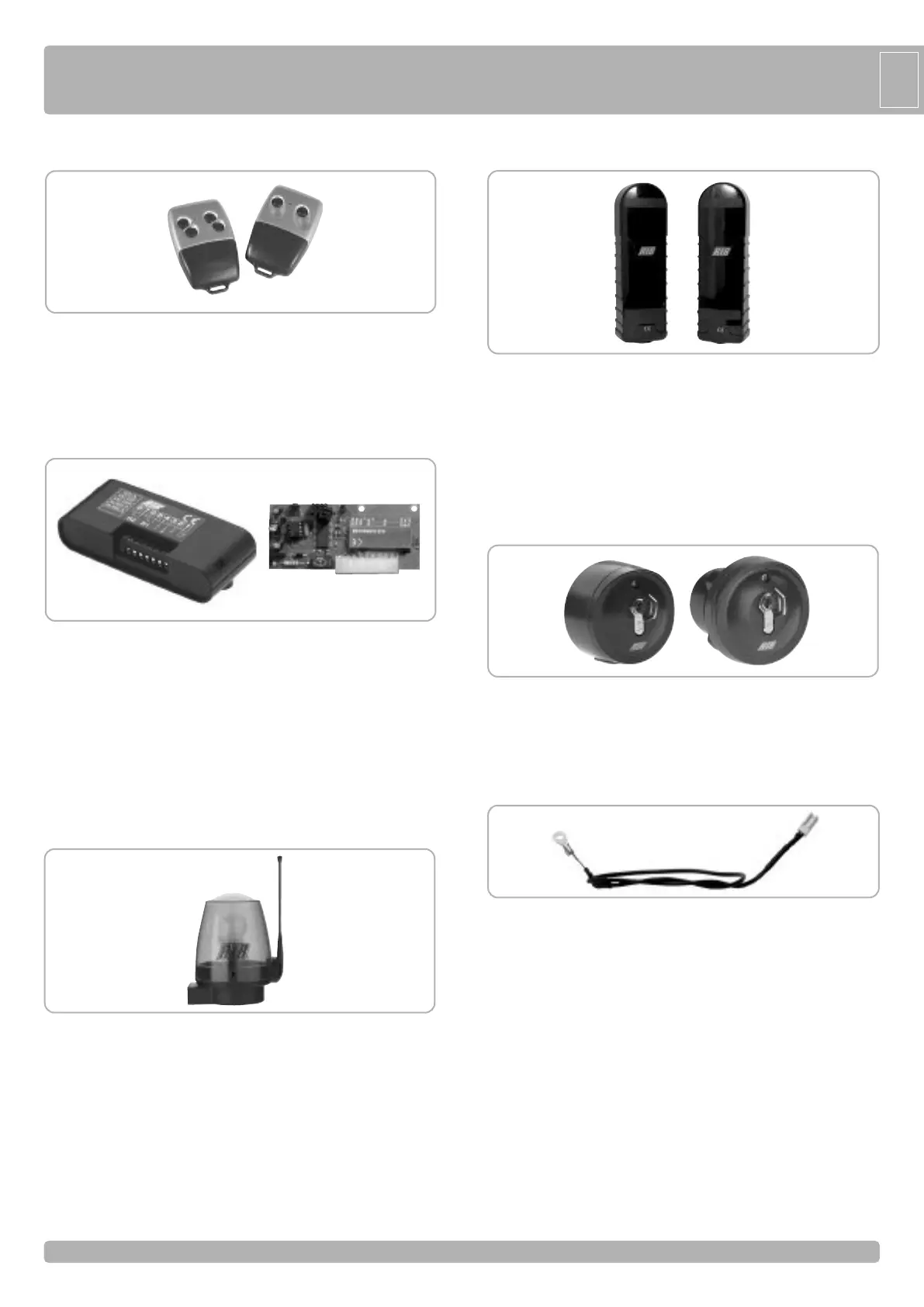

OPTIONALS - For the connections and the technical data of the fixtures follow the relevant handbooks.
ACG6081 - MOON 433
ACG7025 - MOON 91
ACG6082 - MOON 433
ACG7026 - MOON 91
RA
DIO TRANSMITTER MOON
CODE LEARNIG SYSTEM RADIORECEIVERS
RX91/A quarzata and coupling code ACG5005
RX91/A quarzata and terminal board code ACG5004
RX433/A super eterodyne and coupling code ACG5055
RX433/A super eterodyne and terminal board code ACG5056
RX433/A 2CH super eterodyne, 2 channel and coupling code ACG5051
RX433/A 2CH super eterodyne, 2 channel and terminal board
code ACG5052
FI
T SLIM
PHOTOCELLS for the wall-installation code ACG8032
FIT
SLIM photocells have synchronism function in AC current and
ranges of 20 m.
You can fit many photocell couples close together thanks to the optional
synchronizing circuit SYNCRO TRANSMITTER TX SLIM SYNCRO
code ACG8029 for more than 2 photocells couples (up to 4).
SPARK
In order to make the systems mentioned above give the best
performances, you need to install an aerial, tuned on the frequency of
the radio receiver installed.
PAY ATTENTION: to not let the central wire of the aerial cable to get in
short circuit with the external copper shield, since this would prevent
the aerial from working.
Install the aerial vertically and in such a way the remote control can
reach it.
SPARK ANTENNA 91 code ACG5454
SP
ARK
ANTENNA
433
code
ACG5452
SP
ARK BLINKER WITH IN-BUIL
T INTERMITTENT CARD
code ACG7059
BLOCK
KEY SELECTOR FOR WALL-INSTALLATION code ACG1053
KEY SELECTOR TO BUILD-IN code ACG1048
HEATER ONLY FOR KING ICE
The in-built thermal sensor of the KING ICE motor can be connected to
the terminal block J7 on the T2 control board. For the connection details
please refer to the KING ICE Instruction Manual.
The probe for motor heating is a device intended to be used in
extremely cold environment (up to -30°C) to avoid motor freezing.
Such device activates automatically when the gate is steady (the
position being irrelevant, provided it is not moving).
The work of the heater is indicated by both the DL6 and DL7 leds
for the motor number 1, and by the DL4 and DL5 leds for the motor
number 2.
When the motor is running the heating system is inoperative.
On elapsing of 10 seconds delay from gate stop, the heating system
gets activated (in case the environment temperature in the motor area
is below 20°C).
Upon achieving a 30°C temperature the heating system deactivates,
maintaining a constant environment temperature.
TECHNICAL
DATA
Cable lenght
45 cm
Resistance 10K ±2% (at 25°C)
Working temperature -30 ÷ +55°C
