BRUSH CUTTER & EDGE TRIMMER

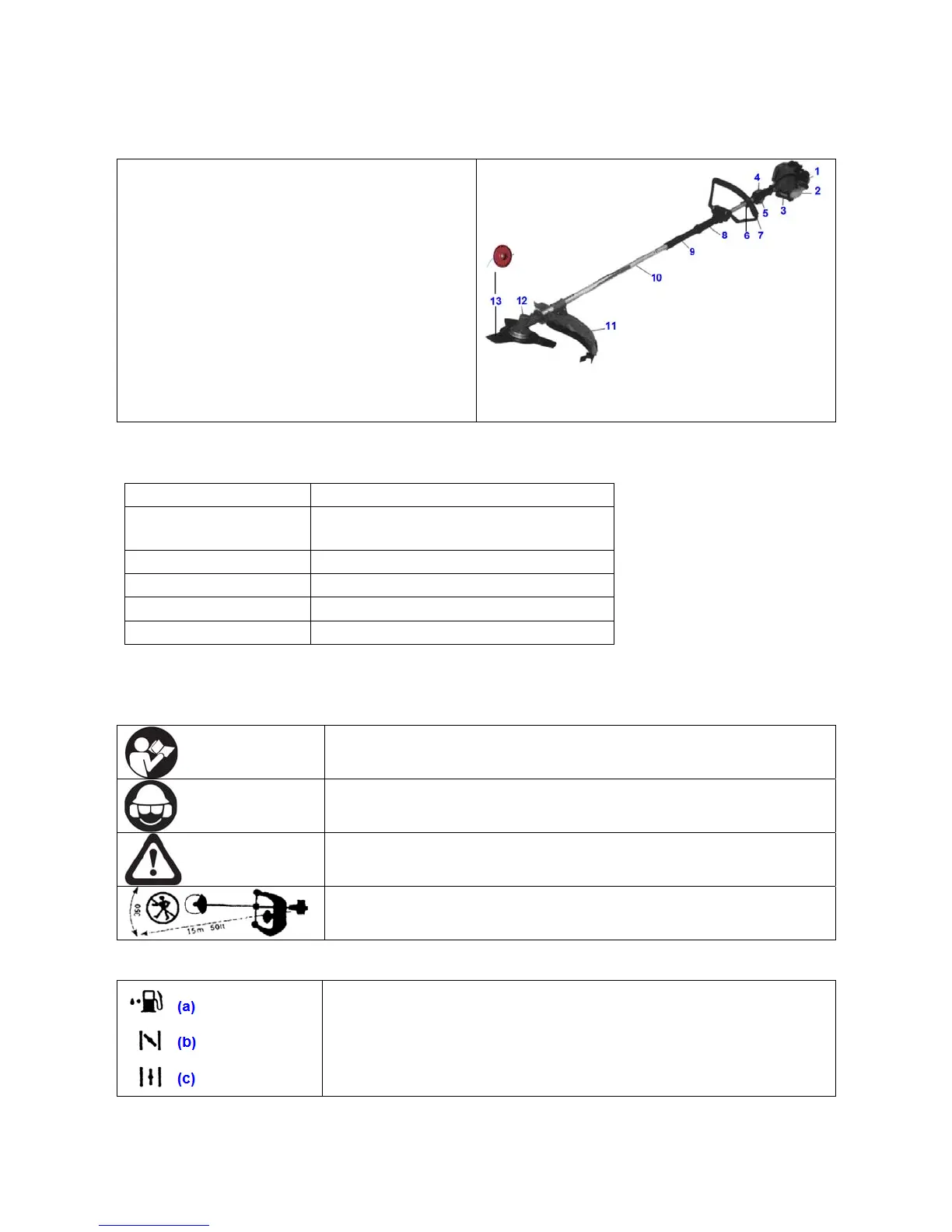

I. Parts List
1. Air cleaner
2. Fuel tank
3. Clutch coupler system
4. Ignition switch
5. Throttle trigger
6. Hanger
7. Shoulder Strap
8. Handle B
9. Handle C
10. Outer pipe
11. Protector shield
12. Gear case
13. Blade or nylon wire
Fig.BC1
II. CHARACTERISTICS
Applied blade Metal blade / Nylon wire
Blade dimensions
Metal blade: 3-teeth blade ∅255mm
Nylon wire: 2x2.5mx2.55mm
Blade rotation direction Counterclockwise (from operator’s view)
Cutting diameter
∅255mm
Dimensions 204x38x33cm
Dry weight 6.5 kg approx.
III. Special Safety Instructions
3.1- Warning labels on machine
Read instructions manual before operating the product
Wear personal protective equipment: helmet, eye and ear protection.
Warning / Attention
Keep children, bystanders and helpers at 15m away from the product.
3.2- Symbols on the machine
(a) The port to refuel the “mix gasoline”. Position: fuel tank cap
(b) The direction to close the choke. Position: air cleaner cover
(c) The direction to open the choke. Position: air cleaner cover
