Rich Solar MPPT Series User Manual

4. PRODUCT OPERATION AND DISPLAY
Nighttime
Daytime
Solar panel
Charging
Battery
Discharging
Load
Parameter value
Unit
Battery type
AbnormalityBluetoothSerial
port
Setting
System
voltage
Charging
stage

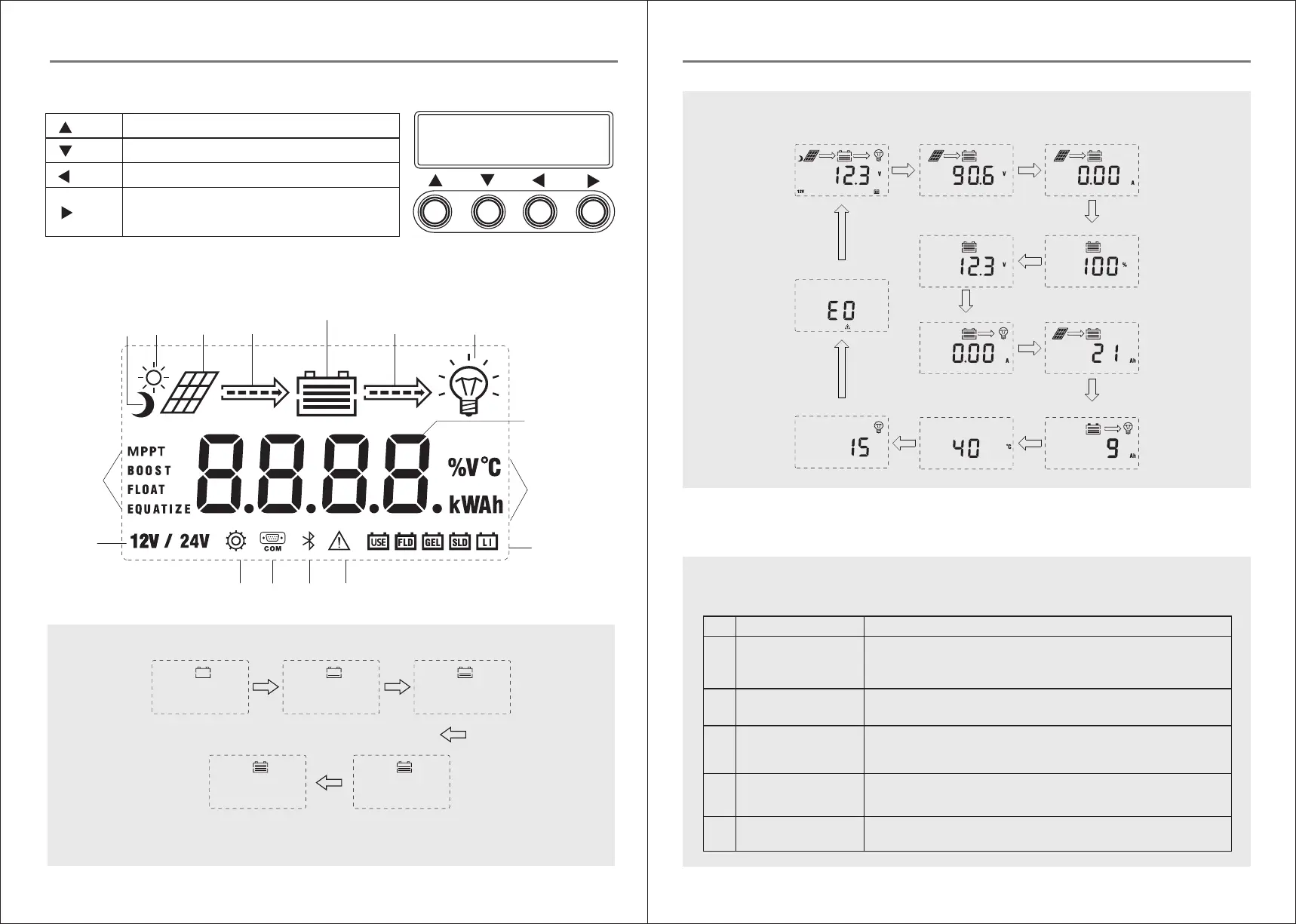

-4 3. LCD Startup and Main Interface
4.3.1 Startup interface
During startup, the 4 indicators will first flash successively, and after self-inspection, the LCD screen starts and displays the
battery's voltage level which will be either a fixed voltage selected by the user or a voltage automatically recognized.
Up
Down
Return
Set
Page up; increase the parameter value in setting
Page down; decrease the parameter value in setting
Return to previous menu (exit without saving)
Enter into sub-menu; set/ save
Turn on/ off loads (in manual mode)
-4.2 Key Operations
4. PRODUCT OPERATION AND DISPLAY
10
09
4.3.2 Main interface
4.4.1 Load modes introduction
This controller has 5 load operating modes which will be described below:
-4 4. Load Mode Setting Interface
0
1~14
15
16
17
Mode
Sole light control
(nighttime on and daytime off)
Light control + time control
1 to 14 hours
Manual mode
Debugging mode
Normal on mode
No.
Descriptions
When no sunlight is present, the solar panel voltage is lower than the light control on
voltage, and after a time delay, the controller will switch on the load; when sunlight
emerges, the solar panel voltage will become higher than the light control off voltage,
and after a time delay, the controller will switch off the load.
When no sunlight is present, the solar panel voltage is lower than the light control on
voltage, and after a time delay, the controller will switch on the load. The load will be
switched off after working for a preset period of time.
In this mode, the user can switch the load on or off by the keys, no matter whether it's
day or night. This mode is designed for some specially purposed loads, and also used in
the debugging process.
Used for system debugging. With light signals, the load is shut off;without light signals,
the load is switched on. This mode enables fast check of the correctness of system
installation during installation debugging.
The energized load keeps outputting, and this mode is suitable forloads which need 24-
hour power supply.
Main monitoring page
Component voltage Charging current
Battery capacity
Battery voltage
Load current
Charging capacity
Discharging capacity
Device temperature
Load mode
Abnormality code
