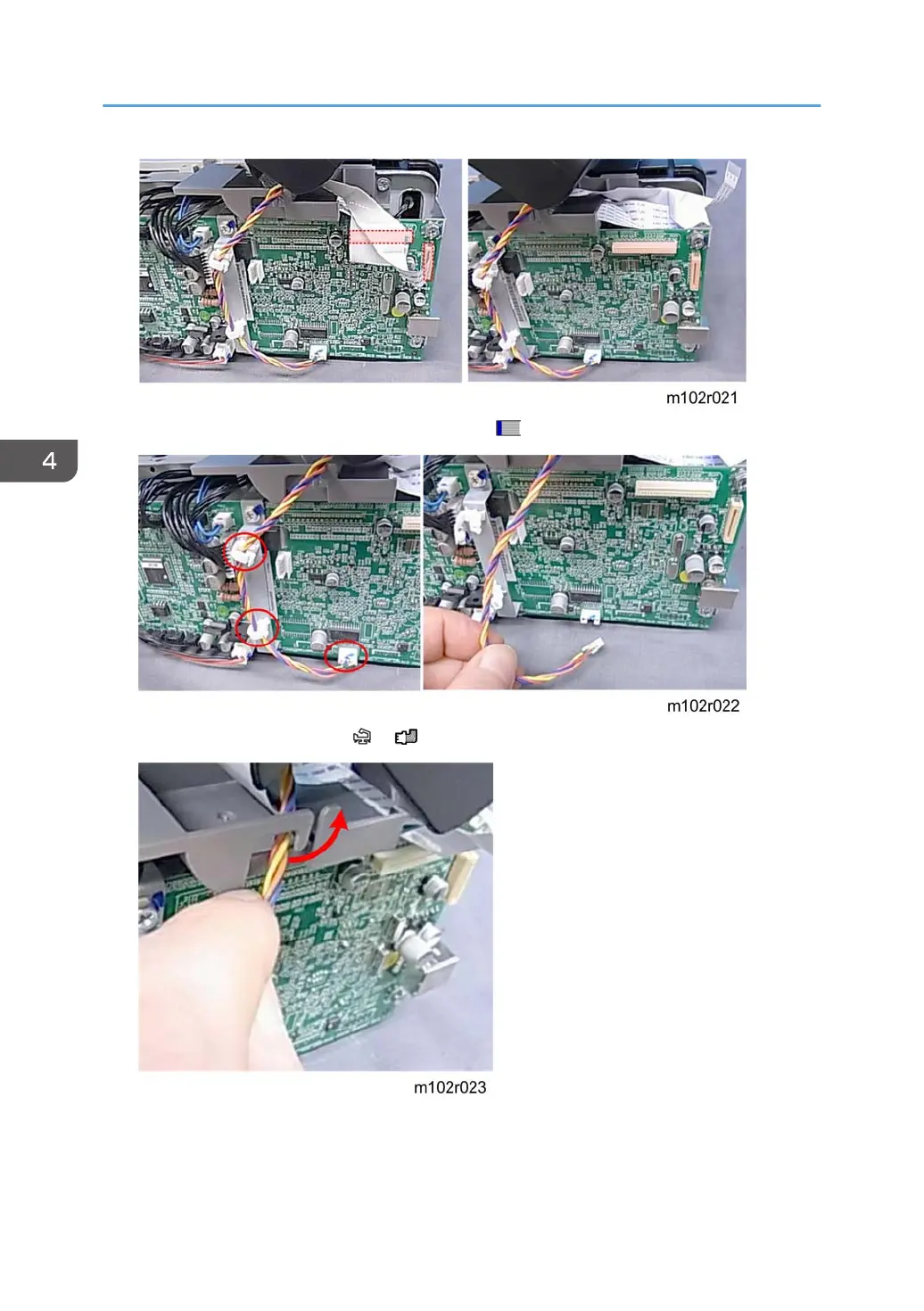

2. Disconnect the flat cables at the upper right corner ( x2).
3. Disconnect the center harness ( x2, x1)
4. Above the board, disconnect the center harness from the harness guide.
4. Replacement and Adjustments
124
