Ricoh Aficio SP 100

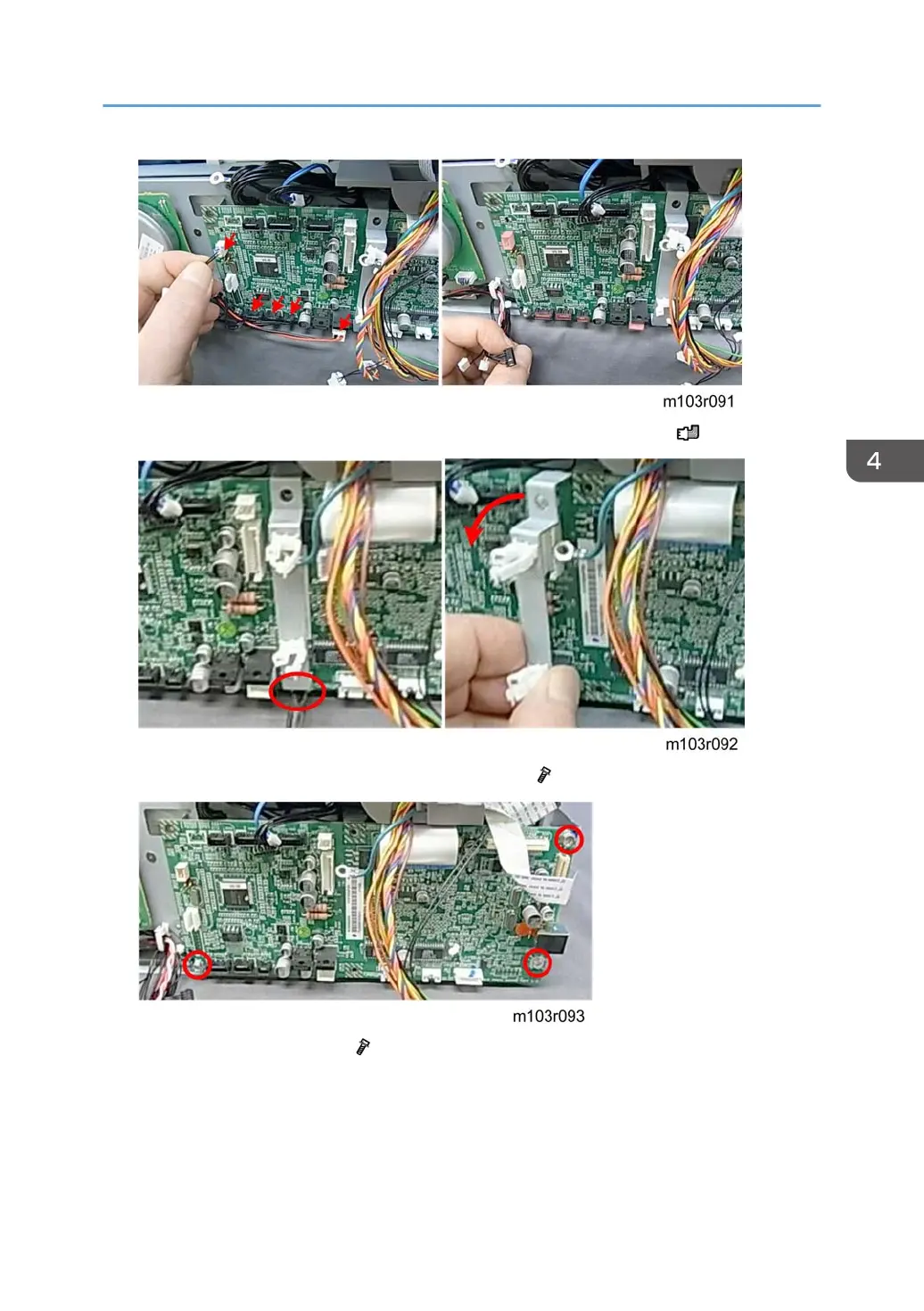

7. On the left side and bottom left edge of the board, disconnect the connectors ( x5).
8. Disconnect the bottom of the center brace and remove it ( x1).
9. Remove the remaining screws ( x3).
Boards
129
