Positions of WARNING and CAUTION Labels

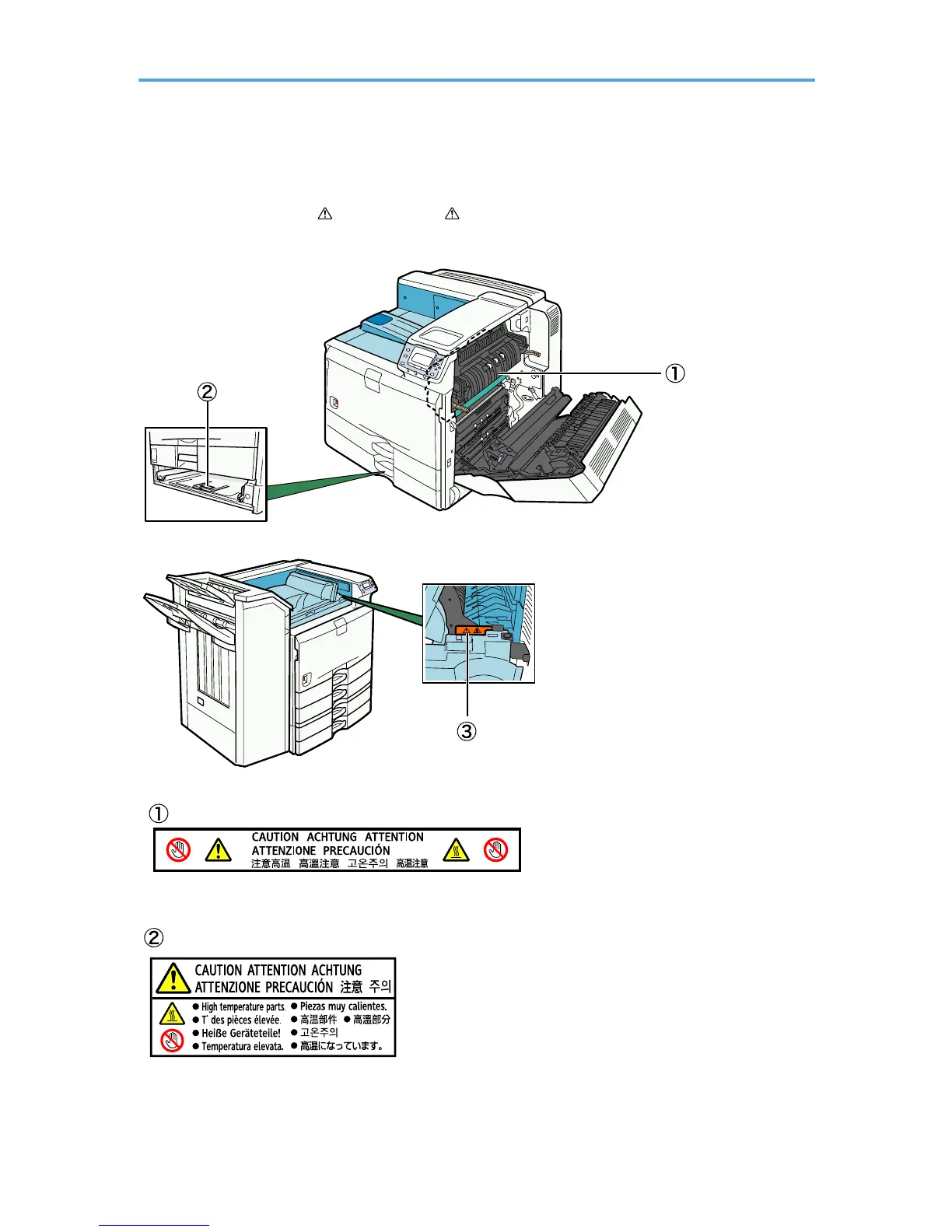

This machine has labels for WARNING and CAUTION at the positions shown below. For safety,

please follow the instructions and handle the machine as indicated.

BEK205S

BEK206S

High temperature. Be careful of hot parts when clearing paper jams.

The inside of this printer could be very hot. Do not touch parts which a label is put on. Otherwise, an injury

might occur.
