1-5

Installation

04 October 2007

1.3 BOOKLET MAKER INSTALLATION

1.3.1 ACCESSORY CHECK

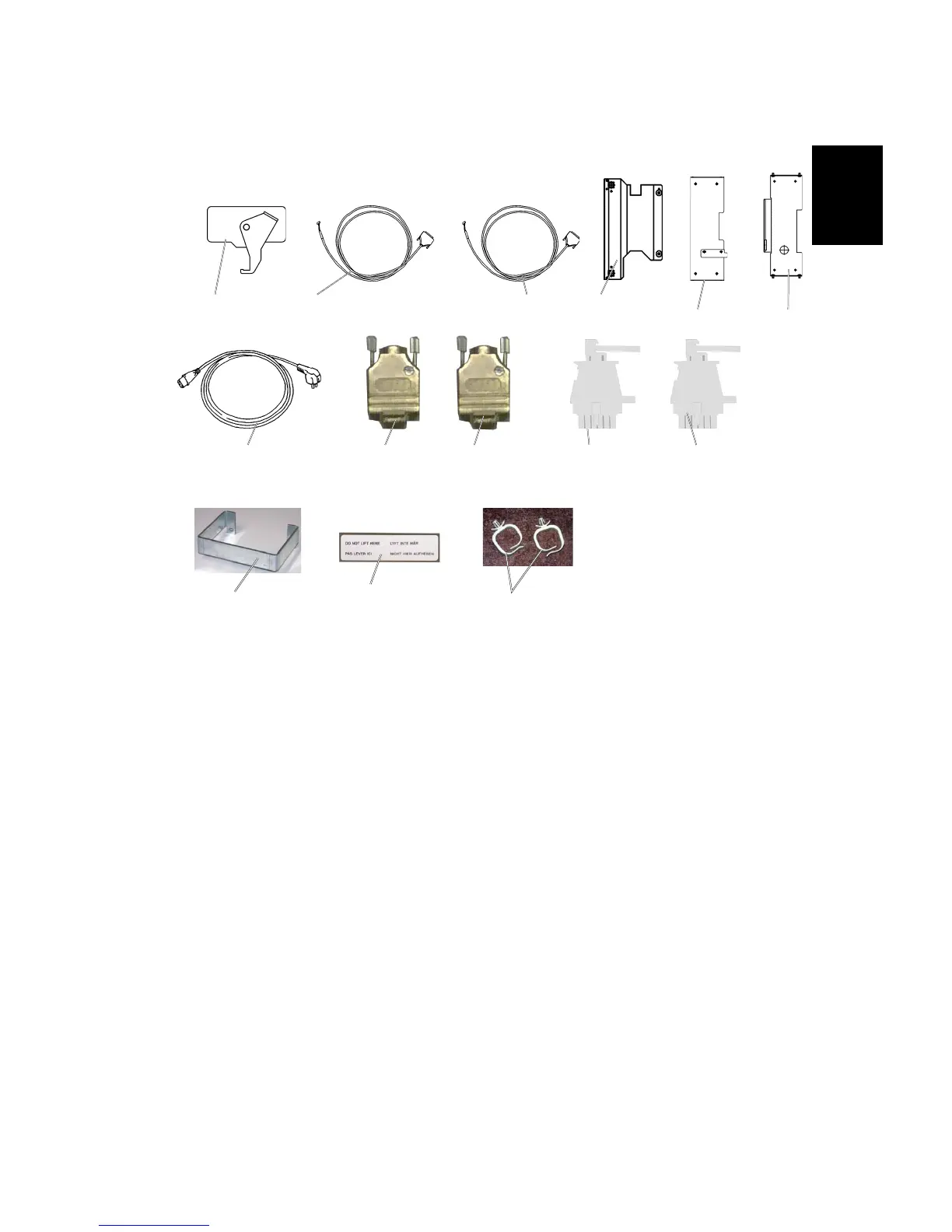

Check the quantity and condition of the accessories in the box against the following list:

Description Q’ty

A. Exit arm Catcher .................................................................. 1

B. CommunicationCabletoSR5000nisher ........................... 1

C. CommunicationCabletoSR841nisher ............................. 1

D. Docking assembly ................................................................ 1

E. Shift tray plate ...................................................................... 1

F. Exit tray plate ....................................................................... 1

G. Powercord ............................................................................ 1

H. Terminator plug, will always be installed onto BK5010 ........ 1

I. Terminator plug TR5010 ....................................................... 1

J. Interlock Jumper, will always be installed onto BK5010 ...... 1

K. Interlock Jumper TR5010 ..................................................... 1

L. Cable protector ..................................................................... 1

M. Cable protector sticker ........................................................ 1

N. Cable holder ......................................................................... 1

[A] [E][D][B] [F]

[G] [I]

[H]

[J] [K]

[C]

[L]

[M] [N]

BOOKLET MAKER INSTALLATION
