Taurus-C1 Training
16
Slide 16

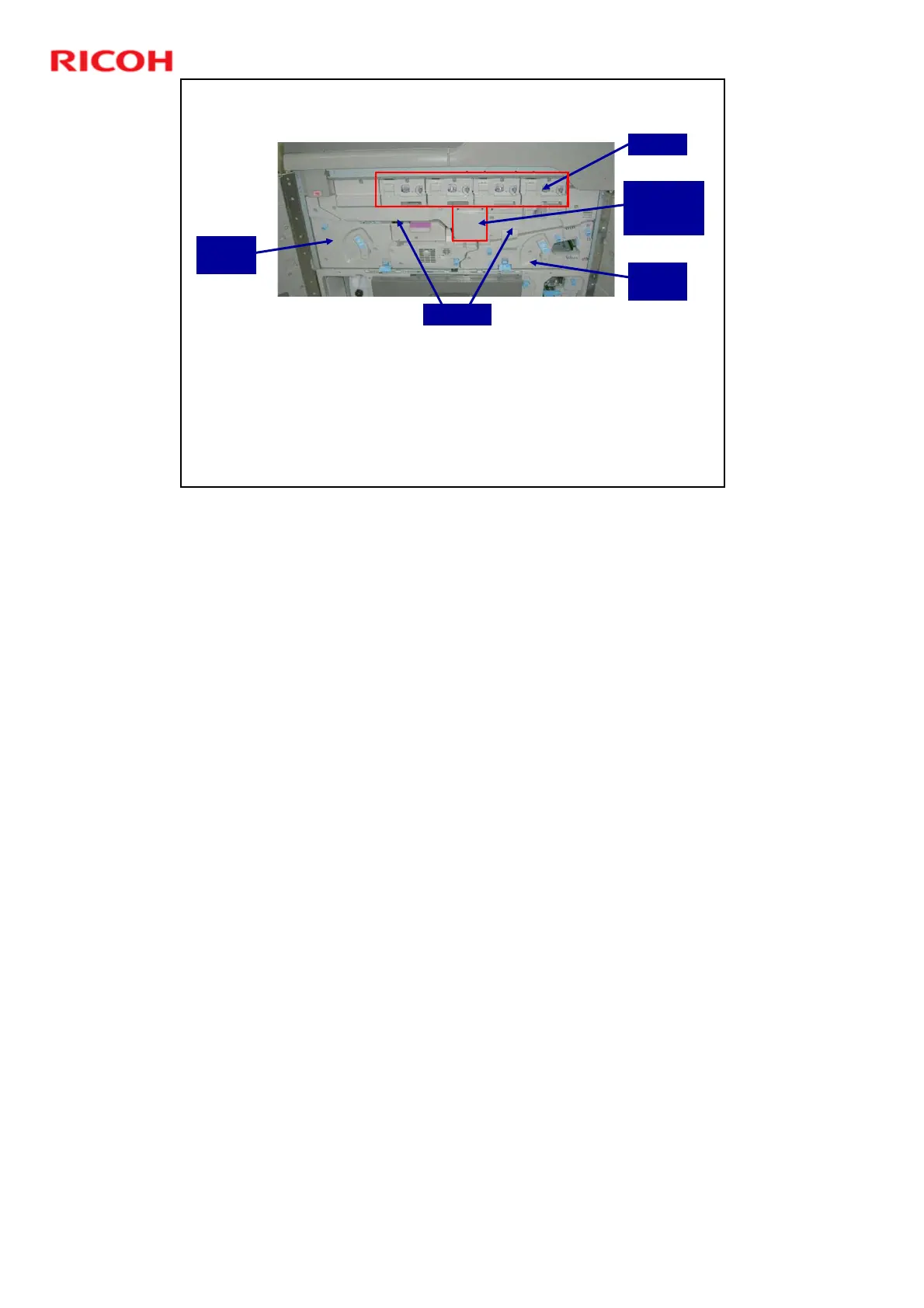

View with Front Covers Open
The left drawer contains the PTB (paper transport belt),
fusing unit, paper cooling unit, and the 1st half of the
duplex path.
The right drawer contains the PTR (paper transfer roller)
unit, paper registration, and the 2nd half of the duplex path
PCDUs
ITB
Cleaning
Unit
Right
Drawer
Left
Drawer
ITB Unit
No additional notes
