Taurus-C1 Training
17
Slide 17

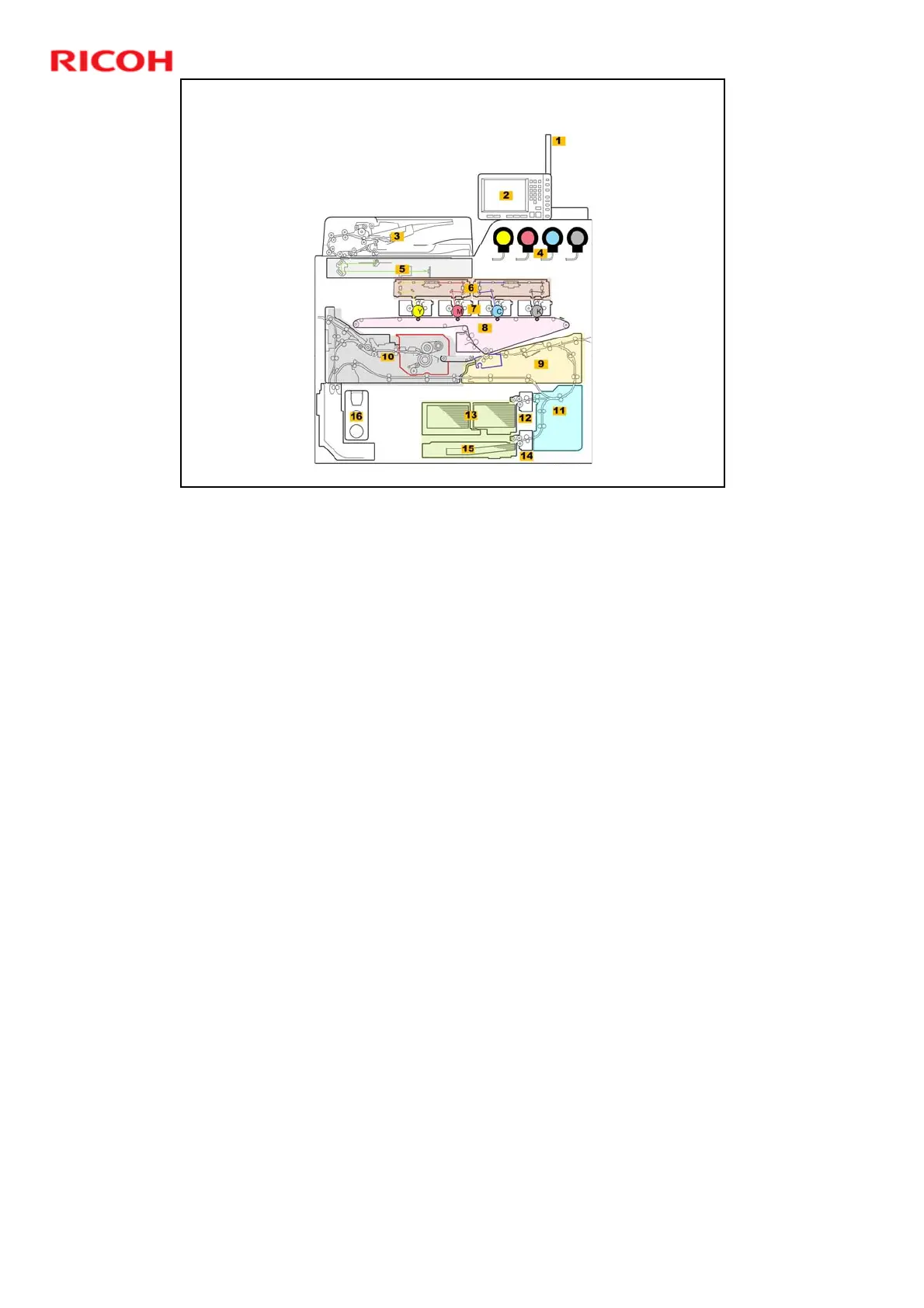

Internal Component Layout
1. Attention Light: Not built-in. Must be installed during the installation procedure.
2. Operation Panel: Not built-in. Must be installed during the installation
procedure.
3. ARDF
4. Toner Bank
5. Scanner Unit
6. Laser Units: There are two laser units. Each laser unit handles two colors
(YM, CK).
7. PCDUs: One for each color (YMCK). Each unit contains the drum (and charge
unit), development unit, and cleaning unit.
8. ITB Unit
9. Right Drawer
10. Left Drawer
11. Vertical Transport Unit
12. Paper Feed Unit (Tray 1)
13. Tray 1 (Tandem Tray)
14. Paper Feed Unit (Tray 2)
15. Tray 2 (Universal Tray)
16. Used Toner Bottle: Holds used toner transported from the PCDU
development units, PCDU cleaning units, ITB cleaning unit, and PTR cleaning
unit. The machine can continue to print while the bottle is removed.
