Taurus-C1 Training
18
Slide 18

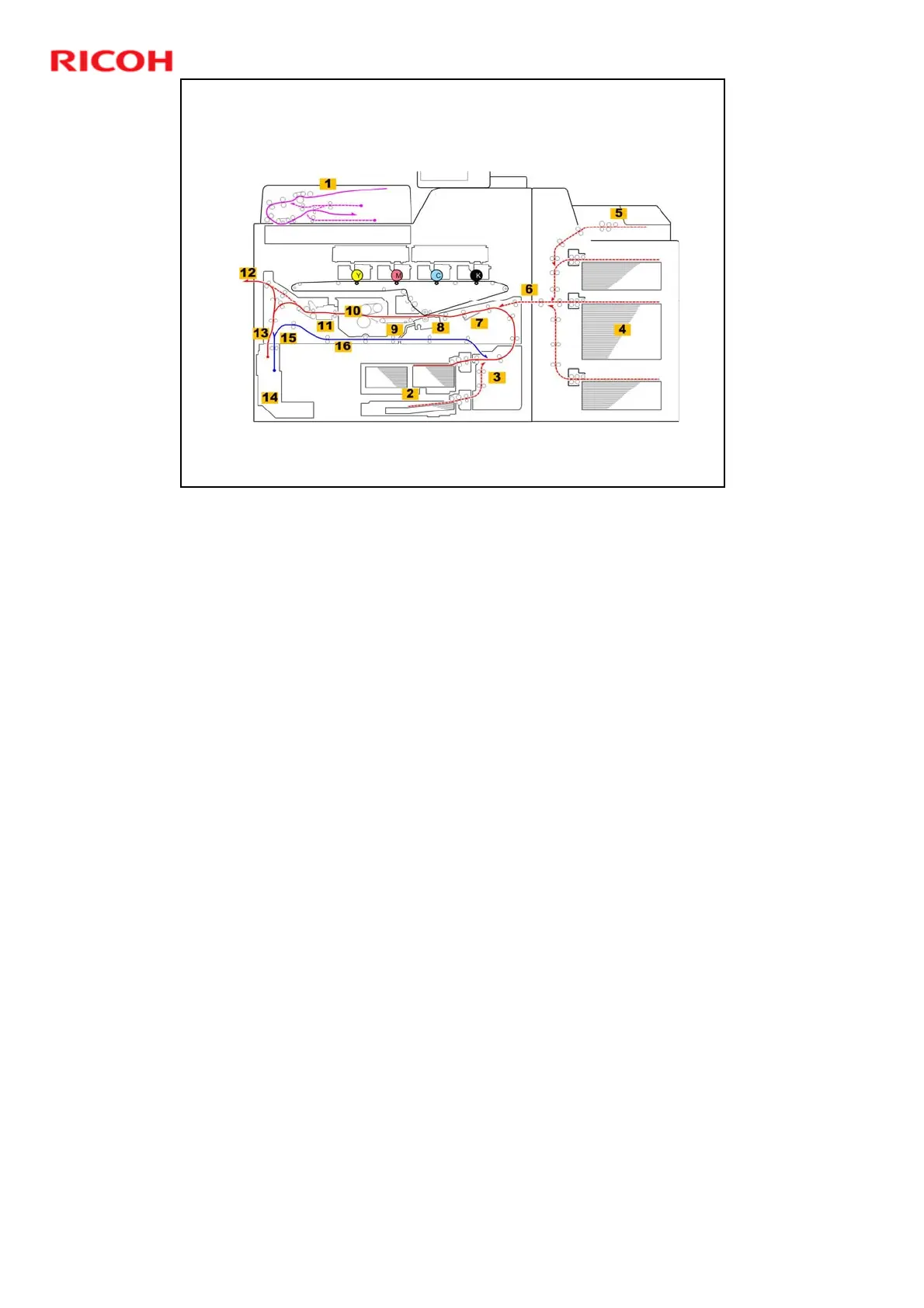

Paper Feed Paths
1. Original Path: ARDF (D074/D075 Only)
2. Paper Bank: Tray 1 (Tandem: 2,000 sheets), Tray 2 (Universal: 500 sheets)
3. Vertical Paper Path
4. LCIT: Tray 3 (1,000 sheets), Tray 4 (2,000 sheets), Tray 5 (1,000 sheets)
5. Multi Bypass Unit: Tray 6 (500 sheets)
6. Paper Entrance: From LCIT and Multi Bypass Unit (options)
7. Paper Registration Unit: Corrects paper skew and side-to-side registration for
all paper (including paper fed from the LCIT/Multi Bypass Unit)
8. Paper Transfer: Toner image transferred from ITB to paper
9. Transport Belt: Transports paper between paper transfer roller and fusing unit.
Three fans hold the paper in the paper path. Fans (not rollers) are used to hold
the paper in the paper path because the toner is not yet fused.
10. Fusing Unit: Fuses toner image to paper
11. Paper Cooling: Cools paper to reduce curl before it exits or descends to the
duplex paper path
12. Paper Exit: Common paper exit for all paper
13. Inverter/Exit Tray: Paper is fed into this tray, and reverse fed to invert it for
face-down output.
14. Purge Tray: Bottom of the inverter/exit tray. All paper in the paper path of the
main machine is shunted here when a jam occurs downstream.
15. Paper Invert/Switchback: Paper is stopped and reverse fed here to feed it
into the duplex paper path for printing the 2nd side of the sheet.
16. Duplex Paper Path: Transports paper back to the upper horizontal feed path
for paper registration and printing on the second side.
