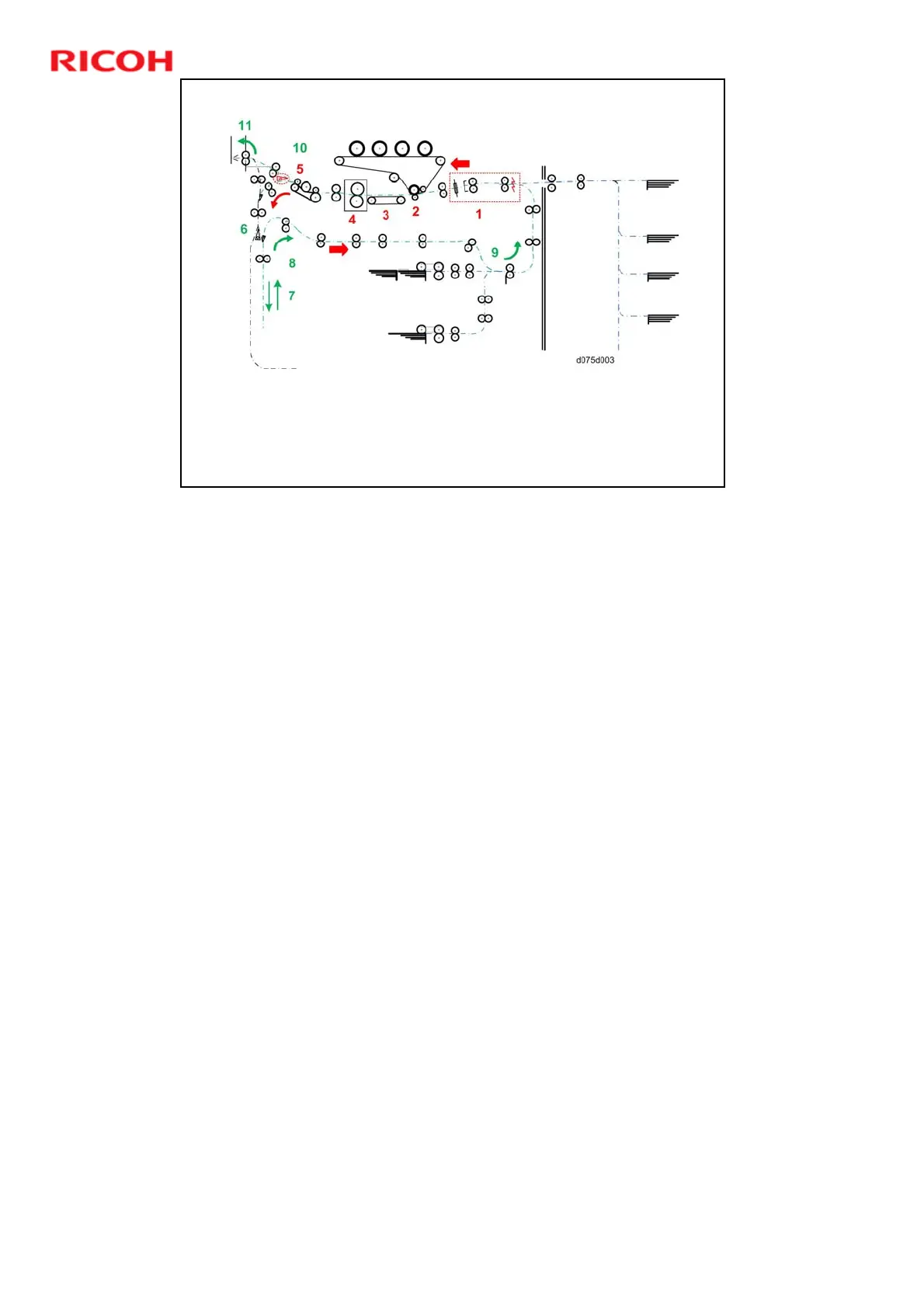

Paper Feed (Duplex)
(6) Inverter junction gate
(7) Inverter/duplex tray
(8) Duplex path
(9) Feed into the vertical transport path
(1) to (5), (10), (11): See the previous slide.
When the paper exits the paper cooling unit, the exit junction gate opens and
directs the paper to the inverter junction gate at (6). This junction gate directs
paper to the inverter/duplex tray (7). Here it is stopped and reversed fed into the
duplex path (8). (A small one-way junction gate guides it into the duplex
transport path.)
At (9), the paper descends and feeds into the vertical paper path. After
registration once again at (1), the back of the paper is printed and fused. After
the paper comes out of the paper cooling unit at (10), the exit junction gate
remains closed and the paper exits at (11).
