Taurus-C1 Training
20
Slide 20

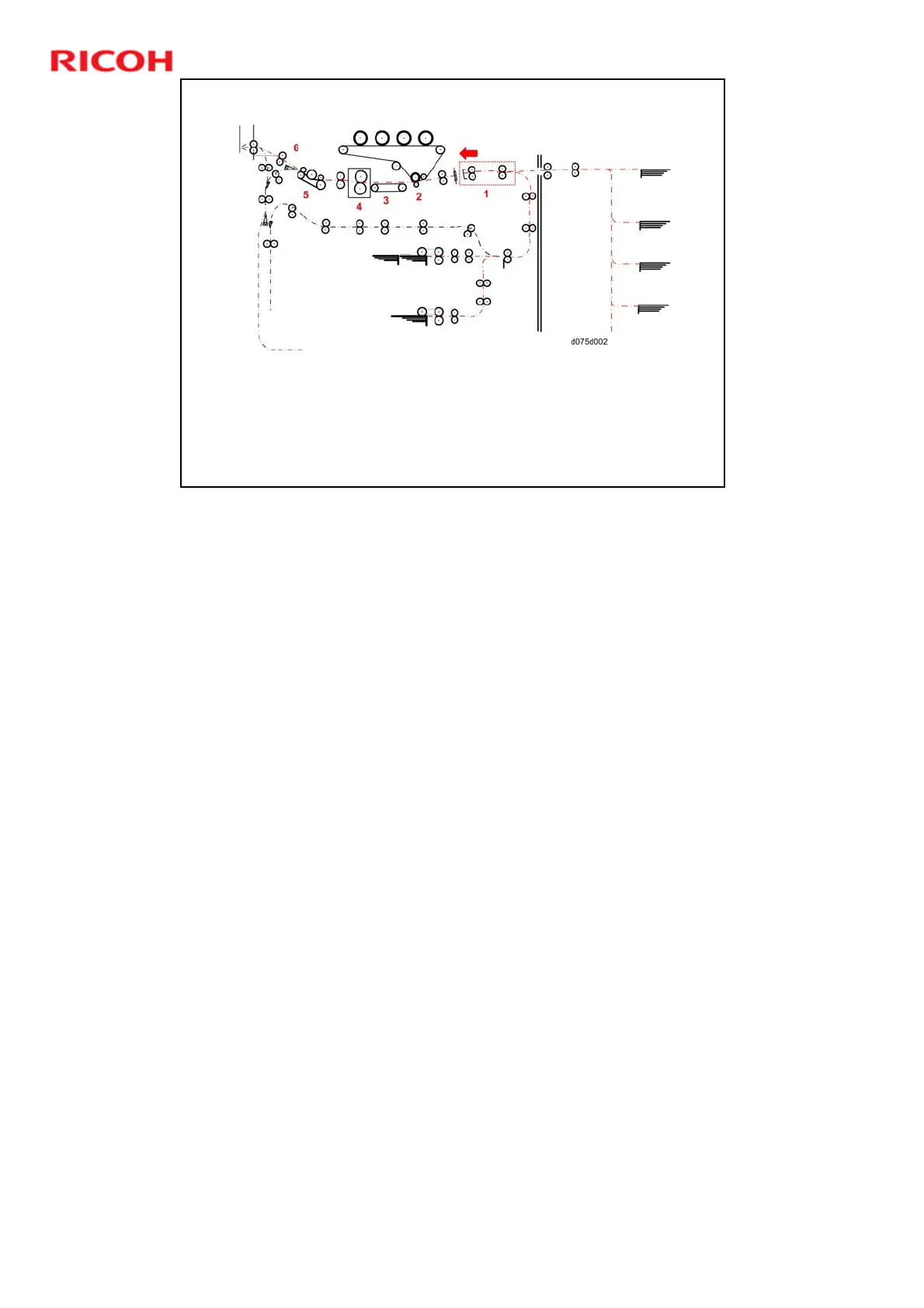

Paper Feed (Straight Through)
 (1) Paper registration for skew and side-to-side correction
 (2) Toner image transfer to paper
 (3) Transport to the fusing unit via transport belt
 (4) Fusing unit
 (5) Paper cooling unit, and over the exit junction gate
 (6) Paper exit for face-up delivery
No additional notes
