MO-C1 Training
Slide 109

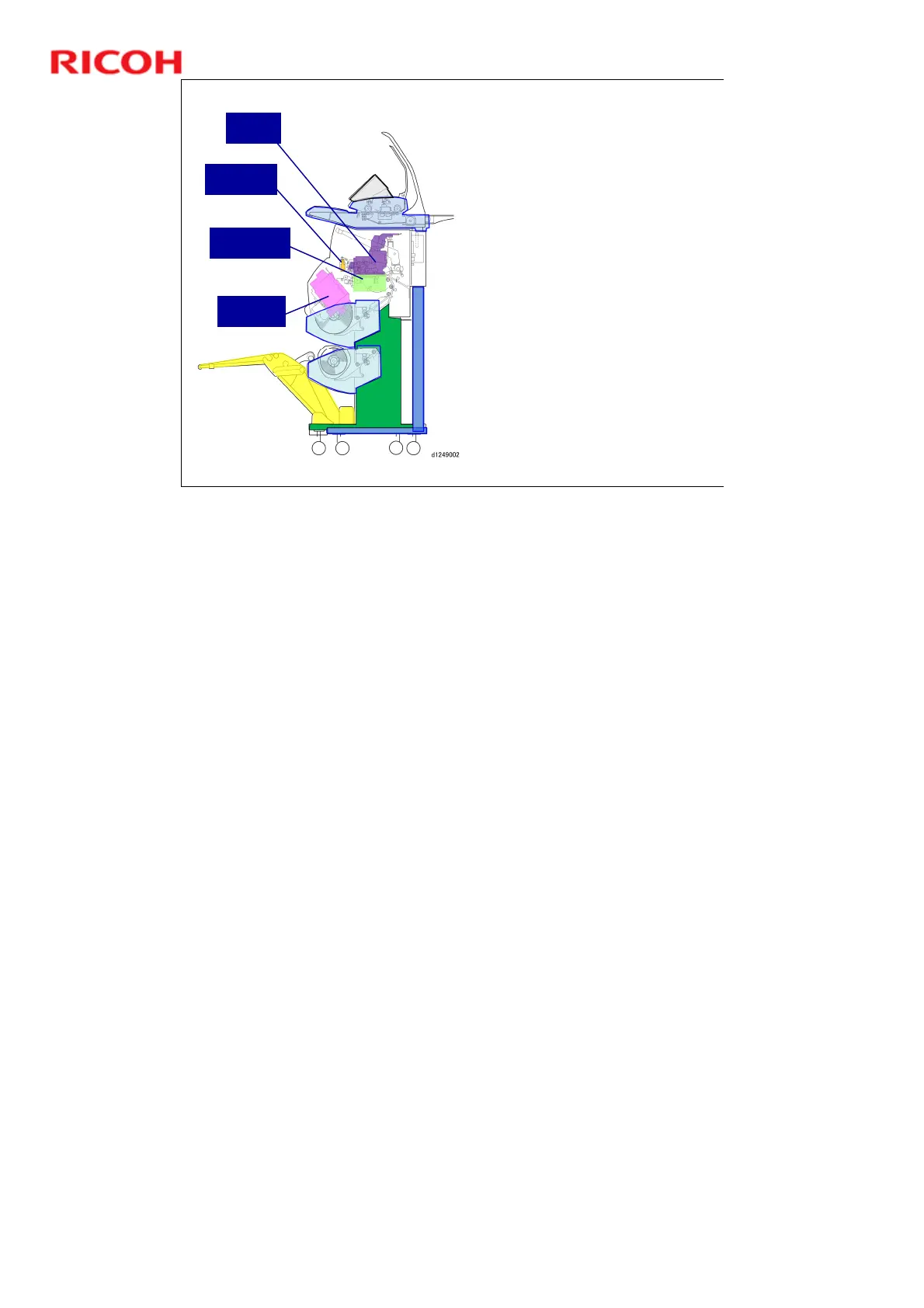

Main Unit Layout - 2
 The carriage unit contains
the print head units, and
sensors for monitoring ink
level, registration, and gap
between print head and
paper.
 The air release solenoid
purges air from the ink
supply system.
 The maintenance unit cleans
the print heads on the
bottom of the carriage unit.
 Two motors and three
sensors control the print
head cleaning cycle.
 The ink supply unit contains
the ink cartridges and ink
pumps that supply ink to
each print head.
Ink Supply
Unit
Carriage
Unit
Maintenance
Unit
Air Release
Solenoid
No additional notes
