MO-C1 Training
Slide 121
Staggered Print Heads - 2

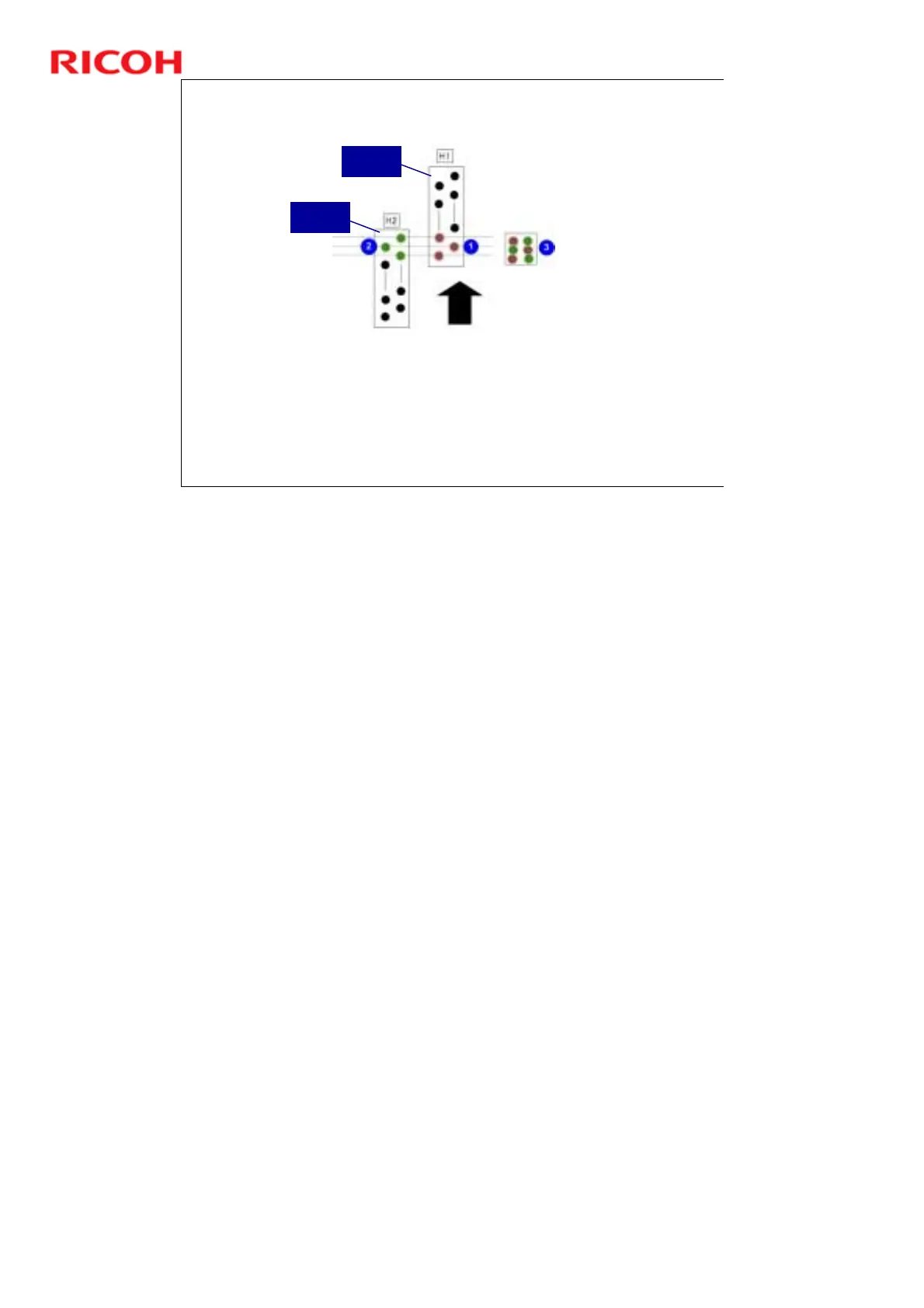

The K1 print head sits forward of the K2 print head in the
direction of paper feed.
Three nozzles at the rear section of K1 (1) and three nozzles at the
front section of K2 (2) overlap the same area on the paper.
However, the arrangement of the nozzle ports is staggered (3), so
the positions of the nozzles complement one another when ink is
put down on the paper.
K1 Print
Head
K2 Print
Head
