Print Head vs Print Head Unit
 This machine has 4 print heads (K1, K2, C, Y, M).
 There are two print heads for black (K1, K2) and one independent
print head for Cyan (C).
 Yellow and Magenta (YM) share one print head.
 There are 2 print head units. One contains the K1 and K2 print
heads, the other contains the C and MY print heads.

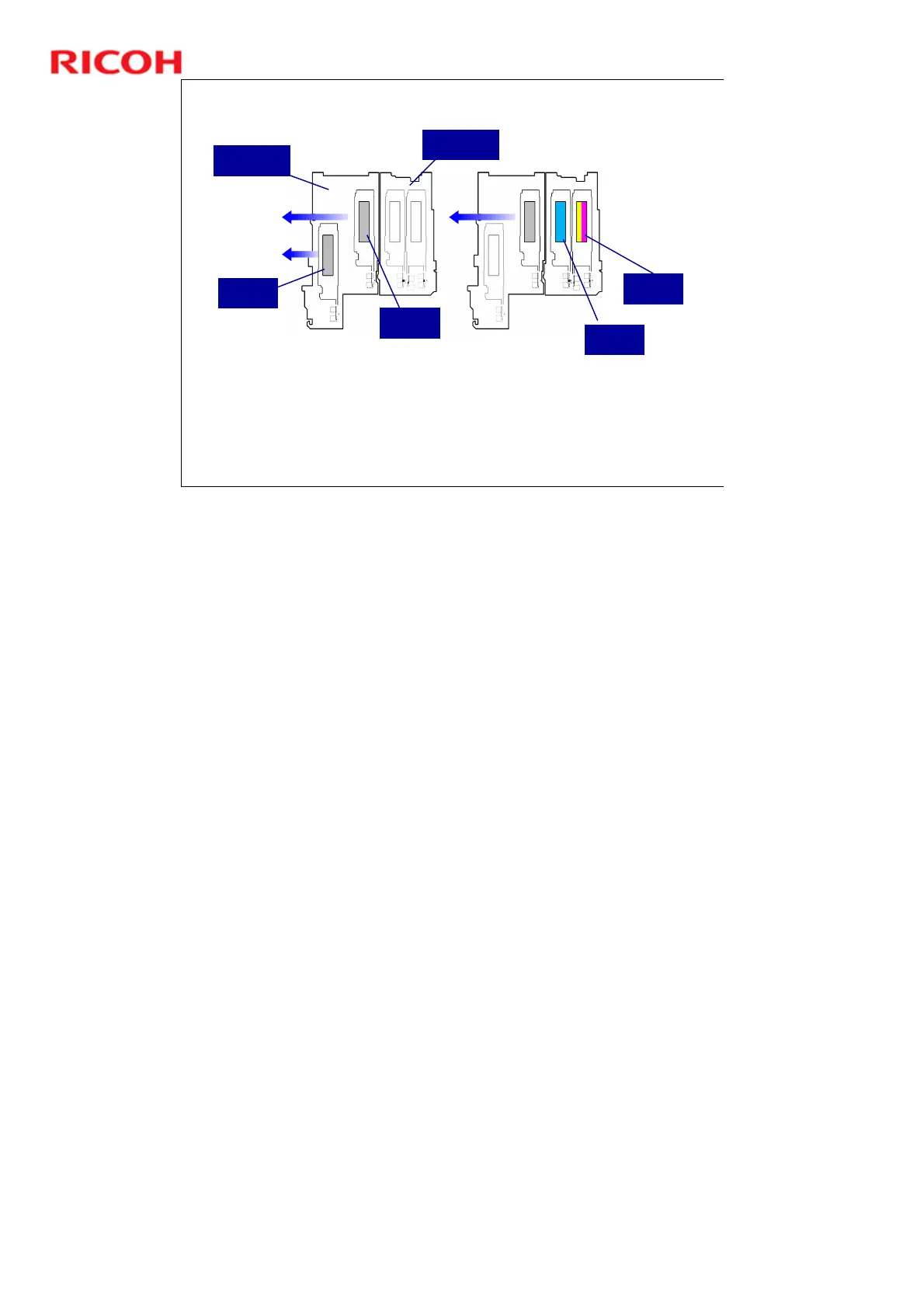

K1 Print
Head
K2 Print
Head
YM Print
Head
C Print
Head
Black Print
Head Unit
Color Print
Head Unit
