MO-C1 Training
Slide 123

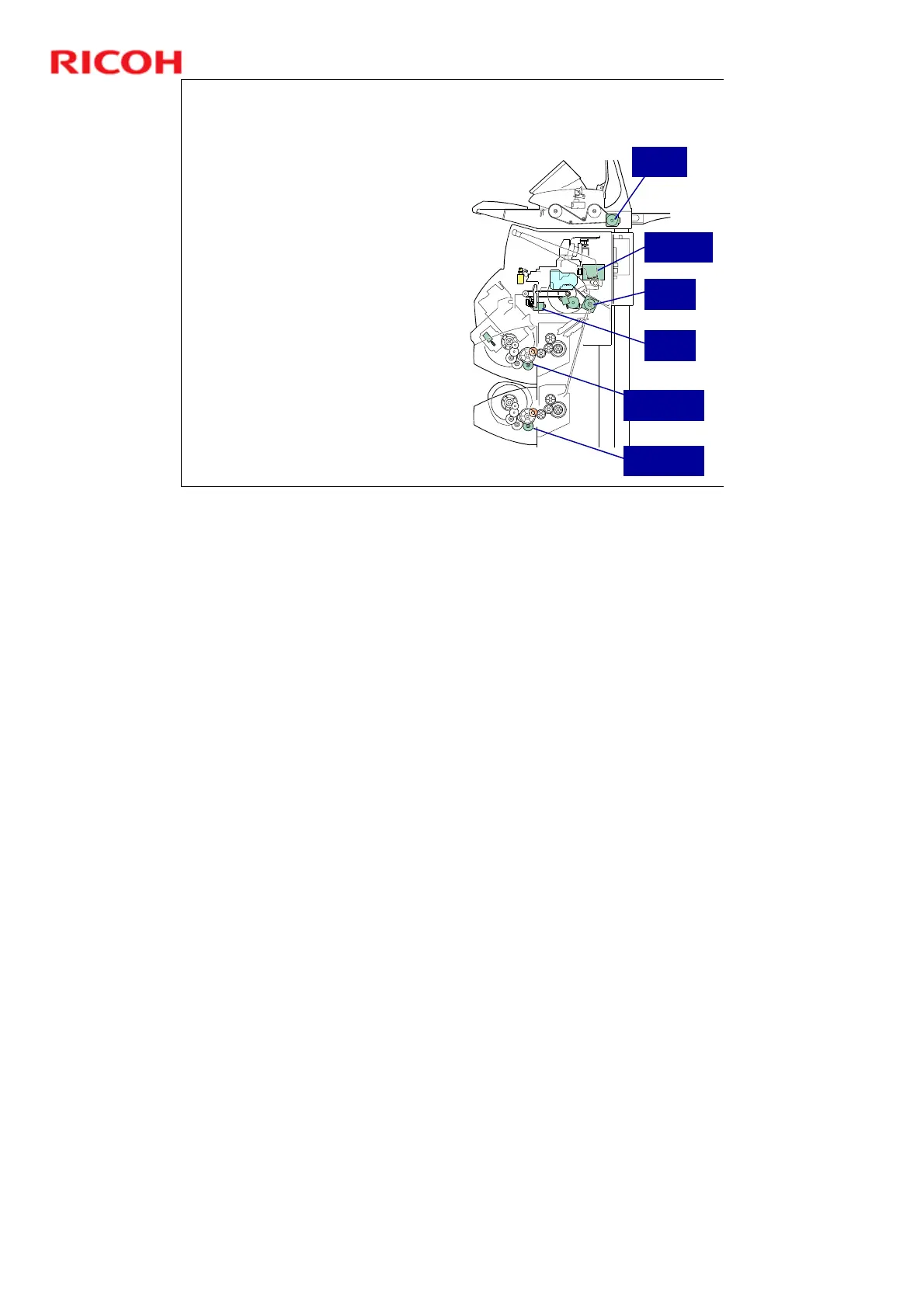

Drive Components - 1
Scanner motor: Drives the
original entrance rollers and
original exit rollers of the
scanner unit.
Horizontal motor: Drives the
timing belt that moves the
carriage unit to the left and
right during printing.
Vertical motor: Drives the
registration and paper exit
rollers in the main unit that
feed paper through the
printer.
Roll feed motor 1: Feeds
paper from Roll Unit 1.
Roll feed motor 2: Feeds
paper from Roll Unit 2.
Cutter motor: Drives the
circular cutter from left to
right during paper cutting.
Scanner
Motor
Horizontal
Motor
Vertical
Motor
Roll Feed
Motor 1
Roll Feed
Motor 2
Cutter
Motor
No additional notes
