MO-C1 Training
Slide 124

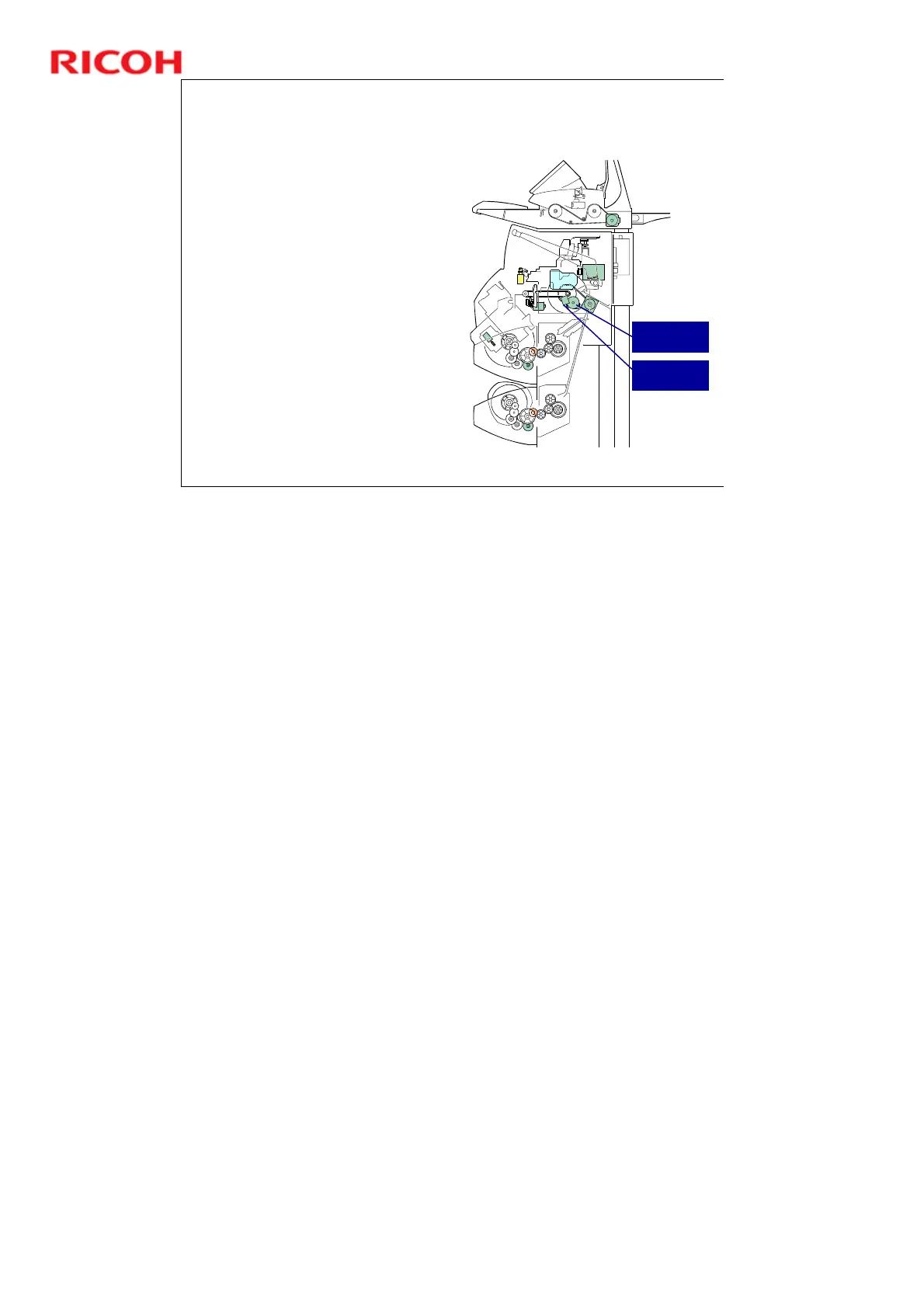

Drive Components - 2
 Maintenance motor (in the
maintenance unit):
 Lifts and lowers the left print
head cap to cap and uncap
the K1 print head
» The left print head cap is
also used for cleaning all
print heads, not just K1.
 Operates the waste ink pump
that sucks ink from the print
head being cleaned
 Maintenance lift motor (also in
the maintenance unit):
 Lifts the right print head cap
to cap and uncap the K2, C,
and YM print heads
 Moves the left print head cap
that holds the cleaning
components (suction cap,
wipers) to the front and rear.
Maintenance
Motor
Maintenance
Lift Motor
