Drive Components - 3
Ink pump motors (x5, one for each
print head): Drive the pumps that
supply ink to the print heads.
Air release solenoid: Purges air
from the ink sub tanks when
excess air is detected.
This one solenoid is used to
purge all the tanks. The heads
are moved sideways until the
required tank is opposite the
solenoid.
Head lift motor (on the right side of
the main unit frame, and controlled
by two lift sensors in the carriage
unit): Raises and lowers the
carriage unit to adjust the gap
between the paper and the print
heads for different thicknesses of
paper.
This prevents the print heads
from rubbing the surface of thick
paper during printing.

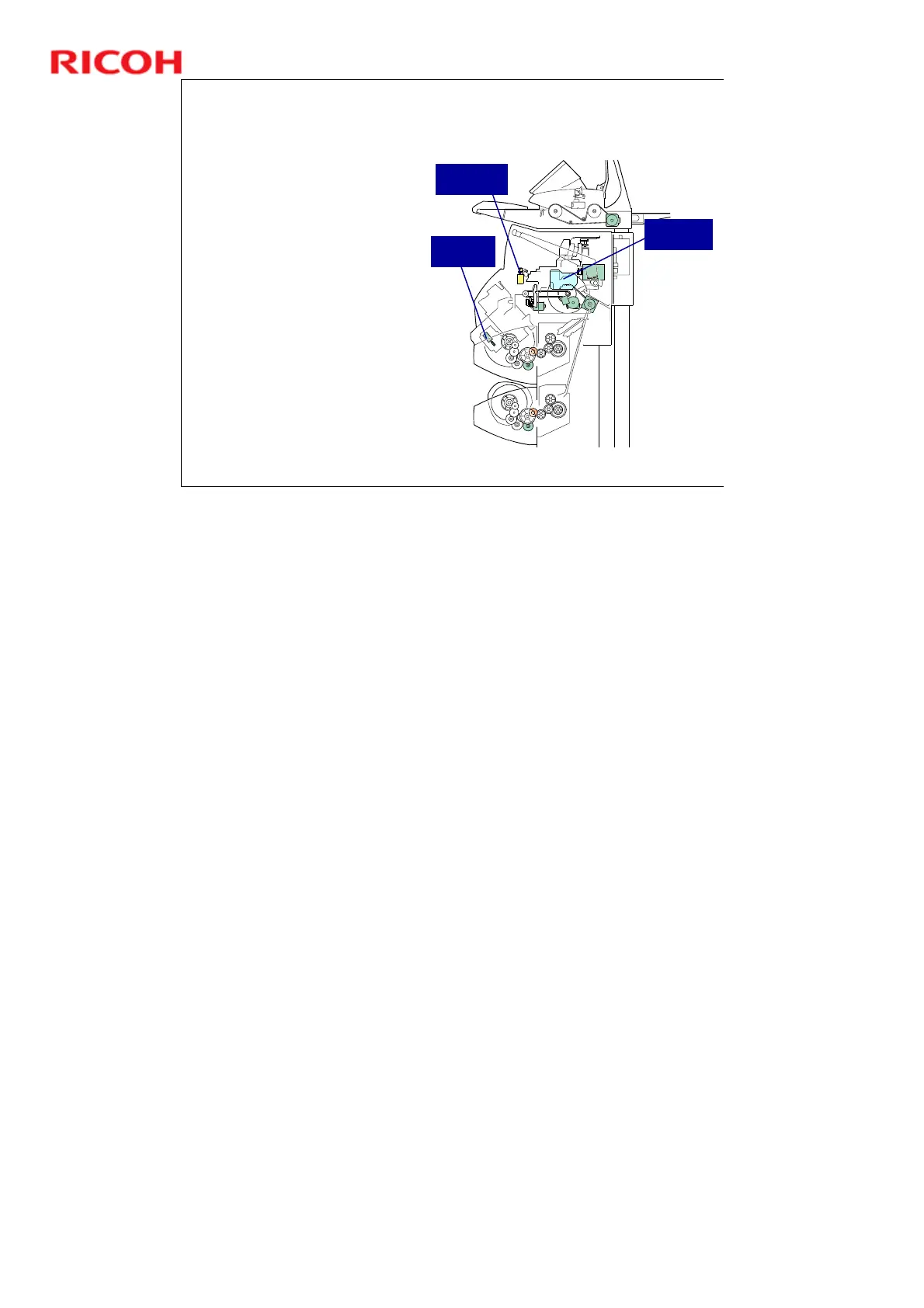

Head Lift
Motor
Ink Pump
Motors
Air Release
Solenoid
