Original Feed Paths
Original width sensors: Detect the width of the original on the original table.
Original set sensor: Detects when an original is set on the original table. Also
functions as an original width sensor.
Original registration sensor: Detects the leading edge of the original and stops the
original feed roller. The user can then manually make the original straight if it is out
of position.
This sensor also detects the leading and trailing edges of the original as it passes
during scanning.
Original exit sensor: Detects when the trailing edge of the original exits the scanner
unit.
The original exits to the upper exit if the original guide is installed, and exits to the
rear if the original guide is removed.

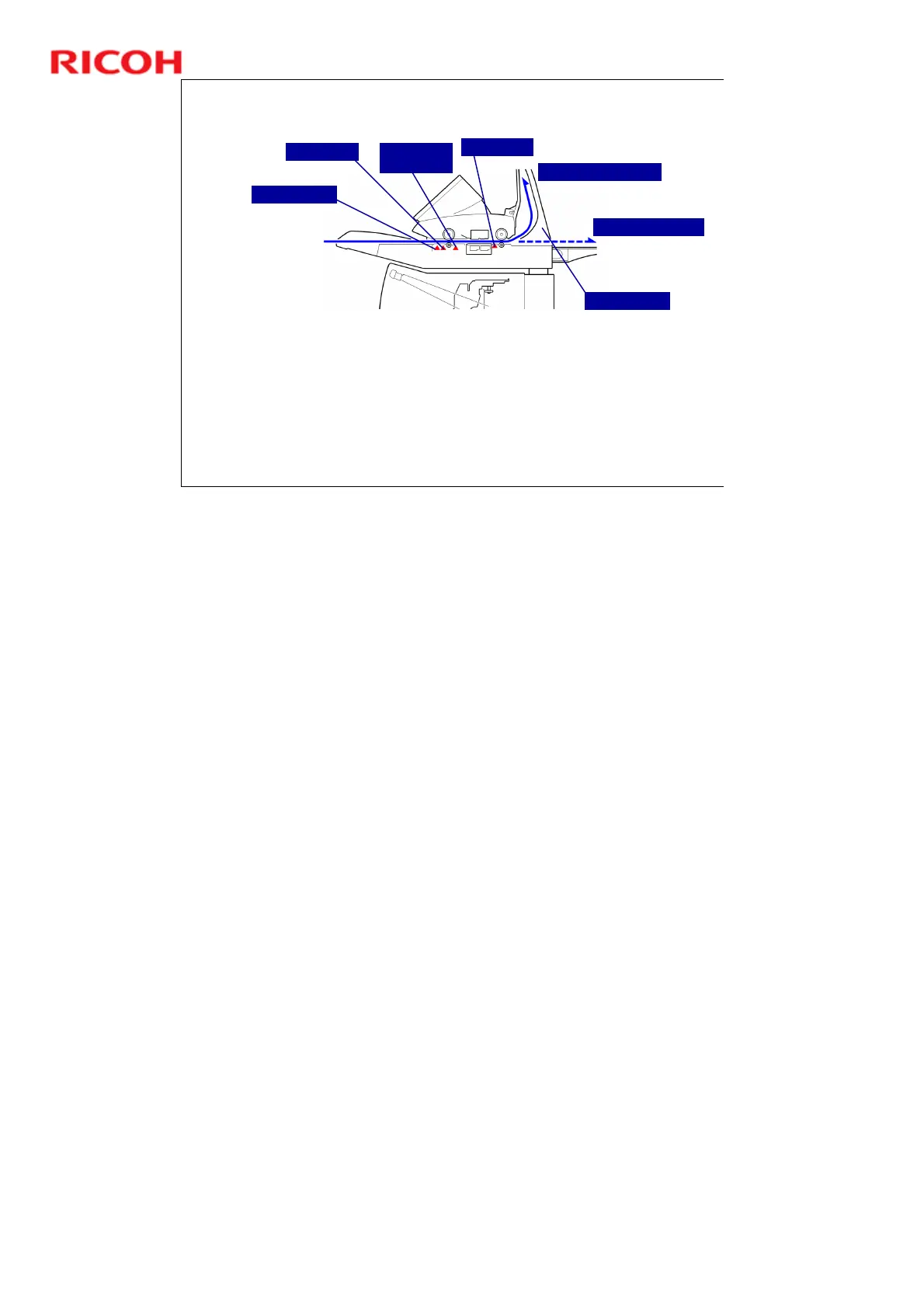

Width Sensors
Original Exit (Upper)
Original Exit (Rear)
Set Sensor
Exit Sensor
Registration
Sensor
Original Guide
