MO-C1 Training
Slide 15

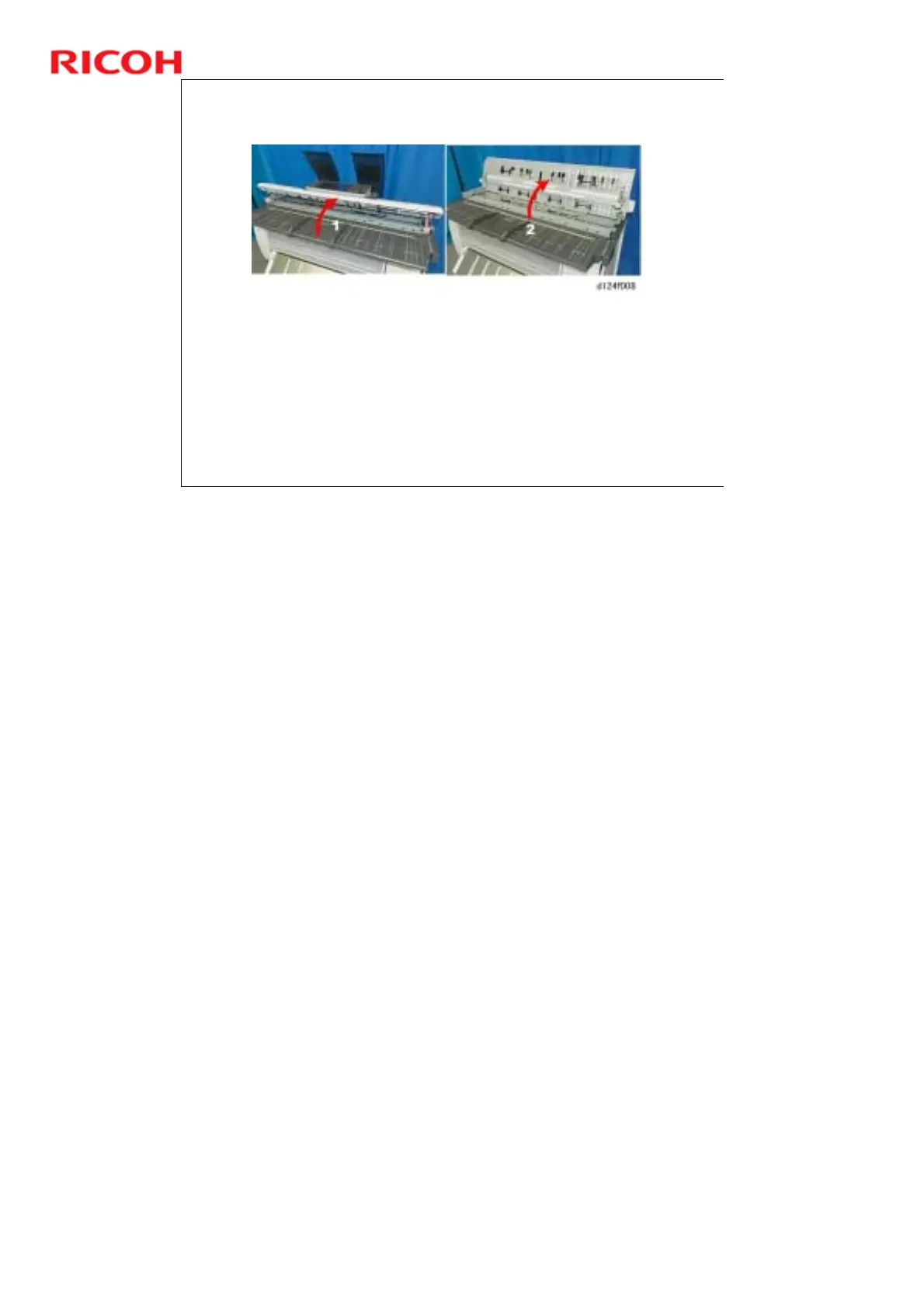

Scanner Unit Cover
 The scanner unit opens easily for removal of paper jams
(1).
 It can also be opened to the full vertical position (2) for
servicing
 This requires disconnection of the arms on the left and
right.
No additional notes
