Scanning Sequence - 1

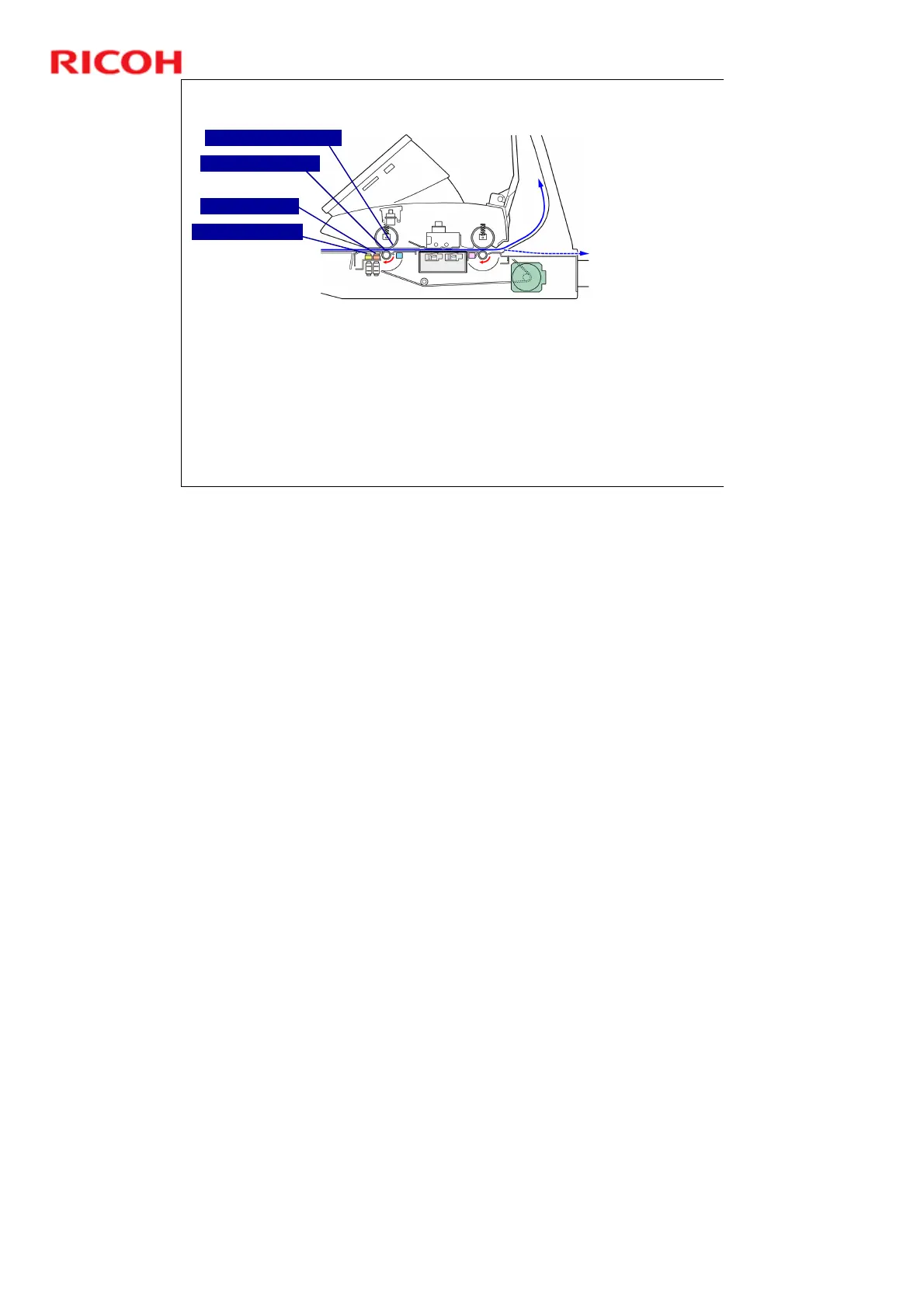

First, the original set sensor detects the leading edge of the
original and the original width sensors detect the width of the
original.
The original entrance roller grabs the leading edge, feeds it a
short distance and then stops for 1 second.
This is called Delay 1. This gives the operator time to set the
paper again if it is not perfectly straight.
Then, the original entrance roller feeds the original to the
registration sensor.
Original Width Sensors
Original Set Sensor
Original Entrance Roller
Original Registration Sensor
