Front Cover - 4

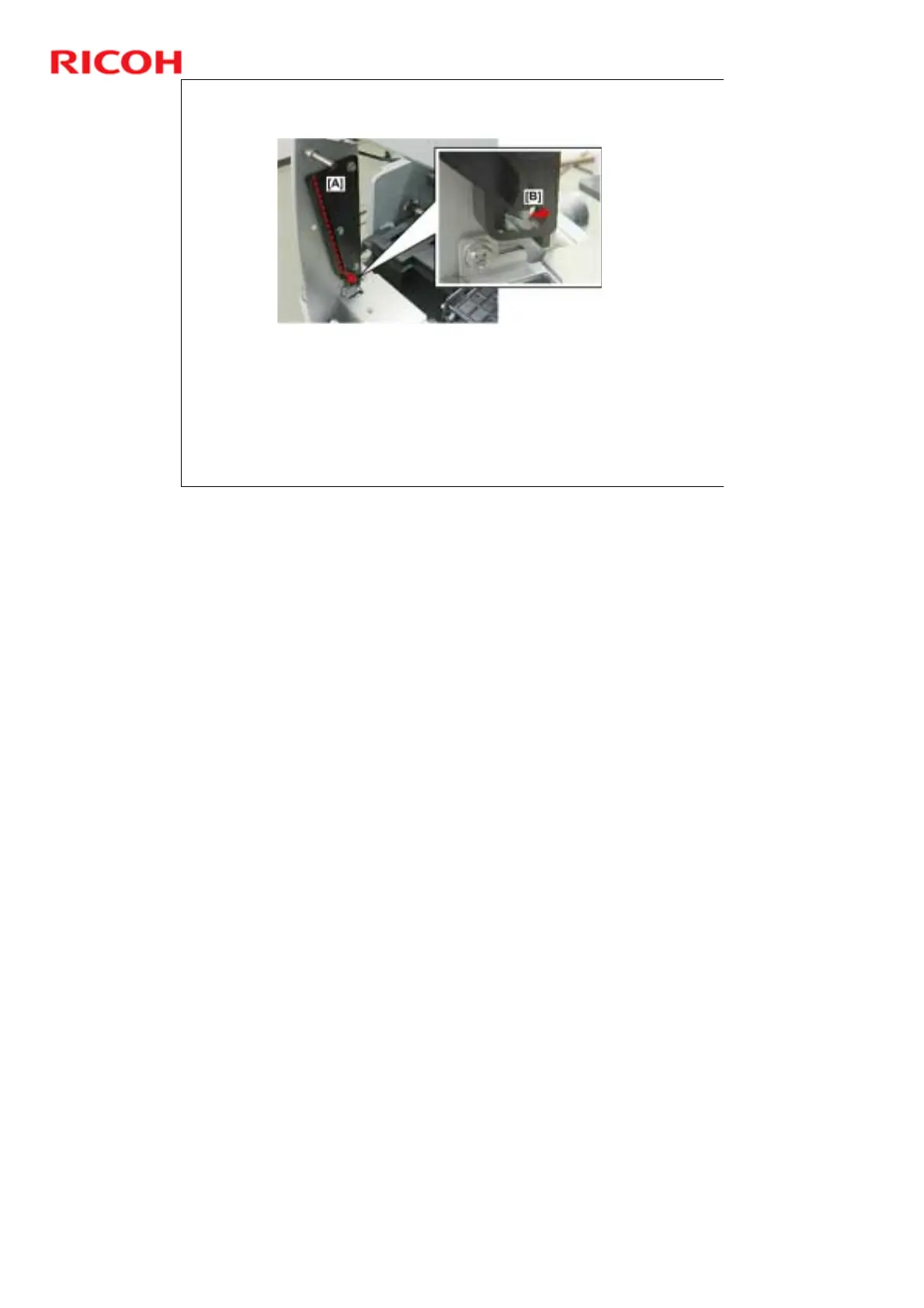

Front cover track switch: When the pin on the left of the
front cover is inserted correctly into its track [A], it slides
down and pushes a micro-switch [B] to the rear. This
signals that the front cover is installed correctly.
If the switch stays open when the front cover is down, this
indicates that the cover is not correctly set in the track.
