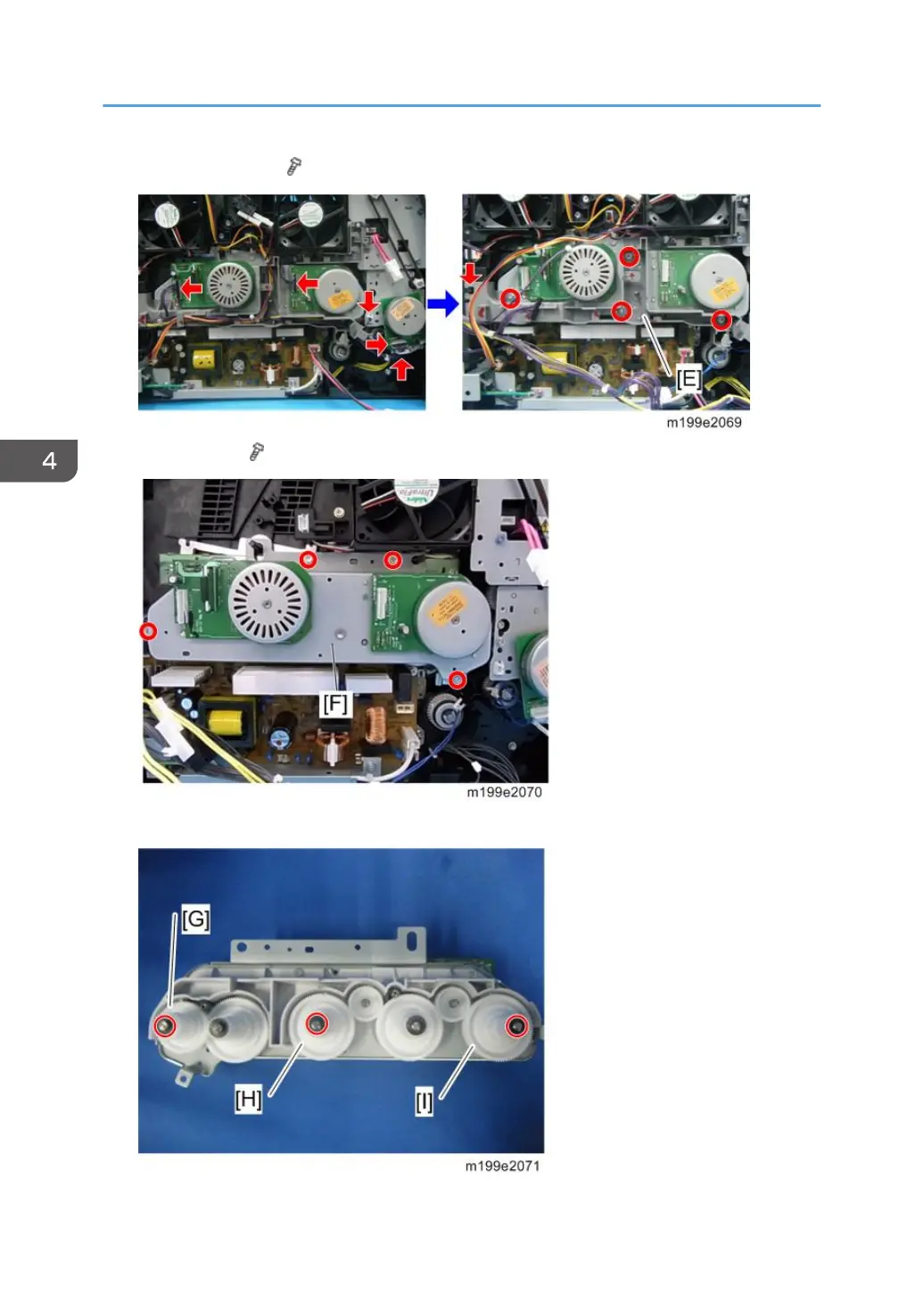

6. Harness guide [E] ( ×4, hook × 1)

7. Drive unit [F] ( × 4)

8. ITB gear [G], Color AIO motor [H] [I] (snap ring × 1 each)

4. Replacement and Adjustment

64
