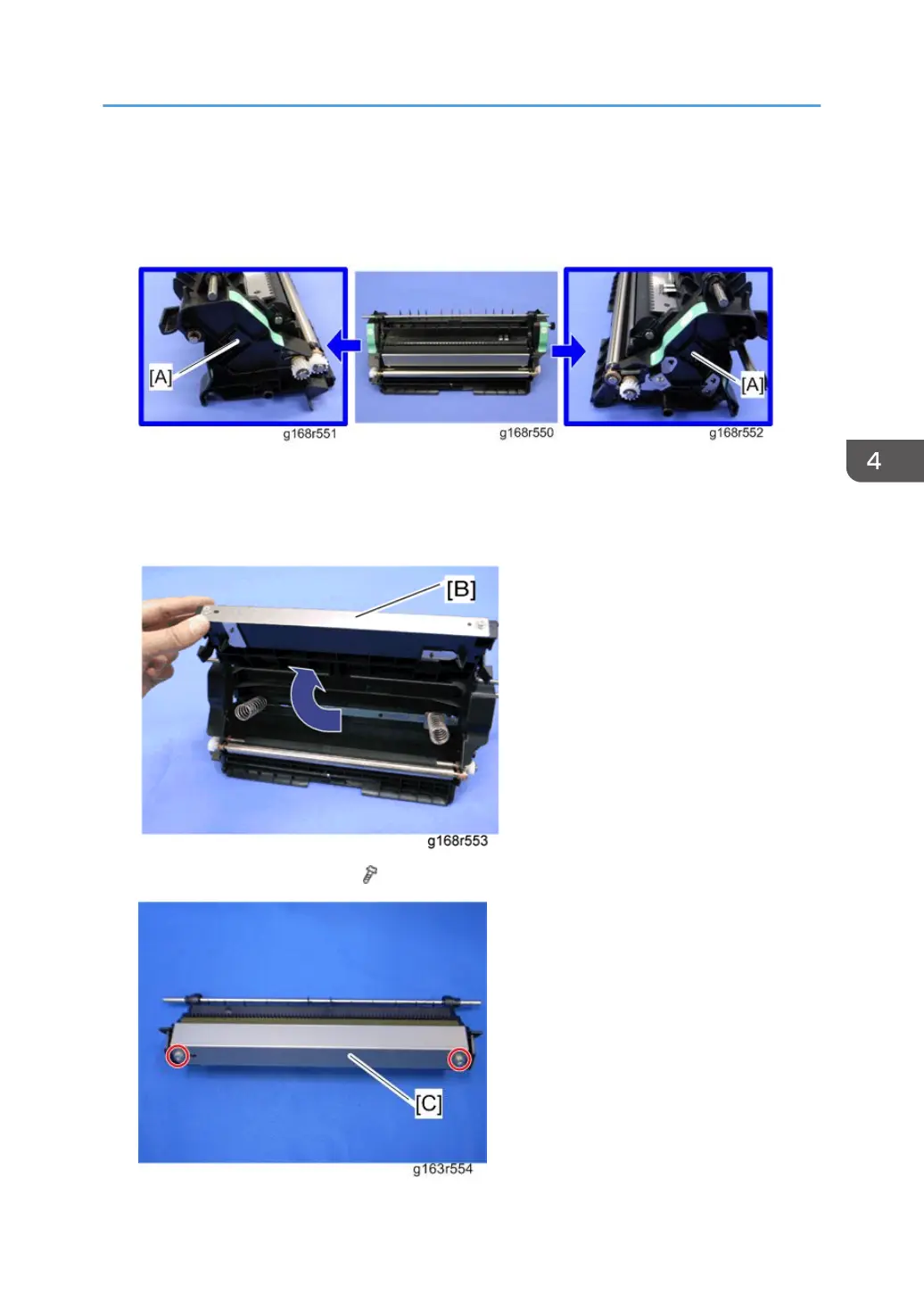

2. Release the two hooks [A] at both sides of the transfer unit.

3. Open the transfer roller unit [B] and remove it.

4. Transfer roller assembly [C] ( × 2)

Paper Transfer

79
