INSERTING THE BATTERY
The camera will not operate unless the battery is installed. It is important to make

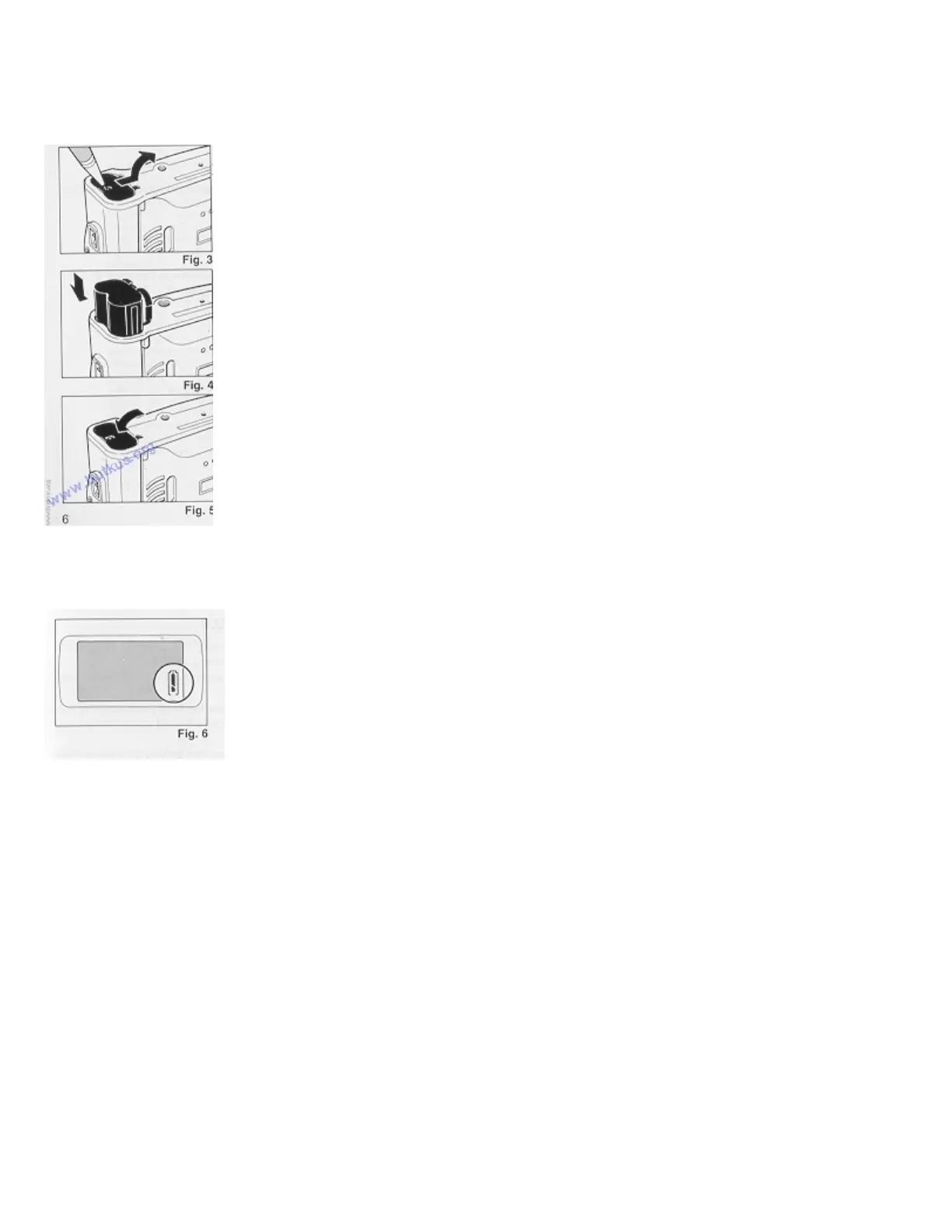

sure that the battery is installed correctly. 1. Push the Battery Compartment Cover
Latch by a pen etc. in the direction of the arrow and pull open the cover. (Fig. 3)
2. Insert the 6 volt lithium battery, checking that + and - on the battery are lined up
correctly according to the polarity diagram inside the battery compartment. (Fig. 4)
3. Close the Battery Compartment Cover by pushing it in the direction of the arrow.
(Fig. 5)4www.butkus.org
* When the battery is inserted correctly, the Battery Condition Mark WE appears
on the LCD Control Panel when the Lens Shield is opened. (Fig. 6)
* When replacing the battery, do so as quickly as possible, and avoid having film
inside the camera.
* Do not remove the battery from the camera unless it is to be replaced with a new
one.
4www.butkus.or g
Battery for use
Lithium battery (6 V) Panasonic CR-P2DR
