Ricoh THETA X User Manual

4
Before Use
1

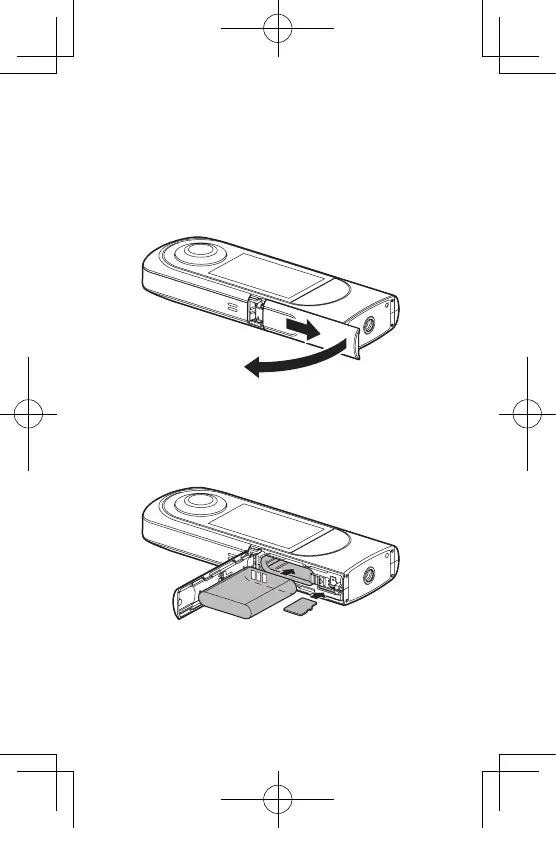

Check that the power of the camera is off.
2
Slide the battery/card cover in the direction of
the arrow to open it.
3
Check that the orientation of the battery is cor‑
rect, and insert it all the way while pushing the
latch sideways.
To remove the battery, slide the latch.
4
Check that the orientation of the memory card is
correct, and insert it.
Use a commercially available microSDXC card (64 GB
or higher, UHS-I).
Receptor4.0_QSG.indb 4 2021/09/06 14:13:32

Ricoh THETA X Specifications

General

Type	360-degree camera
Bluetooth	Bluetooth 5.0
GPS	Yes
Microphone	Built-in stereo microphone
Effective Pixels	Approx. 48MP
Still Image Resolution	11K (11008 x 5504)
Video Resolution	5.7K: 5760 x 2880 / 30 fps
Lens	F2.4 (fixed)
ISO Sensitivity	ISO 100 to 3200
Storage Media	Internal 46GB
Display	2.25-inch touchscreen
Wi-Fi	IEEE 802.11 a/b/g/n/ac
External Microphone	Yes
Battery	Lithium ion battery (built-in)
Dimensions	51.7mm x 136.2mm x 29.0mm
Weight	Approx. 170g
