F. PLATFORM OPERATING VOLUME
Refer to Figure 1-2. The useful lift operating volume is represented in the figure by the rectangu-
lar volume shown in phantom outline. It is centered above the platform. Refer to Table 1-2 for
the dimensions that correspond to your lift model.
TABLE 1-2: K-SERIES OPERATING VOLUME DIMENSIONS, inches (mm’s)
MODEL A B C
K1203 30 (762) 51 (1,295) 30 (762)
K1205 32 (813) 51 (1,295) 30 (762)
K2003 30 (762) 51 (1,295) 30 (762)
K2005 32 (813) 51 (1,295) 30 (762)
K5005 32 (813) 51 (1,295) 30 (762)
K5010 34 (864) 56 (1,422) 30 (762)
END OF TABLE
UNOBSTRUCTED PLATFORM
OPERATING VOLUME
B
C
A

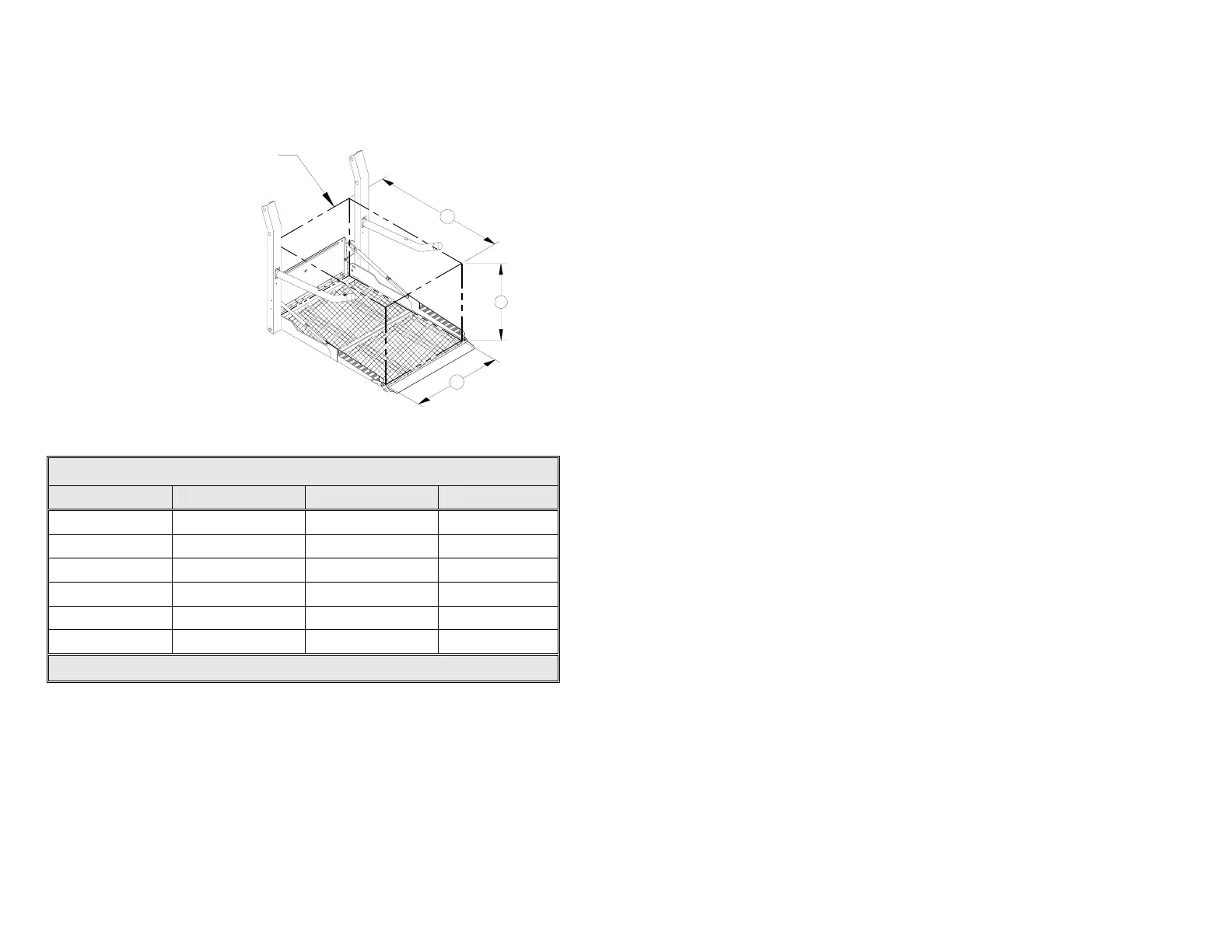

FIGURE 1-2: PLATFORM OPERATING VOLUME
