32DSSK03.B
2 - 12
c. Refer to Figure 2-12. Open release valve by turning it 1/4 turn counter-clockwise and
platform will begin to lower.
d. Refer to Figure 2-13. When platform reaches level of interior floor turn valve clock-
wise to close; do not over-tighten valve
. Do not lower platform below vehicle floor
level. The rear edge of bridgeplate must rest flat on vehicle floor.
e. Load Passenger
Carefully place wheelchair in center of platform, facing outward (away from vehicle),
and lock wheelchair brakes.

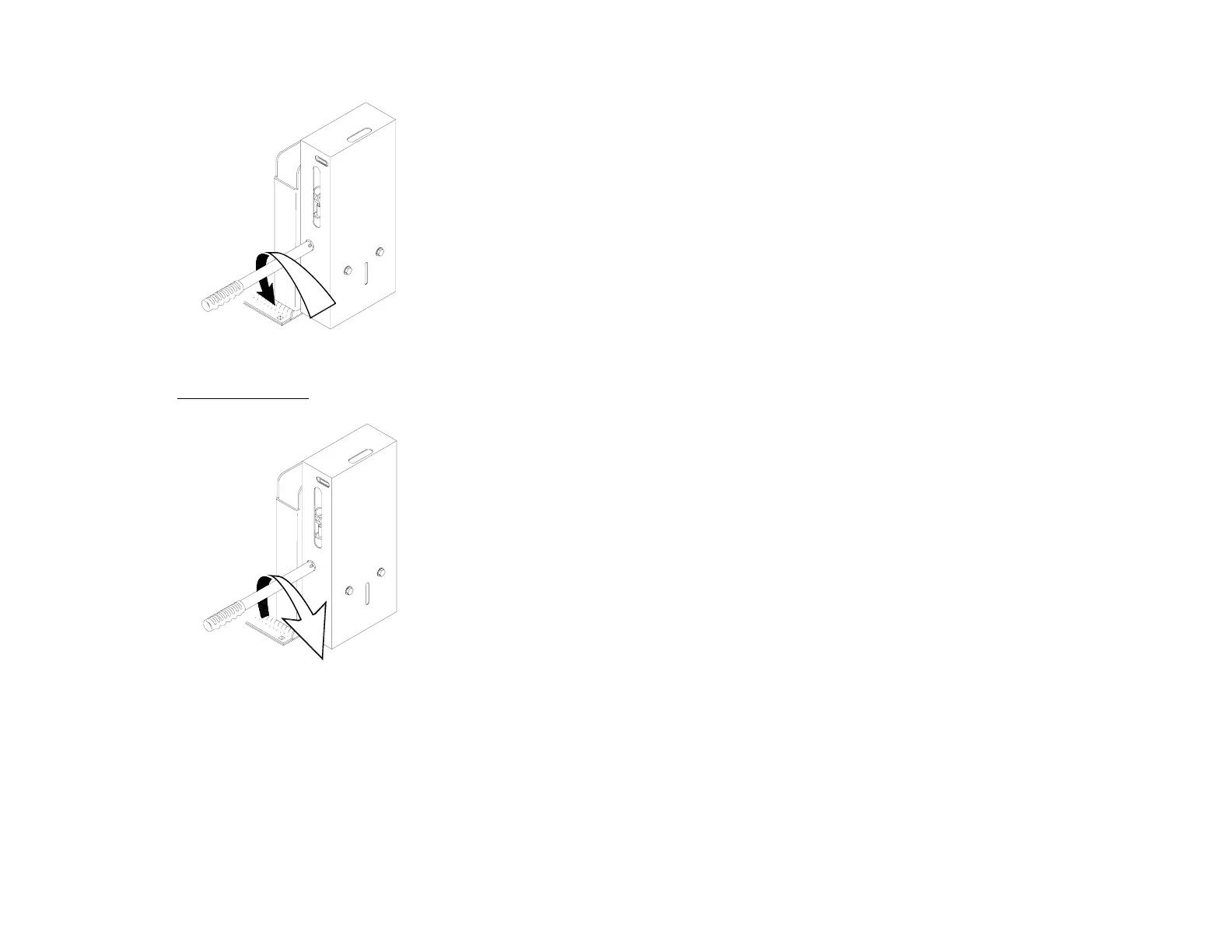

FIGURE 2-12: OPEN RELEASE VALVE
FIGURE 2-13: CLOSE RELEASE VALVE
