Ridetech RidePRO e3 User Manual

12
TANK
MENU
21 3
+
+
-
-
+
+
-
-
Air Distribution Block
LRD RRD
LRU RRU
LFD RFD
LFU RFU
Storage Tank
Primary Compressor
Secondary Compressor
+12VDC
R
E
T
A
B
T
Y
SWITCHED +12VDC (IGNITION)
BLACK-TO CHASSIS OR BATTERY GROUND
GREY
BLUE
RED
YELLOW
BLACK
RED
BLACK
RED
BROWN - RF
GREEN - LF
YELLOW - RR
WHITE - LR
PINK
Air Pressure Sensors
+12VDC
+12VDC
Rear:
Blue - Left Inflate
Black - Right Inflate
Pink - Left Deflate
Orange - Right Deflate
Front:
Green - Left Inflate
Yellow - Right Inflate
Brown - Left Deflate
Grey - Right Deflate

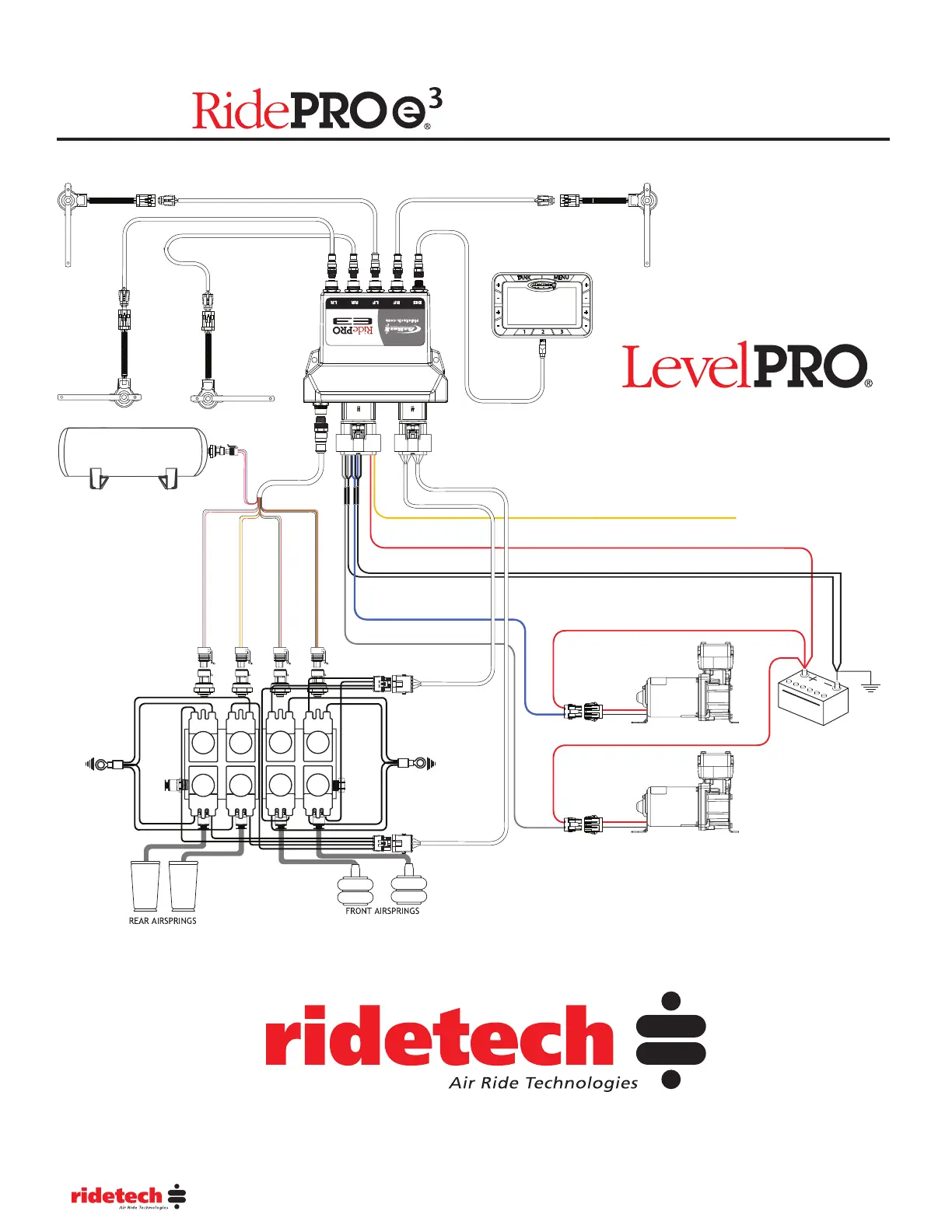

Wiring Diagram
Shown with
upgrade
