8

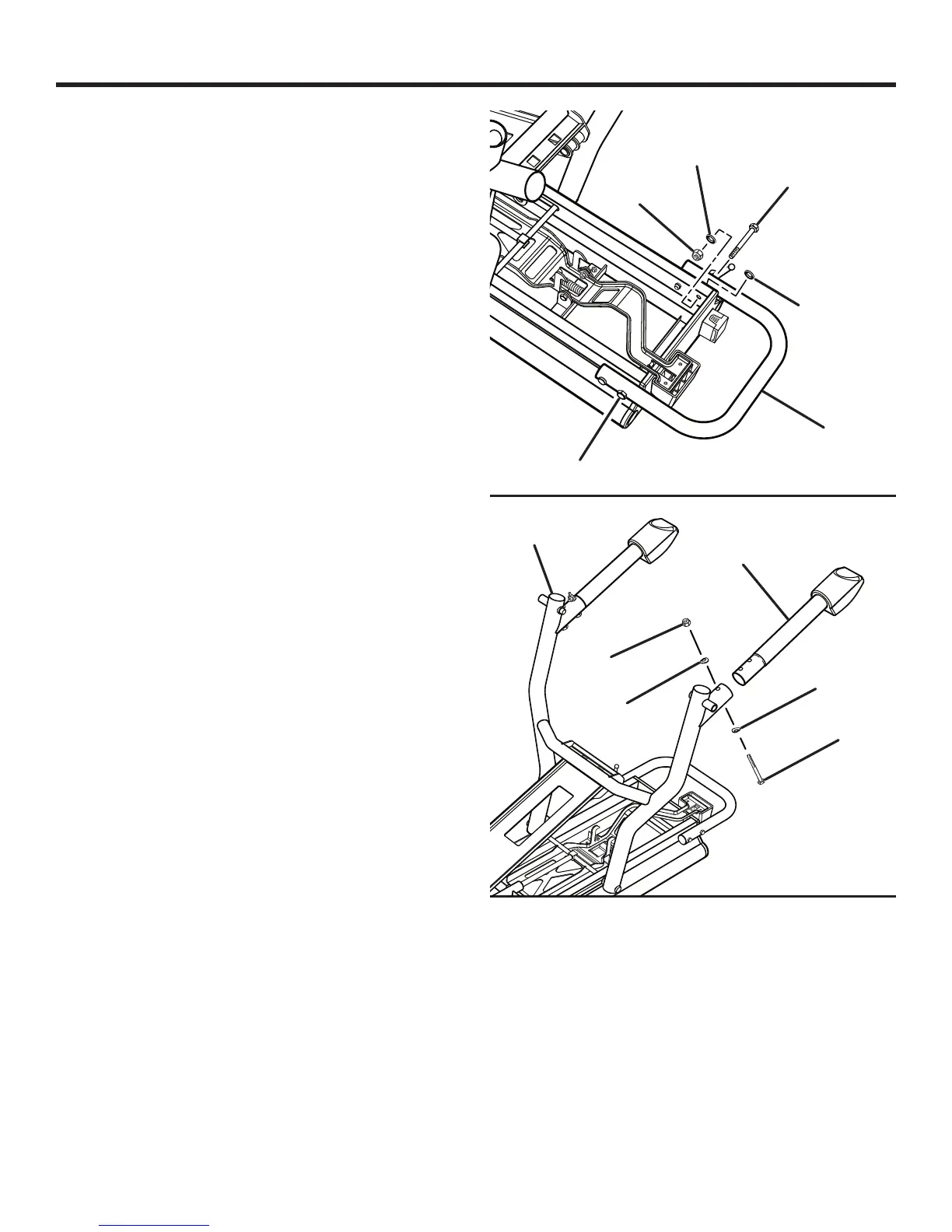

Fig. 6
ASSEMBLY
SECURING THE LIFT ASSIST HANDLE
See Figures 5 - 6.
Insert hex bolt into hole on each side of handle but do
not insert through stand table.
Insert plastic washer between handle and stand table onto
the bolt. Push bolt through the hole in the stand table.
Place a washer and lock nut over each bolt and secure.
Do not overtighten.
ATTACHING THE LEG SUPPORTS
See Figure 7.
Insert leg support into wheel leg set with foot peddle side
facing down toward lift assist handle. Align the two holes
in the leg support with the holes in the assembly.
Place a spring washer over the hex bolt and insert up
through each leg hole.
Place a spring washer and lock nut over end of each bolt
and secure.
Repeat on other side.
LIFT ASSIST
HANDLE
HEX BOLT
WASHER
LOCK NUT
HEX BOLT
Fig. 7
LEG SUPPORT
SPRING
WASHER
LOCK
NUT
SPRING
WASHER
HEX BOLT
PLASTIC
WASHER
WHEEL LEG
SET
