MediorNet TDM 7.2 User Manual I00

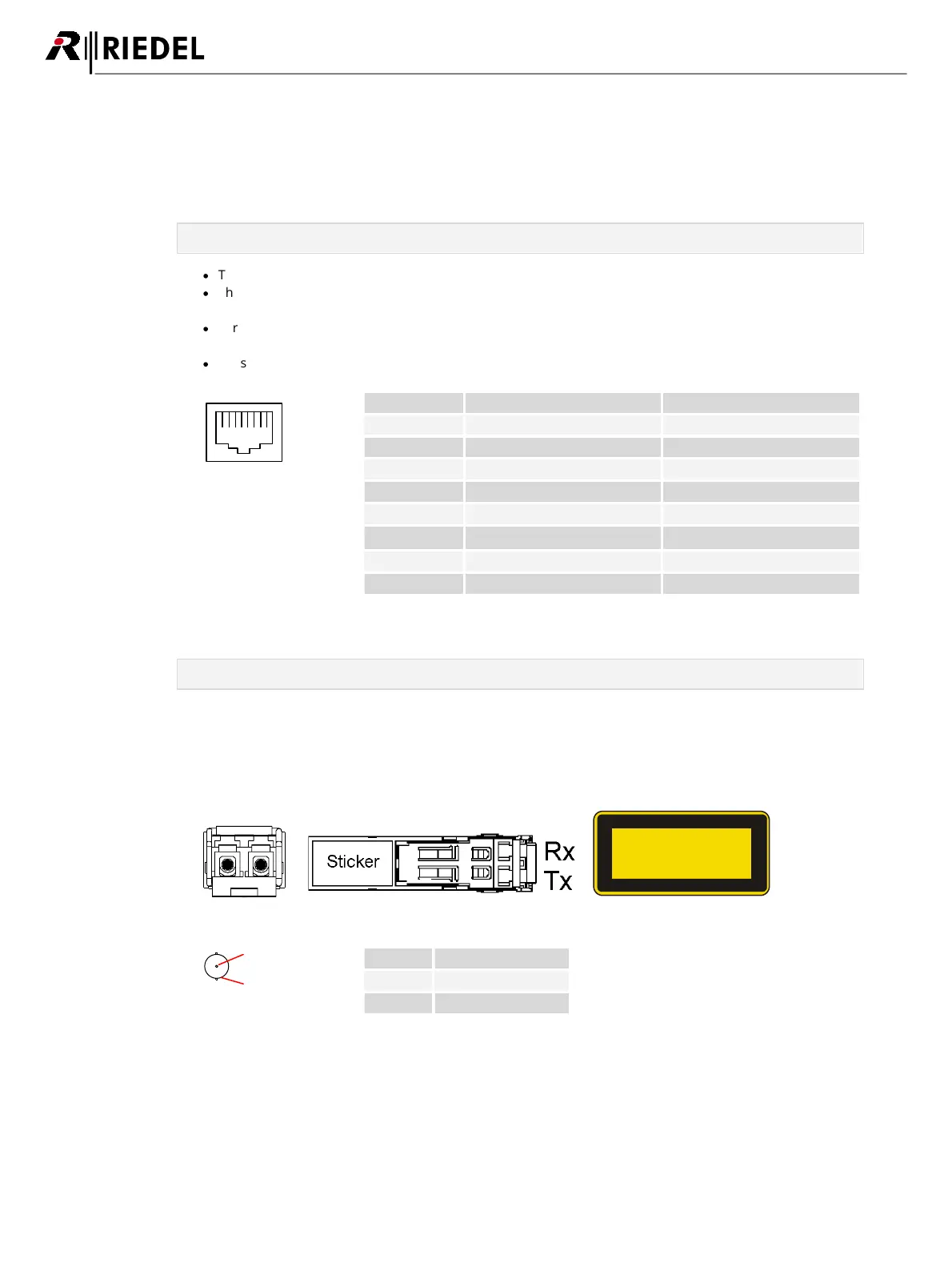

4.2 Ports / Pinouts
This chapter shows all ports / pinouts of all MediorNet devices.
General connectors that exist on multiple devices are listed in this chapter.
Connectors of specific cards or devices are listed in the respective sub-chapters.
ETHERNET & CONFIG/MGMT port
· The ETHERNET port connector is used to tunnel electrical Ethernet over the MediorNet network.
· The CONFIG / Management port is used to configure the system. To configure the frames it is sufficient to
connect a PC to one frame. All other frames are configured over the fiber-network.
· For a direct connection to a PC or to a network switch, use any standard (straight-through) network patch
cable.
· These ports are 1000Base-T compatible.
1 8
Pin
Signal
Standard color
1
BI_DA+
orange/white
2
BI_DA-
orange
3
BI_DB+
green/white
4
BI_DC+
blue
5
BI_DC-
blue/white
6
BI_DB-
green
7
BI_DD+
brown/white
8
BI_DD-
brown
figure 274: Ethernet & Config/MGMT port RJ-45pinout (8P8C)
MADI port
The MADI ports are used to interface the MediorNet frame to an Artist-mainframe or external MADI
equipment. Each MADI port supports up to 64 bidirectional audio channels. The optical MADI port supports
single-mode and multi-mode SFP transceivers.
The original SFPs available from Riedel are highly recommended for use with the MADI Port as they provide
the proper optical budget for other MADI devices.
TX RX
LASER CLASS 1M PRODUCT
APPAREIL A LASER DE CLASSE 1M
LASER KLASSE 1M PRODUKT
figure 275: SFP (front view, top view)
2
1
Pin
Signal
1
signal
2
GND
Z = 75 Ω
figure 276: MADI in/out port BNC pinout
