1200 Series SmartPanels 1.1 User Manual
01-000HB03EG-B00
2.3
Lever Key Numbering
The lever keys are numbered as follows:

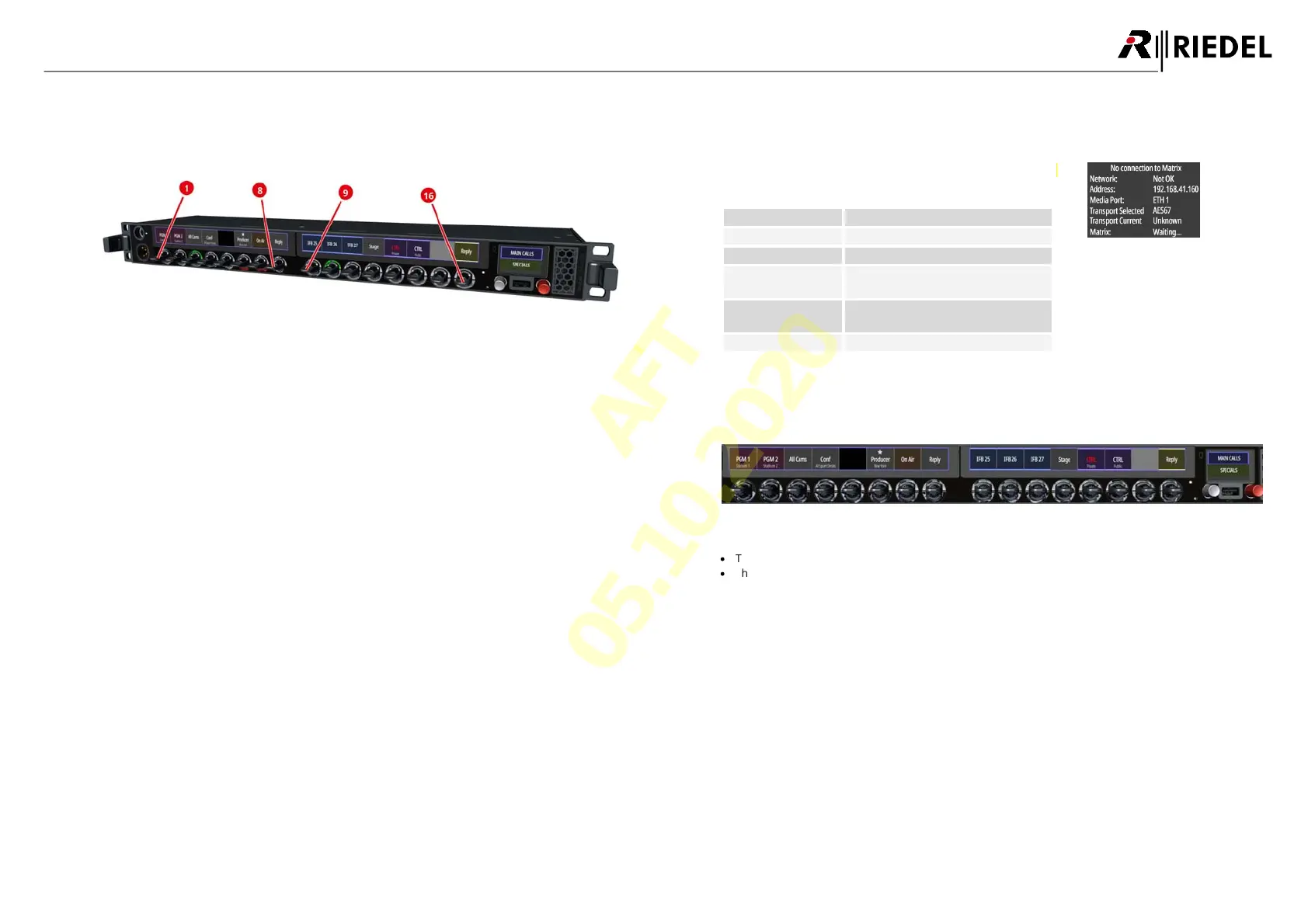

figure 10: Numbering of lever keys (RSP-1216HL)
2.4
Power-Up
Connect the RSP-1216HL with the mains voltage and wait until the SmartPanel has booted.
If the SmartPanel is not connected to a matrix, you will see the
following contents in the info display on the right:
Info-display
Function
Network
State of the audio network.
Address
IP address of the AES67 port.
Media Port
Selection of the Ethernet-port that is
connected to the AES67 network.
Transport Selected
Shows the current selected transport
mode.
Matrix
State of the connection to the matrix.
figure 11: info display
RSP-1216HL (no connection)
If the SmartPanel is connected to the matrix, the matrix status changes to 'RX/TX OK' before the default
view is displayed.
figure 12: RSP-1216HL (connected with matrix)
· The name (key label) of the corresponding channel is displayed above each lever key.
· The subtitle (16-char subtitle) of the corresponding channel is displayed in the second line.
