1200 Series SmartPanels 1.1 User Manual
01-000HB03EG-B00
2 RSP-1216HL SmartPanel
The unique feature set of Riedel's RSP-1232HL SmartPanel includes 3 high-resolution, sunlight readable,
multi-touch color displays and 16 lever keys including rotary encoders in 1RU.
·
16 lever keys
·
3 high-resolution, sunlight-readable displays
·
Integrated power supply
·
2 SFP slots
·
2 USB ports
·
2 Ethernet connectors
·
2 Matrix connectors (RJ45/BNC)
·
1 Expansion connector
·
NFC-/Bluetooth connectivity (future use)
·
1 Management connector (future use)
·
1 SD card slot
·
1 Displayport (future use)
·
3 GPI-In
·
3 GPI-Out
·
2 Analog audio
·
2 Headset connector (RJ45)
·
removable gooseneck microphone
·
internal microphone (future use)
·
Light Sensor (future use)
·
exchangeable Headset connector (mono/stereo)
·
1RU
2.1
Operating Elements

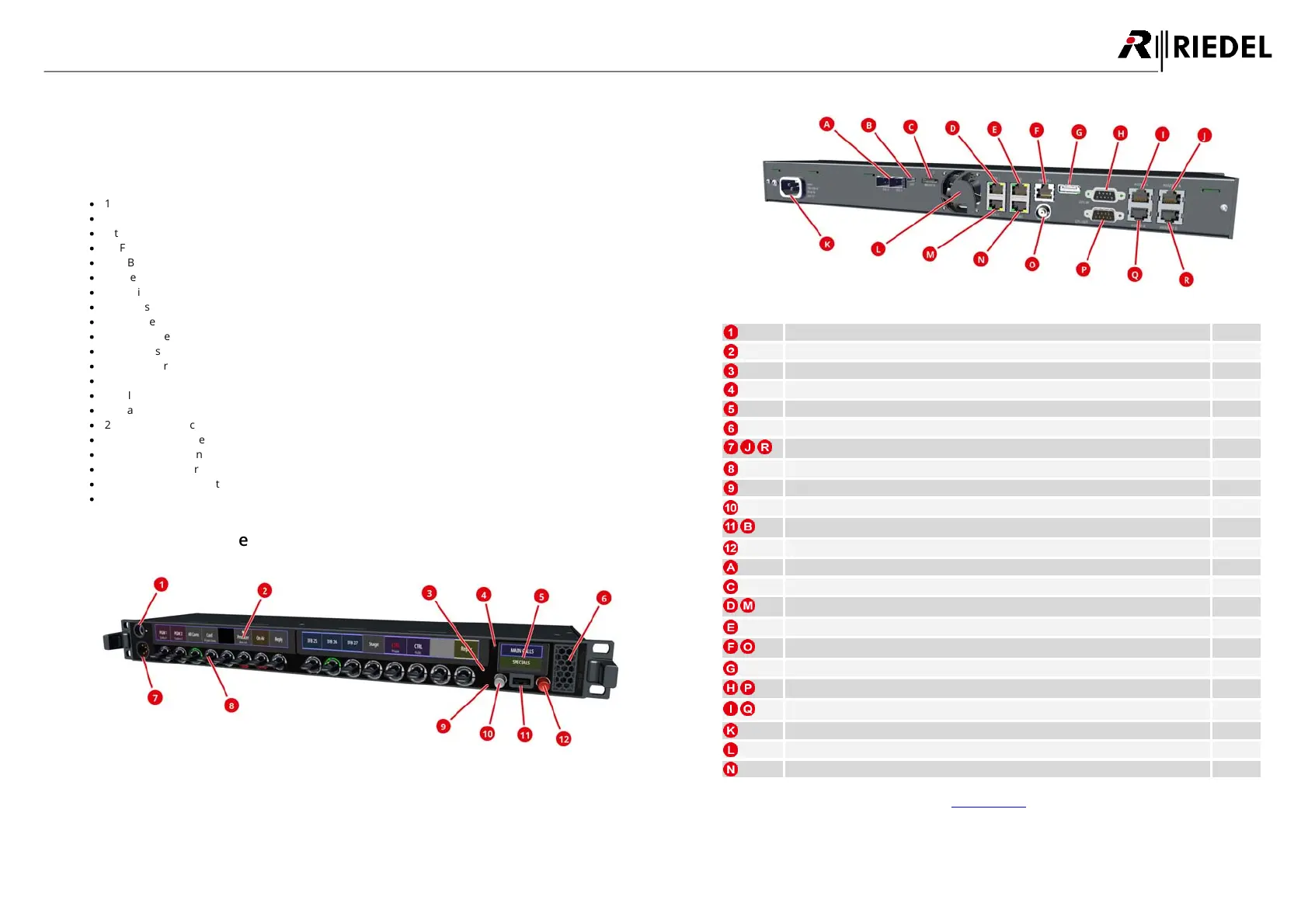

figure 6: front view (RSP-1216HL)
figure 7: rear view (RSP-1216HL)
Panel Microphone Connector (6.3 mm jack)
Key-Displays (Touchscreen)
Light Sensor (future use)
NFC Antenna / Bluetooth-Antenna (future use)
Info-Display (Touchscreen)
Headset Connectors (front: XLR / rear: RJ45)
Lever Keys with integrated Rotary Encoders with push functionality
Internal Panel Microphone (future use)
Rotary Encoder (left, grey, sidetone) with push functionality
USB Connectors (front: Type-A / rear: Type-C)
Rotary Encoder (right, red, volume) with push functionality
Ethernet Connectors ETH1/ETH2 (RJ45)
Expansion Connector EXP (RJ45)
Matrix Connectors (AES3, RJ45/BNC)
Displayport DP (future use)
GPI Inputs / GPI Outputs (D-Sub-9, female/male)
Analog Audio A/B Inputs / Outputs (RJ45)
Power Supply (mains input)
Fan (temperature controlled)
Management Connector MGNT (RJ45, future use)
All Ports and Pinouts can be found in chapter Ports / Pinouts.
