Riello G5 - ELECTRICAL WIRING; WIRING, TESTING AND SAFETY

5
20013752
GB

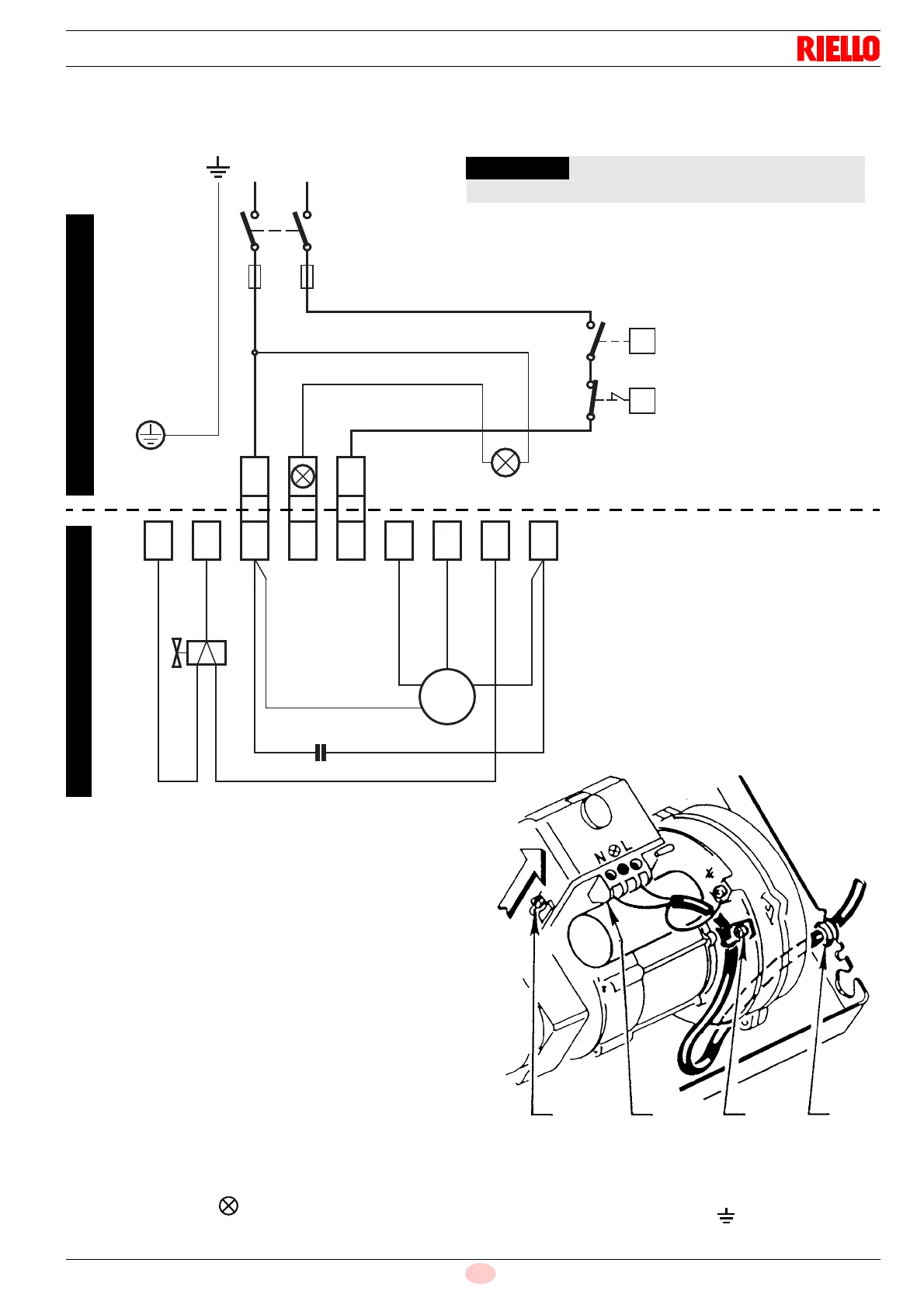

ELECTRICAL WIRING
Brown
White (50V)
Blue
Motor
Capacitor
Regulating thermostat
Neutral
Switch with fuse
6A max.
N L
M
~
S7026
Black
NOTES
– Wires of 1 mm
2
section.
– The electrical wiring carried out by the installer
must be in compliance with the rules in force in
the Country.
– To remove the control-box from the burner,
loosen screw (A) (see figure) and pull towards
the arrow.
– The photoresistance is fitted directly into the con-
trol-box (underneath the ignition-transformer) on
a plug-in support.
TESTING
Check the shut-down of the burner by opening the
thermostats.
ATTENTION
Do not connect burner’s grounding, to failure
indicator terminal . This may result the destroy
of the control box.
WARNING
Do not exchange the neutral with the phase.
230V ~ 50Hz
NL
Limit thermostat
with manual resetting
Remote lock-out lamp
(230V - 0.5A max.), if required
123456789
Blue
Brown
Terminal block of
control-box 530SE
*
Valve
T
T
RUN OF THE ELECTRICAL CABLE
1 - Grommet N - Neutral
2 - Cable-clamp L - Phase
3 - Terminal block - Burner-earth
A321
D5228
Black
CARRIED-OUT BY THE INSTALLER
CARRIED-OUT IN THE FACTORY
